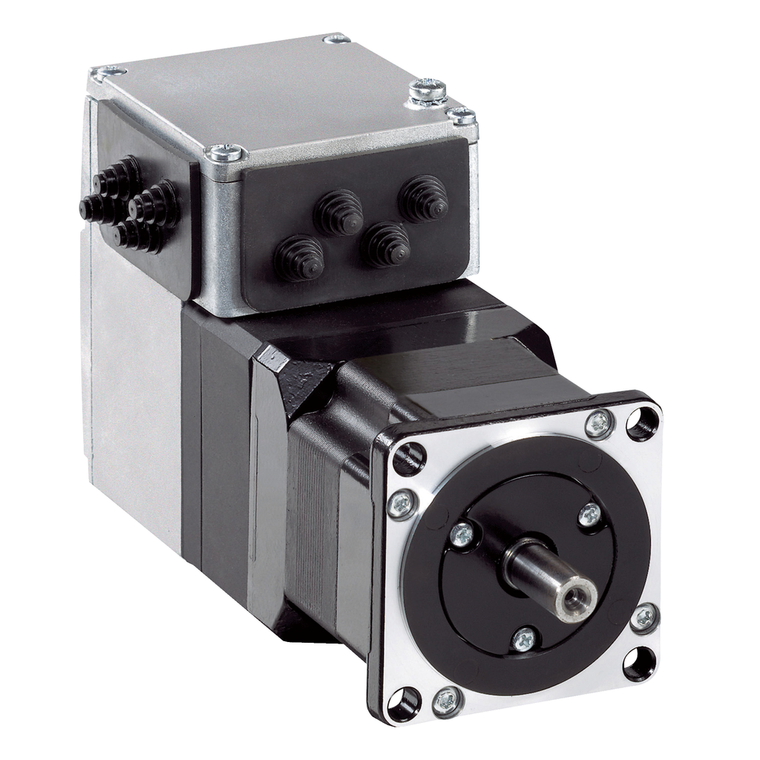

Schneider Electric ILA2K572TB2A0 Lexium Ila Servomot 24 48V Eth Ip Multit

SKU:

ILA2K572TB2A0

UPC:

3606485204635

MPN:

Condition:

New

Communication Interface:

Ethernet/IP, Integrated

Shaft Diameter:

9 mm

Pvc Free:

Yes

Standards:

IEC 50178 || IEC 61800-3, Ed 2 || EN 61800-3:2001, second environment || IEC 61800-3 || IEC 60072-1 || EN 61800-3 : 2001-02 || IEC 50347

Length:

207.8 mm

Ip Degree Of Protection:

shaft bushing IP41 IEC 60034-5 || total except shaft bushing IP54 IEC 60034-5

Environmental Disclosure:

ENVPEP2011004EN

Holding Brake:

without

Shaft Length:

20 mm

Mounting Support:

flange

Speed Feedback Resolution:

16384 points/turn x 4096 turns

Motor Type:

AC Synchronous Servo Motor

[Us] Rated Supply Voltage:

24 V || 48 V

Mounting Holes Diameter:

5.2 mm

Current Consumption:

7500 mA maximum continuous || 9000 mA peak

Net Weight:

1.7 kg

Ambient Air Temperature For Operation:

40-55 °C with power derating of 2 % per °C) || 0-40 °C without derating)

Electrical Connection:

printed circuit board connector

Commissioning Interface:

RS485 Modbus TCP 9.6, 19.2 and 38.4 kbauds)

Sustainable Offer Status:

Green Premium product

Discrete Input Current:

10-10 mA at 24 V safety input || 2-2 mA at 24 V 24 V signal interface

Continuous Stall Torque:

0.57 N.m

Feedback Type:

multi turn encoder

Rohs Exemption Information:

Yes

Gear Box Type:

without

Number Of Motor Poles:

6

Transmission Rate:

125, 250, 500 kbauds

China Rohs Regulation:

X

Mercury Free:

Yes

Maximum Switching Current:

100 mA per output || 200 mA total

Shaft End:

untapped

Number Of Motor Stacks:

2

Device Short Name:

ILA

Warranty:

18 months

Peak Stall Torque:

0.85 N.m

Service Life In Hours:

20000 h bearing

Maximum Radial Force Fr:

107 N

Ambient Air Temperature For Storage:

-25-70 °C

Circularity Profile:

ENVEOLI2011004EN

Product Or Component Type:

motion integrated drive

Voltage State 1 Guaranteed:

15...30 V

Supply Voltage Limits:

18-55.2 V

Weee:

The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.

Second Shaft:

without second shaft end

Centring Collar Depth:

1.6 mm

Centring Collar Diameter:

50 mm

Associated Fuse Rating:

16 A

Range Of Product:

Lexium integrated drive

Circle Diameter Of The Mounting Holes:

66.6 mm

Marking:

CE

Product Certifications:

UL || cUL || TÜV

Network Type:

DC

Vibration Resistance:

20 m/s² 10-500 Hz) 10 cycles IEC 60068-2-6

Voltage State 0 Guaranteed:

-3...4.5 V

Motor Flange Size:

57 mm

California Proposition 65:

WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov

Relative Humidity:

15-85 % without condensation

Input/Output Type:

4 signals (each be used as input or output)

Permissible Ambient Air Temperature Around The Device:

105 °C power amplifier || 110 °C motor

Eu Rohs Directive:

Pro-active compliance (Product out of EU RoHS legal scope)

Nominal Speed:

3000 rpm 24 V || 5100 rpm 48 V

Maximum Axial Force Fa:

104 N force pressure) || 104 N tensile force)

Winding Type:

high speed of rotation and medium torque

Discrete Output Voltage:

23...25 V

Reach Regulation:

Reference contains Substances of Very High Concern above the threshold

Phase:

single phase

Operating Altitude:

<= 3280.84 ft (1000 m) without derating

Type Of Cooling:

natural convection

Shock Resistance:

150 m/s² 1000 shocks IEC 60068-2-29

Rotor Inertia:

0.173 kg.cm²

Number Of Mounting Holes:

4

Protection Type:

short circuit of the output voltage || safe torque off || overload of output voltage

Accuracy Error:

+/- 0.05 °

Nominal Torque:

0.57 N.m
