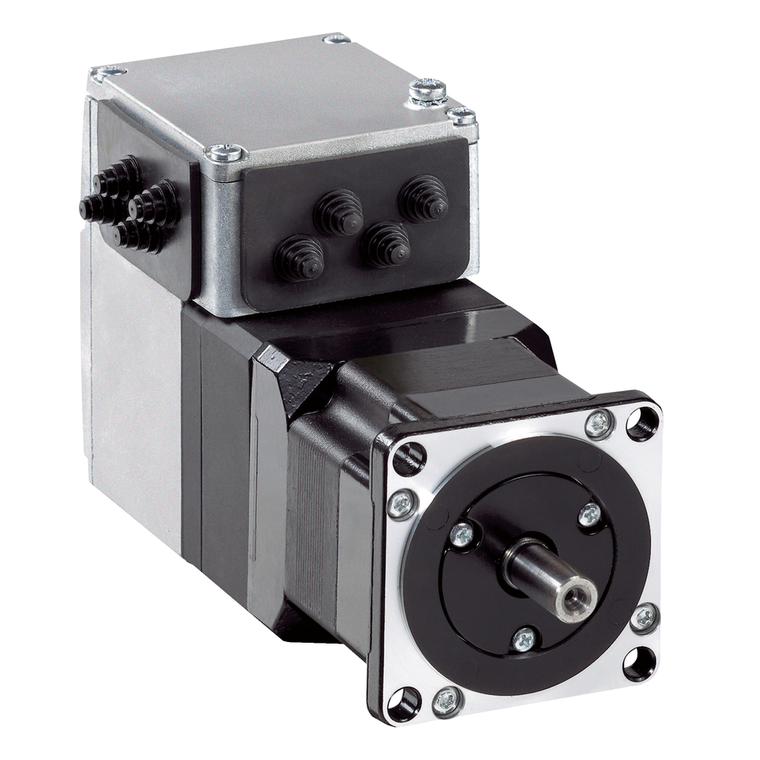

Schneider Electric ILA2T572PC2A0 Lexium Ila Servomot 24 48V Modtcp Multit

SKU:

ILA2T572PC2A0

UPC:

3.60649E+12

MPN:

Condition:

New

Electrical Connection:

industrial connector

Discrete Input Current:

10-10 mA at 24 V safety input || 2-2 mA at 24 V 24 V signal interface

Circle Diameter Of The Mounting Holes:

66.6 mm

Associated Fuse Rating:

16 A

Centring Collar Depth:

1.6 mm

Continuous Stall Torque:

0.78 N.m

Motor Type:

AC Synchronous Servo Motor

Nominal Speed:

1600 rpm 24 V || 3400 rpm 48 V

Commissioning Interface:

RS485 Modbus TCP 9.6, 19.2 and 38.4 kbauds)

Shaft Length:

20 mm

Gear Box Type:

without

Warranty:

18 months

Service Life In Hours:

20000 h bearing

Accuracy Error:

+/- 0.05 °

Mounting Support:

flange

Product Or Component Type:

motion integrated drive

Holding Brake:

without

Mounting Holes Diameter:

5.2 mm

[Us] Rated Supply Voltage:

24 V || 48 V

Sustainable Offer Status:

Green Premium product

Feedback Type:

multi turn encoder

Environmental Disclosure:

ENVPEP2011004EN

Supply Voltage Limits:

18-55.2 V

Centring Collar Diameter:

50 mm

Number Of Motor Stacks:

2

Relative Humidity:

15-85 % without condensation

Product Certifications:

TÜV || cUL || UL

Pvc Free:

Yes

Type Of Cooling:

natural convection

Circularity Profile:

ENVEOLI2011004EN

Mercury Free:

Yes

Eu Rohs Directive:

Pro-active compliance (Product out of EU RoHS legal scope)

Phase:

single phase

Voltage State 1 Guaranteed:

15...30 V

Network Type:

DC

Input/Output Type:

4 signals (each be used as input or output)

Discrete Output Voltage:

23...25 V

Motor Flange Size:

57 mm

Number Of Motor Poles:

6

Number Of Mounting Holes:

4

Second Shaft:

without second shaft end

Operating Altitude:

<= 3280.84 ft (1000 m) without derating

Rohs Exemption Information:

Yes

Communication Interface:

Modbus TCP, Integrated

Device Short Name:

ILA

Weee:

The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.

Shaft Diameter:

9 mm

Rotor Inertia:

0.173 kg.cm²

California Proposition 65:

WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov

Peak Stall Torque:

1.62 N.m

Shock Resistance:

150 m/s² 1000 shocks IEC 60068-2-29

Maximum Axial Force Fa:

104 N force pressure) || 104 N tensile force)

Standards:

IEC 61800-3, Ed 2 || IEC 61800-3 || IEC 50178 || EN 61800-3:2001, second environment || IEC 60072-1 || IEC 50347 || EN 61800-3 : 2001-02

Ambient Air Temperature For Storage:

-25-70 °C

Transmission Rate:

10, 100 Mbits

Current Consumption:

7000 mA maximum continuous || 8500 mA peak

Length:

207.8 mm

Reach Regulation:

Reference contains Substances of Very High Concern above the threshold

Voltage State 0 Guaranteed:

-3...4.5 V

Permissible Ambient Air Temperature Around The Device:

105 °C power amplifier || 110 °C motor

Ambient Air Temperature For Operation:

40-55 °C with power derating of 2 % per °C) || 0-40 °C without derating)

Net Weight:

1.7 kg

Marking:

CE

Speed Feedback Resolution:

16384 points/turn x 4096 turns

Range Of Product:

Lexium integrated drive

Vibration Resistance:

20 m/s² 10-500 Hz) 10 cycles IEC 60068-2-6

Maximum Radial Force Fr:

107 N

Ip Degree Of Protection:

shaft bushing IP41 IEC 60034-5 || total except shaft bushing IP54 IEC 60034-5

China Rohs Regulation:

X

Shaft End:

untapped

Nominal Torque:

0.78 N.m

Maximum Switching Current:

100 mA per output || 200 mA total

Protection Type:

short circuit of the output voltage || safe torque off || overload of output voltage

Winding Type:

medium speed of rotation and medium torque
