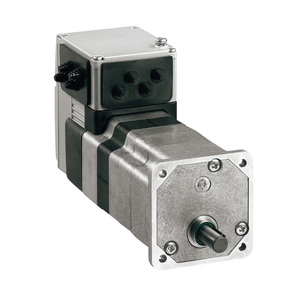

Schneider Electric ILE1F661PC1A0 Lexium Ile Bldc Mot 24 36V Canop

(No reviews yet) Write a Review

Write a Review

Schneider Electric ILE1F661PC1A0 Lexium Ile Bldc Mot 24 36V Canop

Rating Required Select Rating 1 star (worst) 2 stars 3 stars (average) 4 stars 5 stars (best)

Name

Email Required

Review Subject Required

Comments Required

SKU:

ILE1F661PC1A0

UPC:

3389119222396

MPN:

Condition:

New

Device Short Name:

ILE

Accuracy Error:

+/- 1 °

Detent Torque:

0.08 N.m

Electrical Connection:

industrial connector

Product Certifications:

TÜV || cUL || UL

Nominal Output Power:

117 W 36 V || 74 W 24 V

Phase:

single phase

Motor Flange Size:

66 mm

Circle Diameter Of The Mounting Holes:

73.54 mm

Speed Feedback Resolution:

12 points/turn

Voltage State 1 Guaranteed:

15...30 V

Peak Stall Torque:

0.26 N.m 24 V || 0.36 N.m 36 V

Input/Output Type:

4 signals (each be used as input or output)

Sustainable Offer Status:

Green Premium product

Ambient Air Temperature For Storage:

-25-70 °C

Reach Regulation:

Reference contains Substances of Very High Concern above the threshold

Current Consumption:

7000 mA peak || 5500 mA maximum continuous

Winding Type:

medium speed of rotation and medium torque

[Us] Rated Supply Voltage:

24 V || 36 V

Voltage State 0 Guaranteed:

-3...4.5 V

Net Weight:

1.4 kg

Type Of Cooling:

natural convection

Reduction Ratio:

0.0423611111111111

Number Of Motor Poles:

6

California Proposition 65:

WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov

Shaft End:

untapped

Shaft Length:

25 mm

Protection Type:

safe torque off || short circuit of the output voltage || overload of output voltage

Mounting Support:

flange

Maximum Switching Current:

100 mA per output || 200 mA total

Centring Collar Depth:

2 mm

Gear Box Type:

without

Vibration Resistance:

20 m/s² 10-500 Hz) 10 cycles IEC 60068-2-6

Ip Degree Of Protection:

shaft bushing IP41 IEC 60034-5 || total except shaft bushing IP54 IEC 60034-5

Feedback Type:

BLDC encoder

Maximum Supply Current:

0.06 A 36 V power stage disabled) || 0.1 A 24 V power stage disabled) || 4.7 A 24 V || 5.1 A 36 V

Permissible Ambient Air Temperature Around The Device:

105 °C power amplifier || 110 °C motor

Eu Rohs Directive:

Pro-active compliance (Product out of EU RoHS legal scope)

Continuous Stall Torque:

0.27 N.m

China Rohs Regulation:

X

Centring Collar Diameter:

40 mm

Transmission Rate:

50, 100, 125, 250, 500, 800 and 1000 kbauds

Warranty:

18 months

Environmental Disclosure:

ENVPEP2011005EN

Operating Altitude:

<= 3280.84 ft (1000 m) without derating

Pvc Free:

Yes

Service Life In Hours:

20000 h bearing

Product Or Component Type:

motion integrated drive

Nominal Torque:

0.175 N.m 24 V || 0.24 N.m 36 V

Number Of Motor Stacks:

1

Associated Fuse Rating:

0.416666666666667

Circularity Profile:

ENVEOLI2011005EN

Relative Humidity:

15-85 % without condensation

Network Type:

DC

Communication Interface:

CANopen DS301, Integrated

Number Of Mounting Holes:

4

Holding Brake:

without

Shock Resistance:

150 m/s² 1000 shocks IEC 60068-2-29

Mounting Holes Diameter:

4.4 mm

Rotor Inertia:

0.149 kg.cm²

Motor Type:

brushless DC motor

Mercury Free:

Yes

Length:

122 mm

Range Of Product:

Lexium integrated drive

Maximum Radial Force Fr:

80 N

Discrete Output Voltage:

23...25 V

Second Shaft:

without second shaft end

Maximum Mechanical Speed:

5000 rpm

Rohs Exemption Information:

Yes

Standards:

IEC 50347 || IEC 61800-3 || EN 61800-3 : 2001-02 || EN 61800-3:2001, second environment || IEC 60072-1 || IEC 50178 || IEC 61800-3, Ed 2

Maximum Axial Force Fa:

30 N force pressure) || 30 N tensile force)

Weee:

The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.

Ambient Air Temperature For Operation:

50-65 °C with power derating of 2 % per °C) || 0-50 °C without derating)

Nominal Speed:

4000 rpm 24 V || 4800 rpm 36 V

Discrete Input Current:

10-10 mA at 24 V on/STO_A safety input || 3-3 mA at 24 V on/STO_B safety input || 2-2 mA at 24 V 24 V signal interface

Supply Voltage Limits:

18-40 V

Shaft Diameter:

8 mm

Marking:

CE
