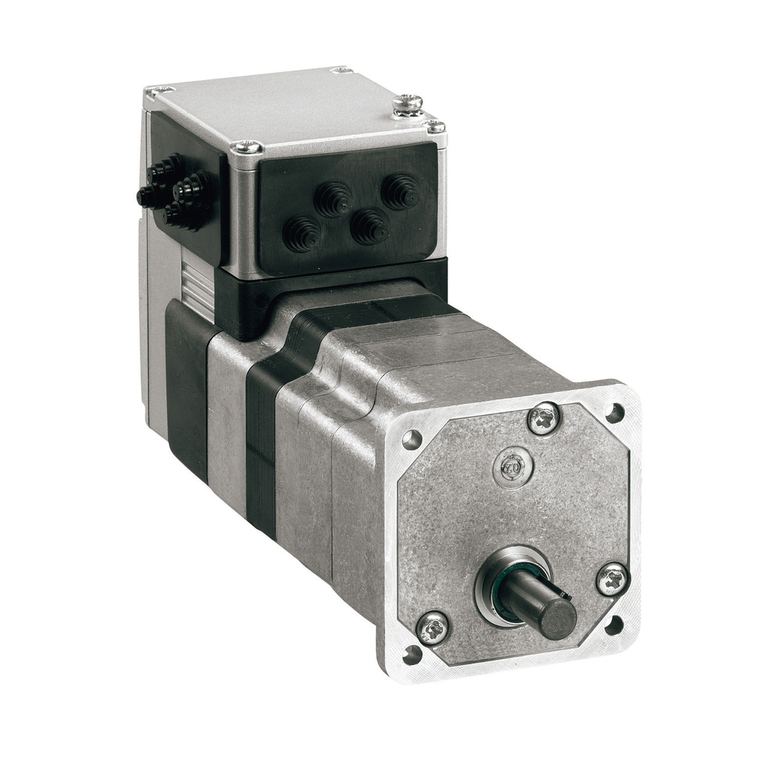

Schneider Electric ILE1R661PB1A8 Lexium Ile Bldc Mot 24 36V Rs485 Gear
SKU:
ILE1R661PB1A8
UPC:
3389119222563
MPN:
Condition:
New
Detent Torque:
16.7 N.m
Reach Regulation:
Reference contains Substances of Very High Concern above the threshold
Product Or Component Type:
motion integrated drive
Transmission Rate:
9.6, 19.2 and 38.4 kbauds
Current Consumption:
7000 mA peak || 5500 mA maximum continuous
California Proposition 65:
WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
Number Of Motor Poles:
6
Length:
229 mm
Speed Feedback Resolution:
12 points/turn motor || 0.26° gearbox output
Communication Interface:
RS485, Integrated
Peak Stall Torque:
14.95 N.m 24 V || 20.7 N.m 36 V
Net Weight:
2.3 kg
Shock Resistance:
150 m/s² 1000 shocks IEC 60068-2-29
Eu Rohs Directive:
Pro-active compliance (Product out of EU RoHS legal scope)
Reduction Ratio:
115:1 (3675:32)
Range Of Product:
Lexium integrated drive
Maximum Mechanical Speed:
44 rpm
Ambient Air Temperature For Operation:
50-65 °C with power derating of 2 % per °C) || 0-50 °C without derating)
China Rohs Regulation:
X
Marking:
CE
Relative Humidity:
15-85 % without condensation
Product Certifications:
TÃV || UL || cUL
Holding Brake:
without
Ambient Air Temperature For Storage:
-25-70 °C
Nominal Speed:
35 rpm 24 V || 35 rpm 36 V
Number Of Mounting Holes:
2
Maximum Axial Force Fa:
80 N
Maximum Torsional Backlash:
1 °
Standards:
IEC 60072-1 || EN 61800-3 : 2001-02 || IEC 50347 || IEC 61800-3, Ed 2 || EN 61800-3:2001, second environment || IEC 61800-3 || IEC 50178
Maximum Radial Force Fr:
200 N
Motor Flange Size:
66 mm
Voltage State 1 Guaranteed:
15...30 V
Input/Output Type:
4 signals (each be used as input or output)
Vibration Resistance:
20 m/s² 10-500 Hz) 10 cycles IEC 60068-2-6
Nominal Output Power:
37 W 24 V || 39 W 36 V
Winding Type:
medium speed of rotation and medium torque
[Us] Rated Supply Voltage:
24 V || 36 V
Number Of Motor Stacks:
1
Discrete Input Current:
10-10 mA at 24 V on/STO_A safety input || 3-3 mA at 24 V on/STO_B safety input || 2-2 mA at 24 V 24 V signal interface
Rotor Inertia:
1980 kg.cm²
Mounting Holes Diameter:
4.4 mm
Weee:
The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
Second Shaft:
without second shaft end
Centring Collar Diameter:
36 mm
Nominal Torque:
10.2 N.m 24 V || 10.6 N.m 36 V
Shaft End:
hole
Gear Box Type:
worm gear, 3 stages
Warranty:
18 months
Permissible Ambient Air Temperature Around The Device:
105 °C power amplifier || 110 °C motor
Device Short Name:
ILE
Phase:
single phase
Type Of Cooling:
natural convection
Mercury Free:
Yes
Operating Altitude:
<= 3280.84 ft (1000 m) without derating
Electrical Connection:
printed circuit board connector
Mounting Support:
flange
Maximum Supply Current:
0.1 A power stage disabled) || 6.8 A 24 V || 3.8 A 36 V
This product is part of the Lexium ILE range, an offer of integrated motion drives for motion control. The motion integrated drive with a 6-pole brushless DC motor features an integrated CANopen...
