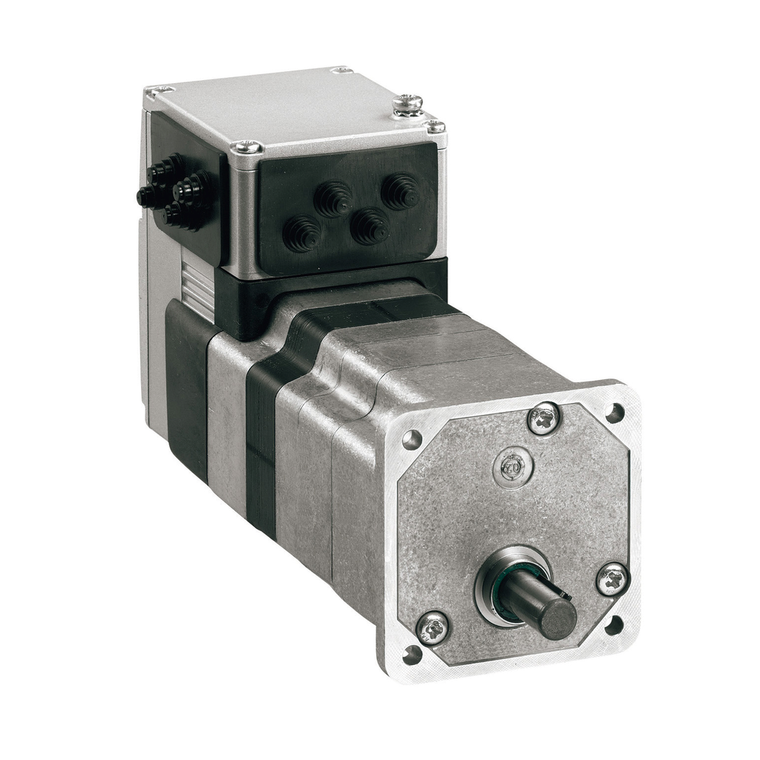

Schneider Electric ILE2E661PC1A0 Lexium Ile Bldc Mot 24 48V Ethcat

SKU:

ILE2E661PC1A0

UPC:

3606485188881

MPN:

Condition:

New

China Rohs Regulation:

X

Detent Torque:

0.08 N.m

Shock Resistance:

150 m/s² 1000 shocks IEC 60068-2-29

Weee:

The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.

Net Weight:

1.4 kg

Maximum Switching Current:

100 mA per output || 200 mA total

Maximum Mechanical Speed:

7000 rpm || 6500 rpm

Number Of Motor Stacks:

1

Motor Type:

brushless DC motor

Reach Regulation:

Reference contains Substances of Very High Concern above the threshold

Discrete Output Voltage:

23...25 V

Accuracy Error:

+/- 0.5 °

Shaft Diameter:

8 mm

Protection Type:

safe torque off || overload of output voltage || short circuit of the output voltage

Vibration Resistance:

20 m/s² 10-500 Hz) 10 cycles IEC 60068-2-6

Mercury Free:

Yes

Transmission Rate:

100 Mbits

Discrete Input Current:

10-10 mA at 24 V on/STO_A safety input || 3-3 mA at 24 V on/STO_B safety input || 2-2 mA at 24 V 24 V signal interface

California Proposition 65:

WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov

Sustainable Offer Status:

Green Premium product

Maximum Axial Force Fa:

30 N force pressure) || 30 N tensile force)

Electrical Connection:

industrial connector

Maximum Supply Current:

0.1 A power stage disabled) || 6.8 A 24 V || 3.8 A 48 V

Associated Fuse Rating:

16 A

Winding Type:

medium speed of rotation and medium torque

Range Of Product:

Lexium integrated drive

Device Short Name:

ILE

Motor Flange Size:

66 mm

Gear Box Type:

without

Input/Output Type:

4 signals (each be used as input or output)

Eu Rohs Directive:

Pro-active compliance (Product out of EU RoHS legal scope)

Service Life In Hours:

20000 h bearing

Shaft End:

untapped

Permissible Ambient Air Temperature Around The Device:

105 °C power amplifier || 110 °C motor

Feedback Type:

BLDC encoder

Supply Voltage Limits:

18-55.2 V

Rotor Inertia:

0.17 kg.cm²

Voltage State 0 Guaranteed:

-3...4.5 V

[Us] Rated Supply Voltage:

48 V || 24 V

Product Certifications:

UL || cUL || TÜV

Maximum Radial Force Fr:

80 N

Number Of Motor Poles:

6

Reduction Ratio:

0.0423611111111111

Mounting Holes Diameter:

4.4 mm

Number Of Mounting Holes:

4

Length:

122 mm

Pvc Free:

Yes

Nominal Output Power:

131 W 24 V || 163 W 48 V

Type Of Cooling:

natural convection

Rohs Exemption Information:

Yes

Network Type:

DC

Circle Diameter Of The Mounting Holes:

73.54 mm

Second Shaft:

without second shaft end

Ambient Air Temperature For Storage:

-25-70 °C

Marking:

CE

Circularity Profile:

ENVEOLI2011005EN

Nominal Torque:

0.26 N.m 24 V || 0.26 N.m 48 V

Current Consumption:

7000 mA peak || 5500 mA maximum continuous

Warranty:

18 months

Commissioning Interface:

RS485 Modbus TCP 9.6, 19.2 and 38.4 kbauds)

Nominal Speed:

4800 rpm 24 V || 6000 rpm 48 V

Phase:

single phase

Peak Stall Torque:

0.43 N.m 24 V || 0.43 N.m 48 V

Ip Degree Of Protection:

shaft bushing IP41 IEC 60034-5 || total except shaft bushing IP54 IEC 60034-5

Speed Feedback Resolution:

12 points/turn

Shaft Length:

25 mm

Continuous Stall Torque:

0.28 N.m

Relative Humidity:

15-85 % without condensation

Standards:

IEC 61800-3 || EN 61800-3:2001, second environment || IEC 60072-1 || IEC 61800-3, Ed 2 || IEC 50347 || EN 61800-3 : 2001-02 || IEC 50178

Operating Altitude:

<= 3280.84 ft (1000 m) without derating

Voltage State 1 Guaranteed:

15...30 V

Centring Collar Depth:

2 mm

Ambient Air Temperature For Operation:

40-55 °C with power derating of 2 % per °C) || 0-40 °C without derating)

Product Or Component Type:

motion integrated drive

Environmental Disclosure:

ENVPEP2011005EN

Communication Interface:

EtherCAT, Integrated

Centring Collar Diameter:

40 mm

Holding Brake:

without

Mounting Support:

flange
