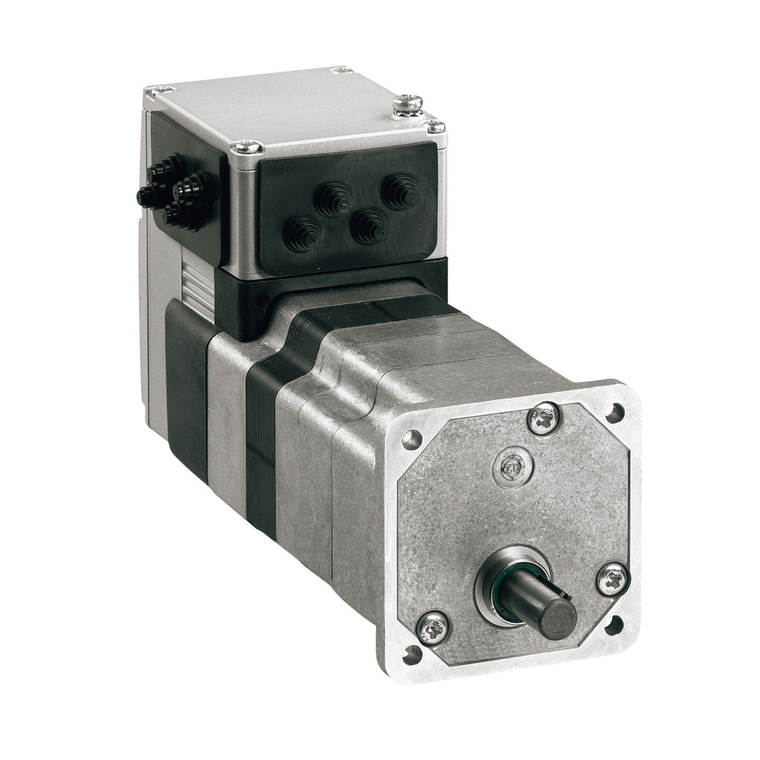

Schneider Electric ILE2K661PC1A0 Lexium Ile Bldc Mot 24 48V Eth Ip

SKU:

ILE2K661PC1A0

UPC:

3.60649E+12

MPN:

Condition:

New

Length:

122 mm

[Us] Rated Supply Voltage:

24 V || 48 V

Maximum Supply Current:

0.1 A power stage disabled) || 6.8 A 24 V || 3.8 A 48 V

Discrete Output Voltage:

23...25 V

Permissible Ambient Air Temperature Around The Device:

105 °C power amplifier || 110 °C motor

Mounting Support:

flange

Vibration Resistance:

20 m/s² 10-500 Hz) 10 cycles IEC 60068-2-6

Pvc Free:

Yes

Reduction Ratio:

0.0423611111111111

Transmission Rate:

125, 250, 500 kbauds

Shaft Diameter:

8 mm

Number Of Mounting Holes:

4

Accuracy Error:

+/- 0.5 °

Nominal Torque:

0.26 N.m 24 V || 0.26 N.m 48 V

Range Of Product:

Lexium integrated drive

Shaft End:

untapped

Circularity Profile:

ENVEOLI2011005EN

Winding Type:

medium speed of rotation and medium torque

Mounting Holes Diameter:

4.4 mm

Second Shaft:

without second shaft end

Number Of Motor Stacks:

1

Electrical Connection:

industrial connector

Standards:

EN 61800-3 : 2001-02 || IEC 50178 || EN 61800-3:2001, second environment || IEC 60072-1 || IEC 61800-3, Ed 2 || IEC 61800-3 || IEC 50347

Maximum Axial Force Fa:

30 N force pressure) || 30 N tensile force)

Nominal Speed:

4800 rpm 24 V || 6000 rpm 48 V

Gear Box Type:

without

Voltage State 1 Guaranteed:

15...30 V

Number Of Motor Poles:

6

Ambient Air Temperature For Storage:

-25-70 °C

Supply Voltage Limits:

18-55.2 V

Associated Fuse Rating:

16 A

Commissioning Interface:

RS485 Modbus TCP 9.6, 19.2 and 38.4 kbauds)

Protection Type:

safe torque off || overload of output voltage || short circuit of the output voltage

Voltage State 0 Guaranteed:

-3...4.5 V

Communication Interface:

Ethernet/IP, Integrated

Relative Humidity:

15-85 % without condensation

Network Type:

DC

Product Or Component Type:

motion integrated drive

Centring Collar Diameter:

40 mm

Environmental Disclosure:

ENVPEP2011005EN

Input/Output Type:

4 signals (each be used as input or output)

Holding Brake:

without

Weee:

The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.

Type Of Cooling:

natural convection

Peak Stall Torque:

0.43 N.m 24 V || 0.43 N.m 48 V

Maximum Radial Force Fr:

80 N

Eu Rohs Directive:

Pro-active compliance (Product out of EU RoHS legal scope)

Discrete Input Current:

10-10 mA at 24 V on/STO_A safety input || 3-3 mA at 24 V on/STO_B safety input || 2-2 mA at 24 V 24 V signal interface

Circle Diameter Of The Mounting Holes:

73.54 mm

Sustainable Offer Status:

Green Premium product

Rotor Inertia:

0.17 kg.cm²

Net Weight:

1.4 kg

Ambient Air Temperature For Operation:

40-55 °C with power derating of 2 % per °C) || 0-40 °C without derating)

Mercury Free:

Yes

Motor Flange Size:

66 mm

California Proposition 65:

WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov

Shaft Length:

25 mm

Ip Degree Of Protection:

shaft bushing IP41 IEC 60034-5 || total except shaft bushing IP54 IEC 60034-5

Current Consumption:

7000 mA peak || 5500 mA maximum continuous

Continuous Stall Torque:

0.28 N.m

Shock Resistance:

150 m/s² 1000 shocks IEC 60068-2-29

Service Life In Hours:

20000 h bearing

Detent Torque:

0.08 N.m

Marking:

CE

Reach Regulation:

Reference contains Substances of Very High Concern above the threshold

Phase:

single phase

Warranty:

18 months

Feedback Type:

BLDC encoder

Maximum Mechanical Speed:

7000 rpm || 6500 rpm

Operating Altitude:

<= 3280.84 ft (1000 m) without derating

Speed Feedback Resolution:

12 points/turn

Centring Collar Depth:

2 mm

Product Certifications:

cUL || UL || TÜV

Device Short Name:

ILE

Motor Type:

brushless DC motor

China Rohs Regulation:

X

Maximum Switching Current:

100 mA per output || 200 mA total

Nominal Output Power:

131 W 24 V || 163 W 48 V

Rohs Exemption Information:

Yes
