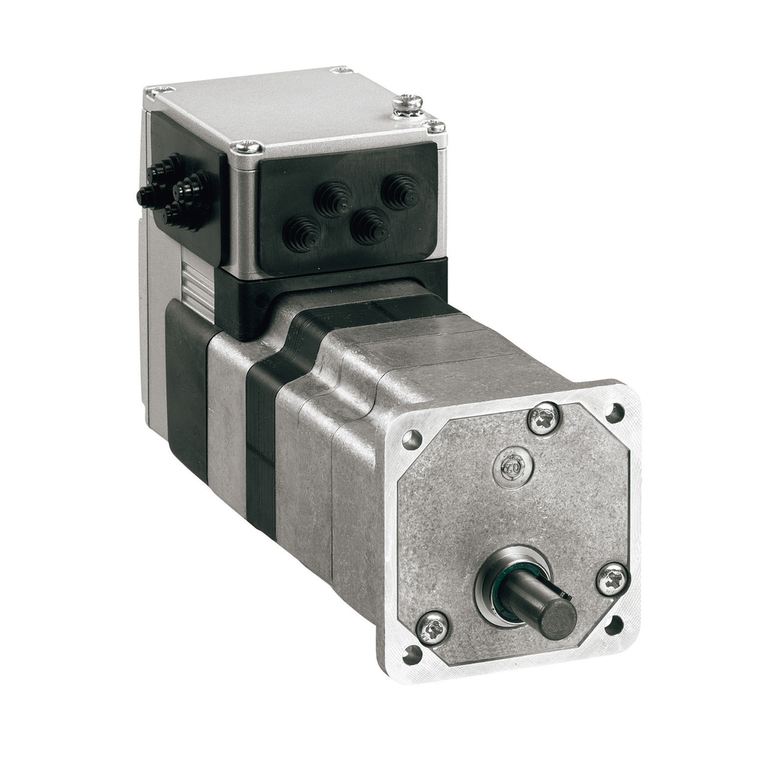

Schneider Electric ILE2K662PB1A0 Lexium Ile Bldc Mot 24 48V Eth Ip

SKU:

ILE2K662PB1A0

UPC:

3606485204857

MPN:

Condition:

New

Discrete Output Voltage:

23...25 V

Warranty:

18 months

Electrical Connection:

printed circuit board connector

Service Life In Hours:

20000 h bearing

China Rohs Regulation:

X

Pvc Free:

Yes

Communication Interface:

Ethernet/IP, Integrated

Second Shaft:

without second shaft end

Ambient Air Temperature For Operation:

40-55 °C with power derating of 2 % per °C) || 0-40 °C without derating)

Product Or Component Type:

motion integrated drive

Gear Box Type:

without

Shaft End:

untapped

Maximum Axial Force Fa:

30 N force pressure) || 30 N tensile force)

Phase:

single phase

Mounting Holes Diameter:

4.4 mm

Detent Torque:

0.106 N.m

Reach Regulation:

Reference contains Substances of Very High Concern above the threshold

Voltage State 0 Guaranteed:

-3...4.5 V

[Us] Rated Supply Voltage:

48 V || 24 V

Circle Diameter Of The Mounting Holes:

73.54 mm

Winding Type:

medium speed of rotation and medium torque

Net Weight:

1.75 kg

Maximum Mechanical Speed:

7000 rpm || 5000 rpm

Shaft Diameter:

8 mm

Mounting Support:

flange

Discrete Input Current:

10-10 mA at 24 V on/STO_A safety input || 3-3 mA at 24 V on/STO_B safety input || 2-2 mA at 24 V 24 V signal interface

Ambient Air Temperature For Storage:

-25-70 °C

Length:

140 mm

Product Certifications:

UL || TÜV || cUL

Peak Stall Torque:

0.8 N.m 24 V || 0.8 N.m 48 V

Motor Type:

brushless DC motor

Protection Type:

short circuit of the output voltage || safe torque off || overload of output voltage

Number Of Mounting Holes:

4

Weee:

The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.

Shock Resistance:

150 m/s² 1000 shocks IEC 60068-2-29

Marking:

CE

Environmental Disclosure:

ENVPEP2011005EN

Holding Brake:

without

Shaft Length:

25 mm

Network Type:

DC

Number Of Motor Poles:

6

Input/Output Type:

4 signals (each be used as input or output)

Nominal Speed:

3100 rpm 24 V || 5000 rpm 48 V

Centring Collar Depth:

2 mm

Maximum Switching Current:

100 mA per output || 200 mA total

Operating Altitude:

<= 3280.84 ft (1000 m) without derating

Mercury Free:

Yes

Nominal Torque:

0.5 N.m 24 V || 0.5 N.m 48 V

Eu Rohs Directive:

Pro-active compliance (Product out of EU RoHS legal scope)

Rotor Inertia:

0.34 kg.cm²

Centring Collar Diameter:

40 mm

Range Of Product:

Lexium integrated drive

Relative Humidity:

15-85 % without condensation

Rohs Exemption Information:

Yes

Feedback Type:

BLDC encoder

Speed Feedback Resolution:

12 points/turn

Supply Voltage Limits:

18-55.2 V

Vibration Resistance:

20 m/s² 10-500 Hz) 10 cycles IEC 60068-2-6

California Proposition 65:

WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov

Continuous Stall Torque:

0.54 N.m

Motor Flange Size:

66 mm

Ip Degree Of Protection:

shaft bushing IP41 IEC 60034-5 || total except shaft bushing IP54 IEC 60034-5

Standards:

IEC 50347 || IEC 50178 || IEC 61800-3, Ed 2 || IEC 60072-1 || EN 61800-3 : 2001-02 || IEC 61800-3 || EN 61800-3:2001, second environment

Nominal Output Power:

162 W 24 V || 262 W 48 V

Current Consumption:

7000 mA peak || 5500 mA maximum continuous

Maximum Supply Current:

0.1 A power stage disabled) || 7 A 48 V || 9.5 A 24 V

Associated Fuse Rating:

16 A

Permissible Ambient Air Temperature Around The Device:

105 °C power amplifier || 110 °C motor

Type Of Cooling:

natural convection

Number Of Motor Stacks:

2

Voltage State 1 Guaranteed:

15...30 V

Reduction Ratio:

0.0423611111111111

Transmission Rate:

125, 250, 500 kbauds

Sustainable Offer Status:

Green Premium product

Maximum Radial Force Fr:

80 N

Circularity Profile:

ENVEOLI2011005EN

Device Short Name:

ILE

Commissioning Interface:

RS485 Modbus TCP 9.6, 19.2 and 38.4 kbauds)

Accuracy Error:

+/- 0.5 °
