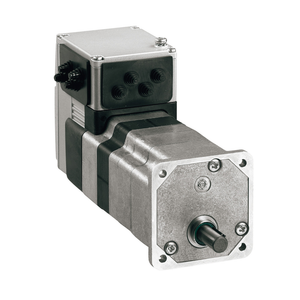

Schneider Electric ILE2T661PC1A0 Lexium Ile Bldc Mot 24 48V Modtcp

SKU:

ILE2T661PC1A0

UPC:

3606485189284

MPN:

Condition:

New

Speed Feedback Resolution:

12 points/turn

Voltage State 0 Guaranteed:

-3...4.5 V

Mounting Support:

flange

Service Life In Hours:

20000 h bearing

Voltage State 1 Guaranteed:

15...30 V

Shaft Diameter:

8 mm

Rohs Exemption Information:

Yes

Reach Regulation:

Reference contains Substances of Very High Concern above the threshold

Current Consumption:

7000 mA peak || 5500 mA maximum continuous

Vibration Resistance:

20 m/s² 10-500 Hz) 10 cycles IEC 60068-2-6

Warranty:

18 months

Ambient Air Temperature For Operation:

40-55 °C with power derating of 2 % per °C) || 0-40 °C without derating)

Ambient Air Temperature For Storage:

-25-70 °C

Nominal Output Power:

131 W 24 V || 163 W 48 V

Rotor Inertia:

0.17 kg.cm²

Maximum Switching Current:

100 mA per output || 200 mA total

Discrete Input Current:

10-10 mA at 24 V on/STO_A safety input || 3-3 mA at 24 V on/STO_B safety input || 2-2 mA at 24 V 24 V signal interface

Circle Diameter Of The Mounting Holes:

73.54 mm

Motor Flange Size:

66 mm

Detent Torque:

0.08 N.m

Communication Interface:

Modbus TCP, Integrated

Number Of Motor Stacks:

1

Mercury Free:

Yes

Environmental Disclosure:

ENVPEP2011005EN

Maximum Mechanical Speed:

6500 rpm || 7000 rpm

Weee:

The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.

Permissible Ambient Air Temperature Around The Device:

105 °C power amplifier || 110 °C motor

Net Weight:

1.4 kg

Operating Altitude:

<= 3280.84 ft (1000 m) without derating

Number Of Motor Poles:

6

Peak Stall Torque:

0.43 N.m 24 V || 0.43 N.m 48 V

China Rohs Regulation:

X

Range Of Product:

Lexium integrated drive

Standards:

EN 61800-3:2001, second environment || IEC 50178 || IEC 60072-1 || IEC 61800-3 || IEC 61800-3, Ed 2 || IEC 50347 || EN 61800-3 : 2001-02

Feedback Type:

BLDC encoder

Centring Collar Diameter:

40 mm

Circularity Profile:

ENVEOLI2011005EN

Commissioning Interface:

RS485 Modbus TCP 9.6, 19.2 and 38.4 kbauds)

Number Of Mounting Holes:

4

[Us] Rated Supply Voltage:

24 V || 48 V

Relative Humidity:

15-85 % without condensation

Associated Fuse Rating:

16 A

Ip Degree Of Protection:

shaft bushing IP41 IEC 60034-5 || total except shaft bushing IP54 IEC 60034-5

Pvc Free:

Yes

Nominal Speed:

4800 rpm 24 V || 6000 rpm 48 V

Transmission Rate:

10, 100 Mbits

Marking:

CE

Nominal Torque:

0.26 N.m 24 V || 0.26 N.m 48 V

Protection Type:

overload of output voltage || safe torque off || short circuit of the output voltage

Phase:

single phase

Motor Type:

brushless DC motor

Shock Resistance:

150 m/s² 1000 shocks IEC 60068-2-29

Discrete Output Voltage:

23...25 V

Type Of Cooling:

natural convection

Maximum Axial Force Fa:

30 N force pressure) || 30 N tensile force)

Length:

122 mm

Supply Voltage Limits:

18-55.2 V

Maximum Radial Force Fr:

80 N

Electrical Connection:

industrial connector

Reduction Ratio:

0.0423611111111111

Shaft Length:

25 mm

Network Type:

DC

Sustainable Offer Status:

Green Premium product

Device Short Name:

ILE

Centring Collar Depth:

2 mm

Winding Type:

medium speed of rotation and medium torque

Holding Brake:

without

California Proposition 65:

WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov

Accuracy Error:

+/- 0.5 °

Continuous Stall Torque:

0.28 N.m

Shaft End:

untapped

Second Shaft:

without second shaft end

Product Certifications:

TÜV || cUL || UL

Eu Rohs Directive:

Pro-active compliance (Product out of EU RoHS legal scope)

Mounting Holes Diameter:

4.4 mm

Product Or Component Type:

motion integrated drive

Input/Output Type:

4 signals (each be used as input or output)

Maximum Supply Current:

0.1 A power stage disabled) || 6.8 A 24 V || 3.8 A 48 V

Gear Box Type:

without
