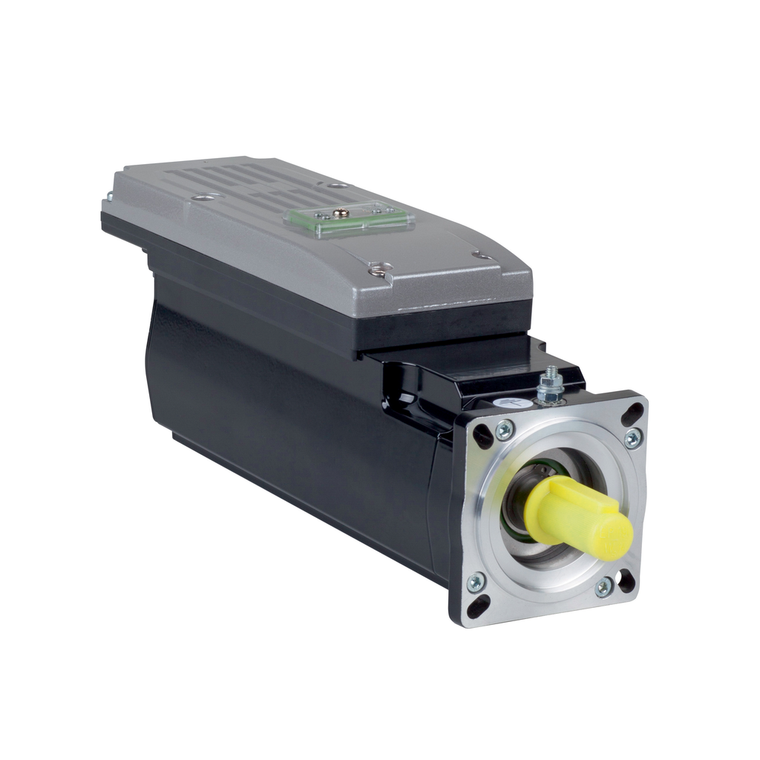

Schneider Electric ILM0703P01A0000 Ilm Servodrive 070.3 Sgl
Schneider Electric
$4,645.53
(No reviews yet)
Write a Review
Write a Review
Schneider Electric
Schneider Electric ILM0703P01A0000 Ilm Servodrive 070.3 Sgl
$1200 Minimum Order for Non-stock Items or $60 Addl Schneider Handling Fee Applies
This product is part of the PacDrive 3 range, an offer of integrated servo motors for machines from 0.31kW to 1.91kW. The 6-pole integrated servo motor features 3 stacks with a maximum mechanical speed of 6000RPM, a continuous rated stall torque 2.2Nm and smooth shaft. It is an equipped with a single-turn SinCos Hiperface® absolute encoder (128 periods per revolution) without holding brake. It is an integrated servo motor with a supply voltage of 250V to 700V, a continuous stall current of 3A and a maximum continuous power of 0.72kW. The shaft dimensions are 14mm (diameter) x 30mm (length). It is an IP54 rated product. The length of this product is 259mm and the centering collar dimensions are 2.5mm (depth) x 60mm (diameter) with 82mm mounting hole. It weighs 4.2kg. It is suitable for use in general machine control, packaging machine automation, material handling applications. It supports international standard 70mm flange mount with a natural convection cooling system. Lexium 62 ILM integrated servo modules can be controlled with all PacDrive LMC Eco and Pro/Pro 2 series motion controllers via SERCOS communication. Multiaxis integrated servo drives from 0.31kW to 1.91kW for automation solutions based on PacDrive 3.
- Ip Degree Of Protection:
- IP54
- Rotor Inertia:
- 0.58 kg.cm²
- [Us] Rated Supply Voltage:
- 250...700 V
- Centring Collar Depth:
- 2.5 mm
- Type Of Cooling:
- natural convection
- Continuous Stall Torque:
- 2.2 N.m
- Back Emf Constant:
- 49 V/krpm 20 °C
- Key Width:
- 20 mm
- Circle Diameter Of The Mounting Holes:
- 82 mm
- Product Or Component Type:
- servo motor integrated drive
- China Rohs Regulation:
- X
- Warranty:
- 18 months
- Maximum Radial Force Fr:
- 730 N 1000 rpm || 580 N 2000 rpm || 510 N 3000 rpm || 460 N 4000 rpm || 430 N 5000 rpm || 400 N 6000 rpm
- Nominal Speed:
- 6000 rpm
- Shaft End:
- untapped
- Shaft Diameter:
- 14 mm
- Reach Free Of Svhc:
- Yes
- Feedback Type:
- absolute single turn SinCos Hiperface
- Eu Rohs Directive:
- Pro-active compliance (Product out of EU RoHS legal scope)
- Length:
- 259 mm
- Holding Brake:
- without
- Number Of Motor Stacks:
- 3
- Rohs Exemption Information:
- Yes
- California Proposition 65:
- WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
- Nominal Torque:
- 1.15 N.m
- Stator Inductance:
- 13 mH 20 °C Ph/Ph || 6.5 mH 120 °C Ph/N
- Continuous Stall Current:
- 0.125
- Nominal Output Power:
- 720 W
- Number Of Motor Poles:
- 6
- Sustainable Offer Status:
- Green Premium product
- Environmental Disclosure:
- ENVPEP1409011EN
- Pvc Free:
- Yes
- Motor Flange Size:
- 70 mm
- Net Weight:
- 4.2 kg
- Maximum Axial Force Fa:
- 0.2 x Fr
- Circularity Profile:
- ENVEOLI1409011EN
- Centring Collar Diameter:
- 60 mm
- Range Of Product:
- PacDrive 3
- Mounting Holes Diameter:
- 5.5 mm
- Second Shaft:
- without second shaft end
- Device Short Name:
- ILM
- Torque Constant:
- 0.76 N.m/A 120 °C
- Line Rated Current:
- 1.5 A
- Mercury Free:
- Yes
- Mounting Support:
- international standard flange
- Reach Regulation:
- Free of Substances of Very High Concern above the threshold
- Maximum Current Irms:
- 0
- Stator Resistance:
- 2.7 Ohm 20 °C Ph/Ph || 1.88 Ohm 120 °C Ph/N
- Shaft Length:
- 30 mm
- Speed Feedback Resolution:
- 128 periods
- Peak Stall Torque:
- 8.7 N.m
- Number Of Mounting Holes:
- 4
- Catalog:
- View
- Datasheet:
- View
