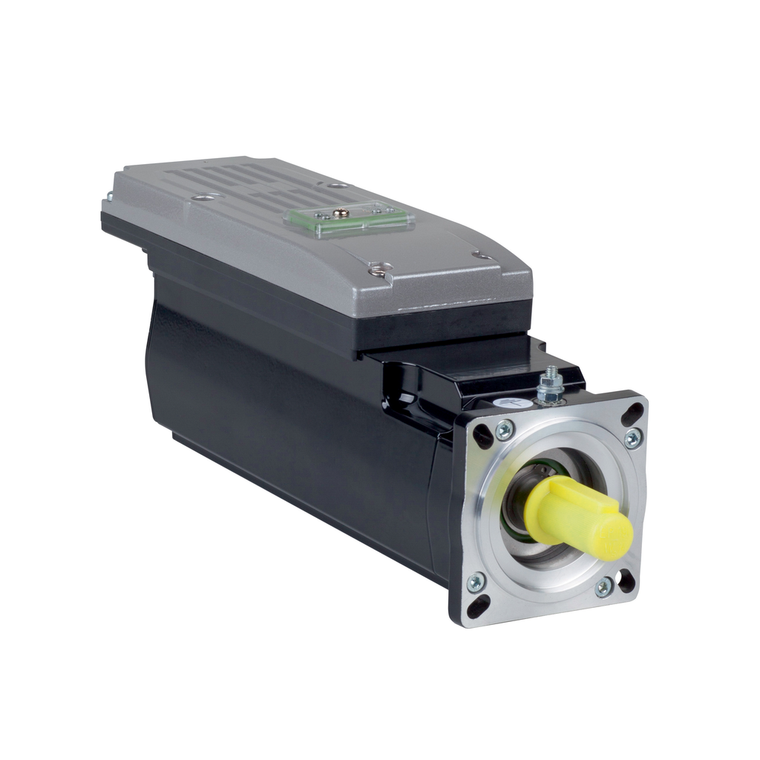

Schneider Electric ILM0703P31A0000 Ilm Servodrive 070.3 Key Ip65 Sgl

Schneider Electric ILM0703P31A0000 Ilm Servodrive 070.3 Key Ip65 Sgl

Schneider Electric
SKU:
ILM0703P31A0000
|
UPC:
3606485294032
Availability:
Contact us to confirm availability and lead times.
$4,749.58
Condition:
New
$1200 Minimum Order for Non-stock Items or $60 Addl Schneider Handling Fee Applies
Current Stock:
Description
This product is part of the PacDrive 3 range, an offer of integrated servo motors for machines from 0.31kW to 1.91kW. The 6-pole integrated servo motor features 3 stacks with a maximum mechanical speed of 6000RPM, a continuous rated stall torque 2.2Nm and IP65 parallel keyed. It is an equipped with a single-turn SinCos Hiperface® absolute encoder (128 periods per revolution) without holding brake. It is an integrated servo motor with a supply voltage of 250V to 700V, a continuous stall current of 3A and a maximum continuous power of 0.72kW. The shaft dimensions are 14mm (diameter) x 30mm (length). It is an IP65 rated product. The length of this product is 259mm and the centering collar dimensions are 2.5mm (depth) x 60mm (diameter) with 82mm mounting hole. It weighs 4.2kg. It is suitable for use in general machine control, packaging machine automation, material handling applications. It supports international standard 70mm flange mount with a natural convection cooling system. Lexium 62 ILM integrated servo modules can be controlled with all PacDrive LMC Eco and Pro/Pro 2 series motion controllers via SERCOS communication. Multiaxis integrated servo drives from 0.31kW to 1.91kW for automation solutions based on PacDrive 3.
Additional Information
China Rohs Regulation:
X
Maximum Axial Force Fa:
0.2 x Fr
Pvc Free:
Yes
Stator Inductance:
13 mH 20 °C Ph/Ph || 6.5 mH 120 °C Ph/N
Mercury Free:
Yes
Product Or Component Type:
servo motor integrated drive
Number Of Motor Stacks:
3
California Proposition 65:
WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
Stator Resistance:
2.7 Ohm 20 °C Ph/Ph || 1.88 Ohm 120 °C Ph/N
Shaft Diameter:
14 mm
Rotor Inertia:
0.58 kg.cm²
Continuous Stall Current:
0.125
Mounting Support:
international standard flange
Centring Collar Diameter:
60 mm
Range Of Product:
PacDrive 3
Warranty:
18 months
Feedback Type:
absolute single turn SinCos Hiperface
Line Rated Current:
1.5 A
Device Short Name:
ILM
Key Width:
20 mm
Motor Flange Size:
70 mm
Peak Stall Torque:
8.7 N.m
Second Shaft:
without second shaft end
Circle Diameter Of The Mounting Holes:
82 mm
Maximum Current Irms:
0
Shaft Length:
30 mm
Nominal Speed:
6000 rpm
Eu Rohs Directive:
Pro-active compliance (Product out of EU RoHS legal scope)
Number Of Motor Poles:
6
Torque Constant:
0.76 N.m/A 120 °C
Number Of Mounting Holes:
4
Net Weight:
4.2 kg
Shaft End:
keyed
Sustainable Offer Status:
Green Premium product
Back Emf Constant:
49 V/krpm 20 °C
Rohs Exemption Information:
Yes
Centring Collar Depth:
2.5 mm
Holding Brake:
without
Nominal Output Power:
720 W
Environmental Disclosure:
ENVPEP1409011EN
[Us] Rated Supply Voltage:
250...700 V
Mounting Holes Diameter:
5.5 mm
Length:
259 mm
Continuous Stall Torque:
2.2 N.m
Speed Feedback Resolution:
128 periods
Ip Degree Of Protection:
IP65
Type Of Cooling:
natural convection
Maximum Radial Force Fr:
730 N 1000 rpm || 580 N 2000 rpm || 510 N 3000 rpm || 460 N 4000 rpm || 430 N 5000 rpm || 400 N 6000 rpm
Reach Free Of Svhc:
Yes
Reach Regulation:
Free of Substances of Very High Concern above the threshold
Nominal Torque:
1.15 N.m
Circularity Profile:
ENVEOLI1409011EN
