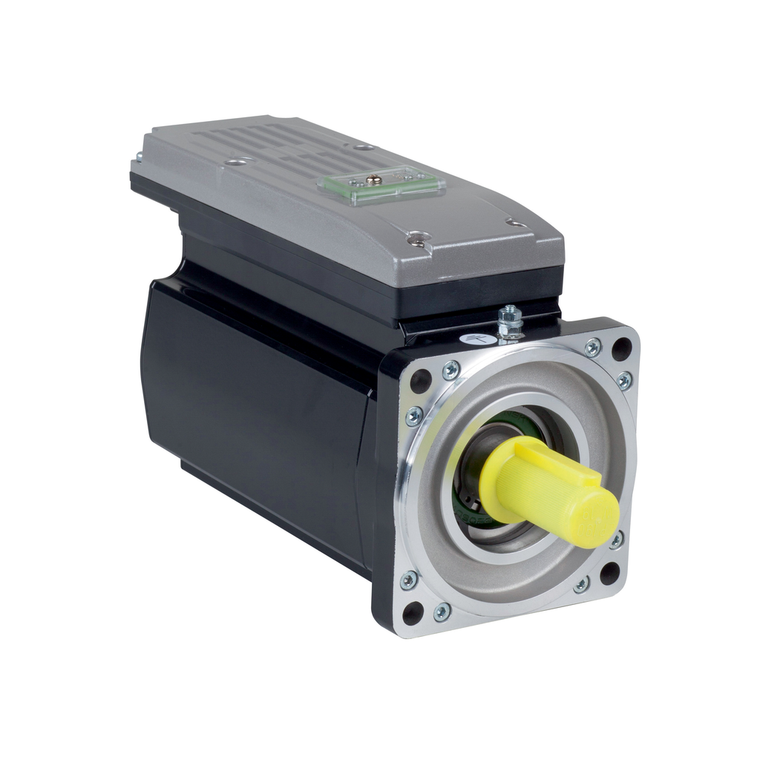

Schneider Electric ILM1003P32F0000 Ilm Servodrive 100.3 Key Ip65 Mlt Brk

(No reviews yet) Write a Review

Write a Review

Schneider Electric

Schneider Electric ILM1003P32F0000 Ilm Servodrive 100.3 Key Ip65 Mlt Brk

Rating Required Select Rating 1 star (worst) 2 stars 3 stars (average) 4 stars 5 stars (best)

Name

Email Required

Review Subject Required

Comments Required

SKU:

ILM1003P32F0000

UPC:

3.60649E+12

MPN:

Condition:

New

Continuous Stall Torque:

5.8 N.m

Nominal Speed:

3000 rpm

[Us] Rated Supply Voltage:

250...700 V

Motor Flange Size:

100 mm

Peak Stall Torque:

28.3 N.m

Mounting Support:

international standard flange

Range Of Product:

PacDrive 3

Shaft End:

keyed

Holding Torque:

9 N.m holding brake

Second Shaft:

without second shaft end

Key Width:

30 mm

Stator Inductance:

15.6 mH 20 °C Ph/Ph || 7.8 mH 120 °C Ph/N

Rotor Inertia:

3.92 kg.cm²

Number Of Mounting Holes:

4

Holding Brake:

with

Line Rated Current:

2.4 A

Stator Resistance:

2.6 Ohm 20 °C Ph/Ph || 1.81 Ohm 120 °C Ph/N

Length:

315 mm

Torque Constant:

1.61 N.m/A 120 °C

Nominal Torque:

3.5 N.m

Number Of Motor Poles:

8

Shaft Diameter:

19 mm

Feedback Type:

absolute multiturn SinCos Hiperface

Maximum Current Irms:

21.2 A

Back Emf Constant:

103 V/krpm 20 °C

Device Short Name:

ILM

Circle Diameter Of The Mounting Holes:

115 mm

China Rohs Regulation:

X

Environmental Disclosure:

ENVPEP1409011EN

Shaft Length:

40 mm

Reach Free Of Svhc:

Yes

Warranty:

18 months

Type Of Cooling:

natural convection

Maximum Axial Force Fa:

0.2 x Fr

Ip Degree Of Protection:

IP65

Product Or Component Type:

servo motor integrated drive

Sustainable Offer Status:

Green Premium product

Centring Collar Diameter:

95 mm

Pvc Free:

Yes

Mercury Free:

Yes

Mounting Holes Diameter:

9 mm

Continuous Stall Current:

3.6 A

Reach Regulation:

Free of Substances of Very High Concern above the threshold

Circularity Profile:

ENVEOLI1409011EN

Rohs Exemption Information:

Yes

Speed Feedback Resolution:

128 periods

Net Weight:

8.9 kg

California Proposition 65:

WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov

Nominal Output Power:

1100 W

Number Of Motor Stacks:

3

Maximum Radial Force Fr:

1050 N 1000 rpm || 830 N 2000 rpm || 730 N 3000 rpm

Centring Collar Depth:

3.5 mm

Eu Rohs Directive:

Pro-active compliance (Product out of EU RoHS legal scope)

Catalog:

View

Datasheet:

View
