Schneider Electric ILS1F852PB1A0 Lexium Ils Stepper Mot 24 36V Canop

(No reviews yet) Write a Review

Write a Review

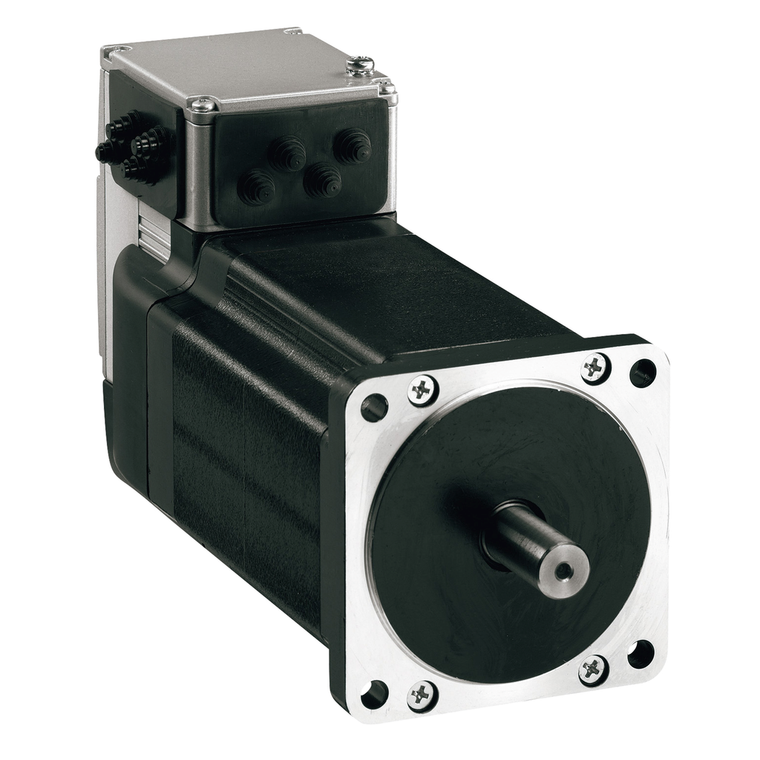

Schneider Electric ILS1F852PB1A0 Lexium Ils Stepper Mot 24 36V Canop

Rating Required Select Rating 1 star (worst) 2 stars 3 stars (average) 4 stars 5 stars (best)

Name

Email Required

Review Subject Required

Comments Required

SKU:

ILS1F852PB1A0

UPC:

3389119227148

MPN:

Condition:

New

Circularity Profile:

ENVEOLI1411002EN

Type Of Cooling:

natural convection

Motor Type:

3-phase stepper motor

Holding Brake:

without

Operating Altitude:

<= 3280.84 ft (1000 m) without derating

Input/Output Type:

4 signals (each be used as input or output)

Protection Type:

overload of output voltage || short circuit of the output voltage || safe torque off

Holding Torque:

4 N.m

Communication Interface:

CANopen DS301, Integrated

Shaft Diameter:

12 mm

Network Type:

DC

Length:

170.6 mm

Standards:

IEC 50347 || EN 61800-3:2001, second environment || EN 61800-3 : 2001-02 || IEC 61800-3, Ed 2 || IEC 61800-3 || IEC 60072-1 || IEC 50178

Relative Humidity:

15-85 % without condensation

Mounting Holes Diameter:

6.5 mm

Mounting Support:

flange 85 mm

Accuracy Error:

+/- 6 arc min

Continuous Stall Torque:

4 N.m

Maximum Switching Current:

100 mA per output || 200 mA total

Maximum Axial Force Fa:

170 N tensile force) || 30 N force pressure)

Shock Resistance:

150 m/s² 1000 shocks IEC 60068-2-29

Permissible Ambient Air Temperature Around The Device:

105 °C power amplifier || 110 °C motor

Transmission Rate:

50, 100, 125, 250, 500, 800 and 1000 kbauds

Peak Stall Torque:

4 N.m

Circle Diameter Of The Mounting Holes:

99 mm

Ambient Air Temperature For Operation:

50-65 °C with power derating of 2 % per °C) || 0-50 °C without derating)

Nominal Speed:

100 rpm 24 V || 200 rpm 36 V

Centring Collar Diameter:

60 mm

Centring Collar Depth:

2 mm

Current Consumption:

5000 mA maximum

China Rohs Regulation:

X

Warranty:

18 months

Maximum Radial Force Fr:

100 N

Pvc Free:

Yes

Net Weight:

3.6 kg

Service Life In Hours:

20000 h bearing

Product Certifications:

UL || cUL || TÜV

Gear Box Type:

without

[Us] Rated Supply Voltage:

24 V || 36 V

Sustainable Offer Status:

Green Premium product

Product Or Component Type:

motion integrated drive

Weee:

The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.

Feedback Type:

index pulse

Eu Rohs Directive:

Pro-active compliance (Product out of EU RoHS legal scope)

Ip Degree Of Protection:

shaft bushing IP41 IEC 60034-5 || total except shaft bushing IP54 IEC 60034-5

California Proposition 65:

WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov

Second Shaft:

without second shaft end

Winding Type:

medium speed of rotation and medium torque

Phase:

single phase

Maximum Mechanical Speed:

1500 rpm

Number Of Motor Stacks:

2

Number Of Motor Poles:

6

Associated Fuse Rating:

0.416666666666667

Shaft End:

untapped

Marking:

CE

Voltage State 1 Guaranteed:

15...30 V

Mercury Free:

Yes

Rohs Exemption Information:

Yes

Device Short Name:

ILS

Vibration Resistance:

20 m/s² 10-500 Hz) 10 cycles IEC 60068-2-6

Reach Regulation:

Reference contains Substances of Very High Concern above the threshold

Shaft Length:

30 mm

Motor Flange Size:

85 mm

Electrical Connection:

printed circuit board connector

Speed Feedback Resolution:

20000 points/turn

Nominal Torque:

4 N.m

Rotor Inertia:

2.2 kg.cm²

Environmental Disclosure:

ENVPEP1411002EN

Discrete Output Voltage:

23...25 V

Ambient Air Temperature For Storage:

-25-70 °C

Voltage State 0 Guaranteed:

-3...4.5 V

Supply Voltage Limits:

18-40 V

Number Of Mounting Holes:

4

Discrete Input Current:

10-10 mA at 24 V on/STO_A safety input || 3-3 mA at 24 V on/STO_B safety input || 2-2 mA at 24 V 24 V signal interface

Range Of Product:

Lexium integrated drive
