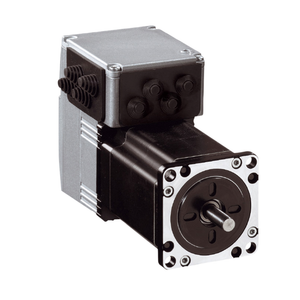

Schneider Electric ILS1U851PB1A0 Lexium Ils Stepper Mot 24 36V P D

Schneider Electric ILS1U851PB1A0 Lexium Ils Stepper Mot 24 36V P D

Schneider Electric
SKU:
ILS1U851PB1A0
|
UPC:
3389119227629
$1,575.00
(No reviews yet) Write a Review
Condition:
New
Current Stock:
Description
integrated drive ILS with stepper motor - 24..36 V - pulse/direction 24 V - 5 A
Additional Information
Accuracy Error:
+/- 6 arc min
Device Short Name:
ILS
Number Of Motor Stacks:
1
Phase:
single phase
Discrete Output Voltage:
23...25 V
Second Shaft:
without second shaft end
Shaft Diameter:
12 mm
Electrical Connection:
printed circuit board connector
Peak Stall Torque:
2 N.m
Speed Feedback Resolution:
1.8°, 0.9°, 0.72°, 0.36°, 0.18°, 0.09°, 0.072°, 0.036° || 200, 400, 500, 1000, 2000, 4000, 5000, 10000 steps
Maximum Switching Current:
100 mA per output || 200 mA total
Communication Interface:
pulse/direction 24 V, Integrated
Nominal Speed:
200 rpm 24 V || 400 rpm 36 V
Relative Humidity:
15-85 % without condensation
Environmental Disclosure:
ENVPEP1411002EN
California Proposition 65:
WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
Sustainable Offer Status:
Green Premium product
Number Of Motor Poles:
6
Voltage State 0 Guaranteed:
-3...4.5 V
China Rohs Regulation:
X
Holding Brake:
without
Range Of Product:
Lexium integrated drive
Ambient Air Temperature For Operation:
50-65 °C with power derating of 2 % per °C) || 0-50 °C without derating)
Shaft Length:
30 mm
Service Life In Hours:
20000 h bearing
Motor Type:
3-phase stepper motor
Ip Degree Of Protection:
shaft bushing IP41 EN/IEC 60034-5 || total except shaft bushing IP54 EN/IEC 60034-5
Discrete Input Current:
10-10 mA at 24 V safety input
Supply Voltage Limits:
18-40 V
Shaft End:
untapped
Centring Collar Diameter:
60 mm
Pvc Free:
Yes
Centring Collar Depth:
2 mm
Mercury Free:
Yes
Net Weight:
2.6 kg
Voltage State 1 Guaranteed:
15...30 V
Product Or Component Type:
motion integrated drive
Nominal Torque:
2 N.m
Mounting Holes Diameter:
6.5 mm
Network Type:
DC
Input/Output Type:
4 signals (each be used as input or output)
Operating Altitude:
<= 3280.84 ft (1000 m) without derating
Winding Type:
medium speed of rotation and medium torque
[Us] Rated Supply Voltage:
36 V || 24 V
Number Of Mounting Holes:
4
Warranty:
18 months
Circularity Profile:
ENVEOLI1411002EN
Continuous Stall Torque:
2 N.m
Current Consumption:
5000 mA maximum continuous
Rotor Inertia:
1.1 kg.cm²
Weee:
The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
Rohs Exemption Information:
Yes
Marking:
CE
Circle Diameter Of The Mounting Holes:
99 mm
Associated Fuse Rating:
0.416666666666667
Standards:
EN 61800-3:2001, second environment || IEC 60072-1 || EN/IEC 61800-3 || EN 50347 || EN/IEC 50178 || EN 61800-3 : 2001-02 || IEC 61800-3, Ed 2
Permissible Ambient Air Temperature Around The Device:
105 °C power amplifier || 110 °C motor
Shock Resistance:
150 m/s² 1000 shocks EN/IEC 60068-2-29
Product Certifications:
cUL || UL || TÜV
Feedback Type:
index pulse
Gear Box Type:
without
Holding Torque:
2 N.m
Reach Regulation:
Reference contains Substances of Very High Concern above the threshold
Motor Flange Size:
85 mm
Type Of Cooling:
natural convection
Maximum Mechanical Speed:
2000 rpm
Eu Rohs Directive:
Pro-active compliance (Product out of EU RoHS legal scope)
Mounting Support:
flange
Maximum Radial Force Fr:
100 N
Maximum Axial Force Fa:
170 N tensile force) || 30 N force pressure)
Vibration Resistance:
20 m/s² 10-500 Hz) 10 cycles EN/IEC 60068-2-6
Length:
140.6 mm
Protection Type:
overload of output voltage || short circuit of the output voltage || safe torque off
Ambient Air Temperature For Storage:
-25-70 °C
Catalog:
View
Datasheet:
View
