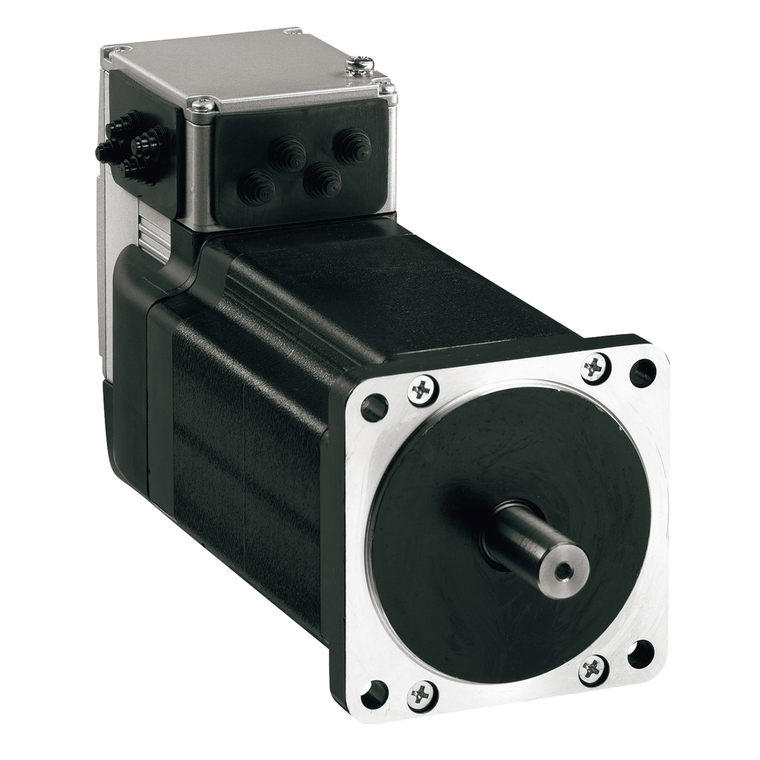

Schneider Electric ILS1W851PB1F0 Lexium Ils Stepper Mot 24 36V P D Brk

(No reviews yet) Write a Review

Write a Review

Schneider Electric ILS1W851PB1F0 Lexium Ils Stepper Mot 24 36V P D Brk

Rating Required Select Rating 1 star (worst) 2 stars 3 stars (average) 4 stars 5 stars (best)

Name

Email Required

Review Subject Required

Comments Required

SKU:

ILS1W851PB1F0

UPC:

3.38912E+12

MPN:

Condition:

New

Nominal Speed:

200 rpm 24 V || 400 rpm 36 V

Motor Type:

3-phase stepper motor

Mounting Holes Diameter:

6.5 mm

Weee:

The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.

Maximum Axial Force Fa:

170 N tensile force) || 30 N force pressure)

Gear Box Type:

without

Type Of Cooling:

natural convection

Voltage State 0 Guaranteed:

-3...4.5 V

Product Or Component Type:

motion integrated drive

Relative Humidity:

15-85 % without condensation

Circle Diameter Of The Mounting Holes:

99 mm

Network Type:

DC

Accuracy Error:

+/- 6 arc min

Motor Flange Size:

85 mm

Electrical Connection:

printed circuit board connector

Supply Voltage Limits:

18-40 V

Number Of Motor Poles:

6

Ambient Air Temperature For Operation:

50-65 °C with power derating of 2 % per °C) || 0-50 °C without derating)

Mercury Free:

Yes

Feedback Type:

index pulse

Holding Brake:

with

Product Certifications:

cUL || UL || TÜV

Continuous Stall Torque:

2 N.m

Sustainable Offer Status:

Green Premium product

Shaft Length:

30 mm

Second Shaft:

without second shaft end

Maximum Mechanical Speed:

2000 rpm

Number Of Mounting Holes:

4

Circularity Profile:

ENVEOLI1411002EN

Operating Altitude:

<= 3280.84 ft (1000 m) without derating

Number Of Motor Stacks:

1

Shaft End:

untapped

Current Consumption:

5000 mA maximum continuous

Centring Collar Depth:

2 mm

Rohs Exemption Information:

Yes

Reach Regulation:

Reference contains Substances of Very High Concern above the threshold

Shock Resistance:

150 m/s² 1000 shocks IEC 60068-2-29

Peak Stall Torque:

2 N.m

Phase:

single phase

Standards:

IEC 50178 || IEC 61800-3, Ed 2 || EN 61800-3:2001, second environment || IEC 60072-1 || IEC 50347 || EN 61800-3 : 2001-02 || IEC 61800-3

Voltage State 1 Guaranteed:

15...30 V

Service Life In Hours:

20000 h bearing

[Us] Rated Supply Voltage:

36 V || 24 V

Maximum Radial Force Fr:

100 N

Protection Type:

safe torque off || short circuit of the output voltage || overload of output voltage

Brake Pull-In Power:

22 W

California Proposition 65:

WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov

China Rohs Regulation:

X

Associated Fuse Rating:

0.416666666666667

Range Of Product:

Lexium integrated drive

Length:

187.3 mm

Net Weight:

4.4 kg

Speed Feedback Resolution:

1.8°, 0.9°, 0.72°, 0.36°, 0.18°, 0.09°, 0.072°, 0.036° || 200, 400, 500, 1000, 2000, 4000, 5000, 10000 steps

Discrete Output Voltage:

23...25 V

Maximum Switching Current:

100 mA per output || 200 mA total

Centring Collar Diameter:

60 mm

Permissible Ambient Air Temperature Around The Device:

105 °C power amplifier || 110 °C motor

Brake Application Time:

20 ms

Vibration Resistance:

20 m/s² 10-500 Hz) 10 cycles IEC 60068-2-6

Warranty:

18 months

Marking:

CE

Mounting Support:

flange

Input/Output Type:

4 signals (each be used as input or output)

Device Short Name:

ILS

Ambient Air Temperature For Storage:

-25-70 °C

Environmental Disclosure:

ENVPEP1411002EN

Brake Release Time:

40 ms

Ip Degree Of Protection:

shaft bushing IP41 IEC 60034-5 || total except shaft bushing IP54 IEC 60034-5

Holding Torque:

6 N.m holding brake || 2 N.m

Nominal Torque:

2 N.m

Communication Interface:

pulse/direction 5 V RS422, Integrated

Eu Rohs Directive:

Pro-active compliance (Product out of EU RoHS legal scope)

Rotor Inertia:

1.3 kg.cm²

Shaft Diameter:

12 mm

Winding Type:

medium speed of rotation and medium torque

Discrete Input Current:

10-10 mA at 24 V safety input

Catalog:

View

Datasheet:

View
