Reference contains Substances of Very High Concern above the threshold
Winding Type:
medium speed of rotation and medium torque
Network Type:
DC
Continuous Stall Torque:
6 N.m
Warranty:
18 months
Nominal Speed:
120 rpm 36 V || 60 rpm 24 V
Communication Interface:
pulse/direction 5 V RS422, Integrated
Environmental Disclosure:
ENVPEP1411002EN
Supply Voltage Limits:
18-40 V
Product Certifications:
TÃV || cUL || UL
Maximum Switching Current:
100 mA per output || 200 mA total
Operating Altitude:
<= 3280.84 ft (1000 m) without derating
Rotor Inertia:
3.3 kg.cm²
Relative Humidity:
15-85 % without condensation
Protection Type:
overload of output voltage || safe torque off || short circuit of the output voltage
Electrical Connection:
printed circuit board connector
Current Consumption:
5000 mA maximum continuous
Second Shaft:
without second shaft end
Shaft Length:
30 mm
California Proposition 65:
WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
Net Weight:
4.7 kg
Vibration Resistance:
20 m/s² 10-500 Hz) 10 cycles IEC 60068-2-6
Number Of Mounting Holes:
4
Permissible Ambient Air Temperature Around The Device:
105 °C power amplifier || 110 °C motor
Associated Fuse Rating:
0.416666666666667
Peak Stall Torque:
6 N.m
Eu Rohs Directive:
Pro-active compliance (Product out of EU RoHS legal scope)
Nominal Torque:
6 N.m
Motor Type:
3-phase stepper motor
Voltage State 0 Guaranteed:
-3...4.5 V
Circularity Profile:
ENVEOLI1411002EN
Length:
200.6 mm
Feedback Type:
index pulse
Phase:
single phase
Marking:
CE
Circle Diameter Of The Mounting Holes:
99 mm
Motor Flange Size:
85 mm
Centring Collar Diameter:
60 mm
Range Of Product:
Lexium integrated drive
Gear Box Type:
without
Maximum Radial Force Fr:
110 N
Discrete Input Current:
10-10 mA at 24 V safety input
Shock Resistance:
150 m/s² 1000 shocks IEC 60068-2-29
Shaft Diameter:
14 mm
Maximum Axial Force Fa:
170 N tensile force) || 30 N force pressure)
Mounting Support:
flange
[Us] Rated Supply Voltage:
24 V || 36 V
Type Of Cooling:
natural convection
Weee:
The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
Mercury Free:
Yes
Voltage State 1 Guaranteed:
15...30 V
Discrete Output Voltage:
23...25 V
Ambient Air Temperature For Operation:
50-65 °C with power derating of 2 % per °C) || 0-50 °C without derating)

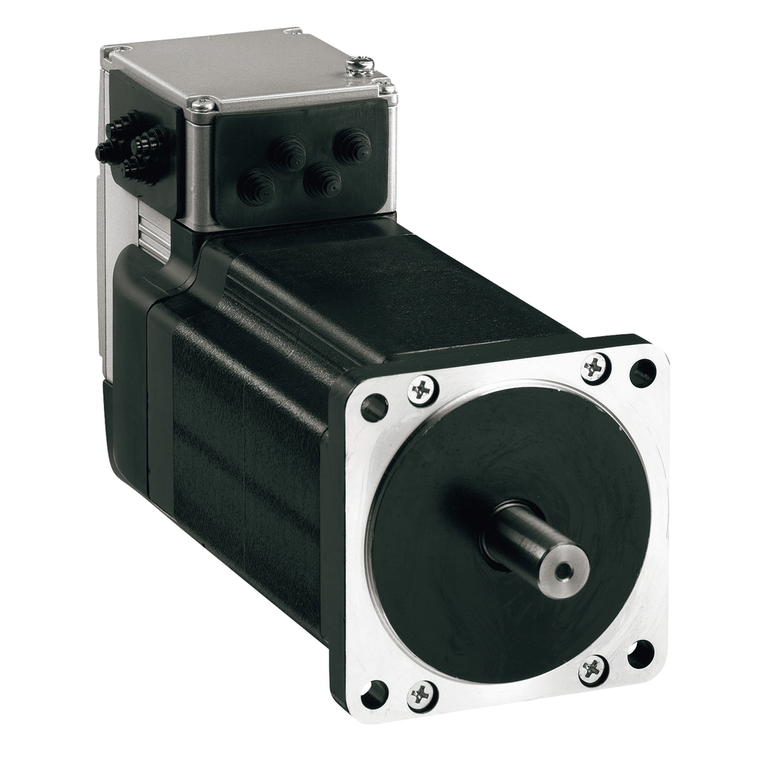

This product is part of the Lexium ILS range, an offer of integrated motion drives for motion control. The integrated motion drive with a 6-pole stepper motor features an integrated CANopen DS301...
