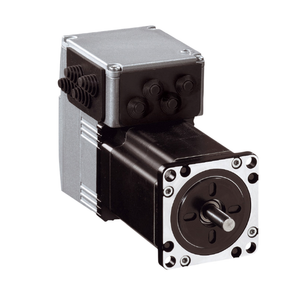

Schneider Electric ILS1W853TB1A0 Lexium Ils Stepper Mot 24 36V P D

Schneider Electric ILS1W853TB1A0 Lexium Ils Stepper Mot 24 36V P D

Schneider Electric
SKU:
ILS1W853TB1A0
|
UPC:
3389119227902
$1,725.00
(No reviews yet) Write a Review
Condition:
New
Current Stock:
Description
integrated drive ILS with stepper motor - 24..36V - pulse/direction 5V RS422- 6A
Additional Information
Service Life In Hours:
20000 h bearing
Maximum Mechanical Speed:
2000 rpm
[Us] Rated Supply Voltage:
36 V || 24 V
Maximum Axial Force Fa:
170 N tensile force) || 30 N force pressure)
Input/Output Type:
4 signals (each be used as input or output)
Operating Altitude:
<= 3280.84 ft (1000 m) without derating
Device Short Name:
ILS
Holding Brake:
without
Network Type:
DC
Maximum Switching Current:
100 mA per output || 200 mA total
Permissible Ambient Air Temperature Around The Device:
105 °C power amplifier || 110 °C motor
Electrical Connection:
printed circuit board connector
Reach Regulation:
Reference contains Substances of Very High Concern above the threshold
Communication Interface:
pulse/direction 5 V RS422, Integrated
Number Of Mounting Holes:
4
California Proposition 65:
WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
Length:
200.6 mm
Feedback Type:
index pulse
Mounting Support:
flange
Shaft End:
untapped
Type Of Cooling:
natural convection
Shaft Length:
30 mm
Mercury Free:
Yes
Centring Collar Depth:
2 mm
Product Certifications:
cUL || UL || TÜV
Gear Box Type:
without
Shock Resistance:
150 m/s² 1000 shocks EN/IEC 60068-2-29
Ambient Air Temperature For Operation:
50-65 °C with power derating of 2 % per °C) || 0-50 °C without derating)
Continuous Stall Torque:
4.5 N.m
Supply Voltage Limits:
18-40 V
Centring Collar Diameter:
60 mm
Second Shaft:
without second shaft end
Standards:
EN/IEC 50178 || EN 61800-3 : 2001-02 || EN/IEC 61800-3 || EN 61800-3:2001, second environment || EN 50347 || IEC 61800-3, Ed 2 || IEC 60072-1
Motor Type:
3-phase stepper motor
Warranty:
18 months
Range Of Product:
Lexium integrated drive
Motor Flange Size:
85 mm
Mounting Holes Diameter:
6.5 mm
Circularity Profile:
ENVEOLI1411002EN
Maximum Radial Force Fr:
110 N
Nominal Speed:
100 rpm 24 V || 300 rpm 36 V
Rohs Exemption Information:
Yes
Speed Feedback Resolution:
1.8°, 0.9°, 0.72°, 0.36°, 0.18°, 0.09°, 0.072°, 0.036° || 200, 400, 500, 1000, 2000, 4000, 5000, 10000 steps
Number Of Motor Stacks:
3
Voltage State 0 Guaranteed:
-3...4.5 V
Holding Torque:
4.5 N.m
Current Consumption:
6000 mA maximum continuous
Shaft Diameter:
14 mm
Associated Fuse Rating:
0.416666666666667
China Rohs Regulation:
X
Phase:
single phase
Weee:
The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
Ambient Air Temperature For Storage:
-25-70 °C
Rotor Inertia:
3.3 kg.cm²
Peak Stall Torque:
4.5 N.m
Accuracy Error:
+/- 6 arc min
Winding Type:
high speed of rotation and medium torque
Protection Type:
safe torque off || short circuit of the output voltage || overload of output voltage
Marking:
CE
Circle Diameter Of The Mounting Holes:
99 mm
Vibration Resistance:
20 m/s² 10-500 Hz) 10 cycles EN/IEC 60068-2-6
Relative Humidity:
15-85 % without condensation
Voltage State 1 Guaranteed:
15...30 V
Product Or Component Type:
motion integrated drive
Net Weight:
4.7 kg
Sustainable Offer Status:
Green Premium product
Pvc Free:
Yes
Ip Degree Of Protection:
shaft bushing IP41 EN/IEC 60034-5 || total except shaft bushing IP54 EN/IEC 60034-5
Nominal Torque:
4.5 N.m
Number Of Motor Poles:
6
Environmental Disclosure:
ENVPEP1411002EN
Eu Rohs Directive:
Pro-active compliance (Product out of EU RoHS legal scope)
Discrete Input Current:
10-10 mA at 24 V safety input
Discrete Output Voltage:
23...25 V
Catalog:
View
Datasheet:
View
