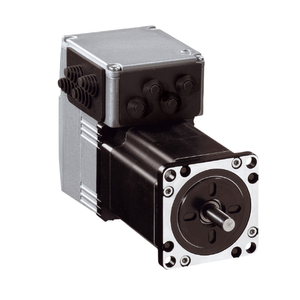

Schneider Electric ILS2T572PB1A0 Lexium Ils Stepper Mot 24 48V Modtcp

Rating Required Select Rating 1 star (worst) 2 stars 3 stars (average) 4 stars 5 stars (best)

Name

Email Required

Review Subject Required

Comments Required

SKU:

ILS2T572PB1A0

UPC:

3.60649E+12

MPN:

Condition:

New

Peak Stall Torque:

0.9 N.m

Current Consumption:

3500 mA maximum continuous

Permissible Ambient Air Temperature Around The Device:

105 °C power amplifier || 110 °C motor

Maximum Switching Current:

100 mA per output || 200 mA total

Maximum Axial Force Fa:

100 N tensile force) || 8.4 N force pressure)

Voltage State 1 Guaranteed:

15...30 V

Gear Box Type:

without

Range Of Product:

Lexium integrated drive

Weee:

The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.

Shaft End:

untapped

Shaft Diameter:

6.35 mm

Mounting Support:

flange

China Rohs Regulation:

X

Voltage State 0 Guaranteed:

-3...4.5 V

Marking:

CE

Rohs Exemption Information:

Yes

Centring Collar Depth:

1.6 mm

Net Weight:

1.6 kg

Second Shaft:

without second shaft end

Feedback Type:

index pulse

Holding Torque:

0.9 N.m

Type Of Cooling:

natural convection

Communication Interface:

Modbus TCP, Integrated

Shock Resistance:

150 m/s² 1000 shocks IEC 60068-2-29

Discrete Input Current:

10-10 mA at 24 V safety input || 2-2 mA at 24 V 24 V signal interface

Commissioning Interface:

RS485 Modbus TCP 9.6, 19.2 and 38.4 kbauds)

Eu Rohs Directive:

Pro-active compliance (Product out of EU RoHS legal scope)

Operating Altitude:

<= 3280.84 ft (1000 m) without derating

Transmission Rate:

10, 100 Mbits

Service Life In Hours:

20000 h bearing

Mounting Holes Diameter:

5.2 mm

Circle Diameter Of The Mounting Holes:

66.6 mm

Motor Type:

3-phase stepper motor

Number Of Mounting Holes:

4

Sustainable Offer Status:

Green Premium product

Input/Output Type:

4 signals (each be used as input or output)

Speed Feedback Resolution:

20000 points/turn

Relative Humidity:

15-85 % without condensation

Supply Voltage Limits:

18-55 V

Pvc Free:

Yes

Protection Type:

short circuit of the output voltage || safe torque off || overload of output voltage

[Us] Rated Supply Voltage:

48 V || 24 V

Network Type:

DC

Maximum Mechanical Speed:

3000 rpm

Environmental Disclosure:

ENVPEP1411002EN

Ambient Air Temperature For Storage:

-25-70 °C

Circularity Profile:

ENVEOLI1411002EN

Nominal Speed:

1000 rpm 48 V || 500 rpm 24 V

Product Certifications:

UL || cUL || TÜV

Associated Fuse Rating:

16 A

Standards:

IEC 50347 || IEC 61800-3, Ed 2 || IEC 50178 || EN 61800-3:2001, second environment || IEC 60072-1 || IEC 61800-3 || EN 61800-3 : 2001-02

Accuracy Error:

+/- 6 arc min

Discrete Output Voltage:

23...25 V

California Proposition 65:

WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov

Holding Brake:

without

Number Of Motor Stacks:

2

Winding Type:

medium speed of rotation and medium torque

Number Of Motor Poles:

6

Maximum Radial Force Fr:

24 N

Warranty:

18 months

Product Or Component Type:

motion integrated drive

Motor Flange Size:

57 mm

Nominal Torque:

0.9 N.m

Mercury Free:

Yes

Device Short Name:

ILS

Length:

115.9 mm

Reach Regulation:

Reference contains Substances of Very High Concern above the threshold

Electrical Connection:

printed circuit board connector

Vibration Resistance:

20 m/s² 10-500 Hz) 10 cycles IEC 60068-2-6

Centring Collar Diameter:

38.1 mm

Phase:

single phase

Shaft Length:

21 mm

Ambient Air Temperature For Operation:

40-55 °C with power derating of 2 % per °C) || 0-40 °C without derating)

Ip Degree Of Protection:

shaft bushing IP41 IEC 60034-5 || total except shaft bushing IP54 IEC 60034-5

Rotor Inertia:

0.22 kg.cm²

Continuous Stall Torque:

0.9 N.m
