Pro-active compliance (Product out of EU RoHS legal scope)
Warranty:
18 months
Discrete Output Voltage:
23...25 V
[Us] Rated Supply Voltage:
48 V || 24 V
Device Short Name:
ILS
Rotor Inertia:
0.38 kg.cm²
Product Certifications:
UL || TÜV || cUL
Voltage State 0 Guaranteed:
-3...4.5 V
Centring Collar Diameter:
38.1 mm
Vibration Resistance:
20 m/s² 10-500 Hz) 10 cycles IEC 60068-2-6
Protection Type:
short circuit of the output voltage || overload of output voltage || safe torque off
Discrete Input Current:
10-10 mA at 24 V safety input || 2-2 mA at 24 V 24 V signal interface
Shaft Length:
21 mm
Nominal Speed:
300 rpm 24 V || 600 rpm 48 V
Environmental Disclosure:
ENVPEP1411002EN
Maximum Axial Force Fa:
100 N tensile force) || 8.4 N force pressure)
Shaft Diameter:
8 mm
Reach Regulation:
Reference contains Substances of Very High Concern above the threshold
Number Of Mounting Holes:
4
Commissioning Interface:
RS485 Modbus TCP 9.6, 19.2 and 38.4 kbauds)
Input/Output Type:
4 signals (each be used as input or output)
Holding Brake:
without
Motor Type:
3-phase stepper motor
Circle Diameter Of The Mounting Holes:
66.6 mm
Standards:
IEC 61800-3, Ed 2 || IEC 50347 || IEC 60072-1 || EN 61800-3:2001, second environment || IEC 61800-3 || EN 61800-3 : 2001-02 || IEC 50178
Marking:
CE
Number Of Motor Stacks:
3
California Proposition 65:
WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
Ambient Air Temperature For Operation:
40-55 °C with power derating of 2 % per °C) || 0-40 °C without derating)
Motor Flange Size:
57 mm
Maximum Mechanical Speed:
3000 rpm
Second Shaft:
without second shaft end
Permissible Ambient Air Temperature Around The Device:
105 °C power amplifier || 110 °C motor
Maximum Switching Current:
100 mA per output || 200 mA total
Relative Humidity:
15-85 % without condensation
Holding Torque:
1.5 N.m
Phase:
single phase
Net Weight:
2 kg
Weee:
The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.

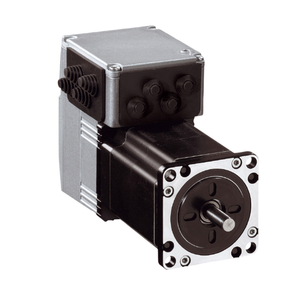

This product is part of the Lexium ILA, ILE, ILS range, an offer of motion integrated drives for motion control. The integrated motion drive with a 6-pole stepper motor features an integrated Modbus...
