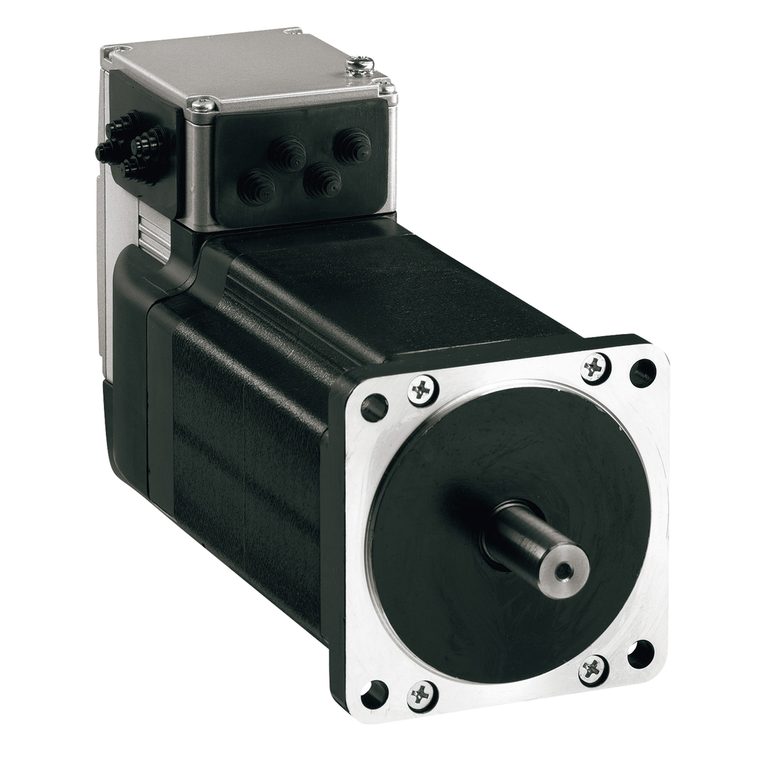

Schneider Electric ILS2T853TC1A0 Lexium Ils Stepper Mot 24 48V Modtcp

SKU:

ILS2T853TC1A0

UPC:

3606485190037

MPN:

Condition:

New

Relative Humidity:

15-85 % without condensation

Holding Torque:

4.5 N.m

Warranty:

18 months

Shaft Length:

30 mm

Operating Altitude:

<= 3280.84 ft (1000 m) without derating

Net Weight:

4.7 kg

Maximum Mechanical Speed:

3000 rpm

Mounting Holes Diameter:

6.5 mm

Weee:

The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.

Motor Flange Size:

85 mm

Length:

200.6 mm

Voltage State 0 Guaranteed:

-3...4.5 V

Speed Feedback Resolution:

20000 points/turn

Commissioning Interface:

RS485 Modbus TCP 9.6, 19.2 and 38.4 kbauds)

Nominal Speed:

200 rpm 24 V || 400 rpm 48 V

Second Shaft:

without second shaft end

Associated Fuse Rating:

16 A

Rotor Inertia:

3.3 kg.cm²

Standards:

EN 61800-3 : 2001-02 || IEC 50178 || IEC 61800-3 || IEC 60072-1 || EN 61800-3:2001, second environment || IEC 50347 || IEC 61800-3, Ed 2

Shaft Diameter:

14 mm

Centring Collar Diameter:

60 mm

Communication Interface:

Modbus TCP, Integrated

Discrete Input Current:

10-10 mA at 24 V safety input || 2-2 mA at 24 V 24 V signal interface

Number Of Motor Stacks:

3

Holding Brake:

without

Maximum Switching Current:

100 mA per output || 200 mA total

China Rohs Regulation:

X

Environmental Disclosure:

ENVPEP1411002EN

Shock Resistance:

150 m/s² 1000 shocks IEC 60068-2-29

Voltage State 1 Guaranteed:

15...30 V

Supply Voltage Limits:

18-55 V

Rohs Exemption Information:

Yes

Input/Output Type:

4 signals (each be used as input or output)

Accuracy Error:

+/- 6 arc min

Device Short Name:

ILS

Circle Diameter Of The Mounting Holes:

99 mm

Mercury Free:

Yes

Ambient Air Temperature For Storage:

-25-70 °C

Vibration Resistance:

20 m/s² 10-500 Hz) 10 cycles IEC 60068-2-6

Maximum Radial Force Fr:

110 N

Continuous Stall Torque:

4.5 N.m

Service Life In Hours:

20000 h bearing

Mounting Support:

flange

Circularity Profile:

ENVEOLI1411002EN

Protection Type:

safe torque off || short circuit of the output voltage || overload of output voltage

Sustainable Offer Status:

Green Premium product

Product Or Component Type:

motion integrated drive

Reach Regulation:

Reference contains Substances of Very High Concern above the threshold

Peak Stall Torque:

4.5 N.m

Transmission Rate:

10, 100 Mbits

Shaft End:

untapped

Permissible Ambient Air Temperature Around The Device:

105 °C power amplifier || 110 °C motor

Nominal Torque:

4.5 N.m

Type Of Cooling:

natural convection

Discrete Output Voltage:

23...25 V

Motor Type:

3-phase stepper motor

Feedback Type:

index pulse

Marking:

CE

Electrical Connection:

industrial connector

Ip Degree Of Protection:

shaft bushing IP41 IEC 60034-5 || total except shaft bushing IP54 IEC 60034-5

Product Certifications:

UL || cUL || TÜV

Winding Type:

high speed of rotation and medium torque

Range Of Product:

Lexium integrated drive

Maximum Axial Force Fa:

170 N tensile force) || 30 N force pressure)

Current Consumption:

6000 mA maximum continuous

[Us] Rated Supply Voltage:

48 V || 24 V

Eu Rohs Directive:

Pro-active compliance (Product out of EU RoHS legal scope)

Network Type:

DC

Gear Box Type:

without

Number Of Motor Poles:

6

Phase:

single phase

Ambient Air Temperature For Operation:

40-55 °C with power derating of 2 % per °C) || 0-40 °C without derating)

California Proposition 65:

WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov

Centring Collar Depth:

2 mm

Number Of Mounting Holes:

4
