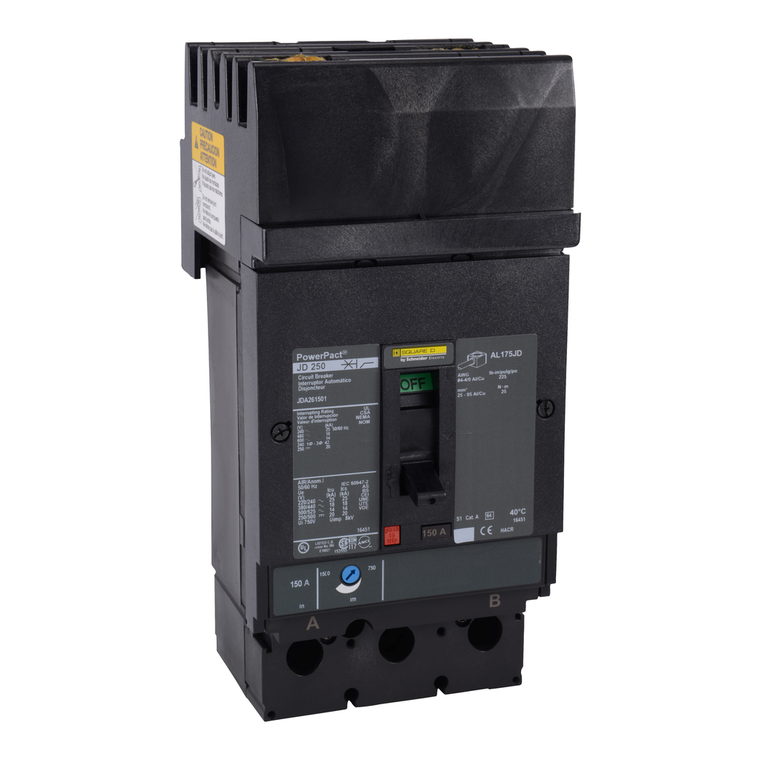

Schneider Electric JDA262004 Molded Case Circuit Breaker 600V 200A

Schneider Electric JDA262004 Molded Case Circuit Breaker 600V 200A

Schneider Electric
SKU:
JDA262004
|
UPC:
7.85902E+11
Availability:
Contact us to confirm availability and lead times.
$2,283.00
Condition:
New
$1200 Minimum Order for Non-stock Items or $60 Addl Schneider Handling Fee Applies
Current Stock:
Description
PowerPacT J-Frame circuit breakers are designed to protect electrical systems from damage caused by overloads and short circuits. PowerPacT J-Frame circuit breakers are available with either thermal magnetic or MicroLogic electronic trip protection units. This PowerPacT J-Frame circuit breaker provides thermal magnetic circuit protection with a breaking capacity of 14kA at 600VAC. All PowerPacT J-Frame circuit breakers are equipped with dual-break rotating contacts that reduce the amount of peak current during a short circuit fault. All PowerPacT circuit breakers have an integral push-to-trip button in the cover to manually trip the circuit breaker. PowerPacT J circuit breakers are available in 2 and 3-pole unit mount and I-Line constructions. PowerPacT J I-Line circuit breakers are available in I-Line construction for easy installation and removal in I-Line applications. This unit has I-Line terminations on the line side and mechanical lugs on the load side. This PowerPacT J, 200A, 2 pole, circuit breaker has a breaking capacity of 14kA at 600VAC. This circuit breaker has a continuous current rating of 80% with a BC phase connection. PowerPacT J circuit breakers comply to UL, CSA, NOM, and IEC standards and are CE marked.
Additional Information
Long Time Pick-Up Adjustment Range:
0.25...1 x In
Network Frequency:
50/60 Hz
Width:
104 mm
Quality Labels:
CE
Ambient Air Temperature For Storage:
-50-85 °C
Height:
191 mm
Magnetic Hold Current:
1000 A
[Ics] Rated Service Breaking Capacity:
25 kA 220/240 V AC 50/60 Hz IEC 60947-2 || 18 kA 380/440/415 V AC 50/60 Hz IEC 60947-2 || 14 kA 500/525 V AC 50/60 Hz IEC 60947-2 || 20 kA 250 V DC IEC 60947-2 || 20 kA 500 V DC IEC 60947-2
California Proposition 65:
WARNING: This product can expose you to chemicals including: DINP, which is known to the State of California to cause cancer, and DIDP, which is known to the State of California to cause birth defects or other reproductive harm. For more information
Net Weight:
2.4 kg
[Ue] Rated Operational Voltage:
600 V AC 50/60 Hz IEC 60947-3
Protection Type:
overload protection || short-circuit protection
Breaking Capacity:
25 kA 240 V AC 50/60 Hz UL 489 || 18 kA 480 V AC 50/60 Hz || 14 kA 600 V AC 50/60 Hz || 20 kA 250 V DC
Mounting Support:
bracket
Utilisation Category:
category A
Terminal Identifier:
AL250JD
Breaking Capacity Code:
D
Rohs Exemption Information:
Yes
[Ui] Rated Insulation Voltage:
750 V IEC 60947-2
Continuous Current Rating:
0.8
Depth:
86 mm
Poles Description:
2P
Wire Stripping Length:
25 mm
Environmental Disclosure:
ENVPEP1311008EN
Pvc Free:
Yes
Mercury Free:
Yes
Awg Gauge:
AWG 3/0...350 kcmil aluminium/copper terminals
Product Certifications:
UL || CSA || NOM
Electrical Connection:
I-Line connection, line || lugs, load
Circularity Profile:
ENVEOLI1311008
Circuit Breaker Application:
HACR rated
Eu Rohs Directive:
Compliant
Warranty:
18 months
Number Of Slots:
2 auxiliary switch OF plug-in) || 1 alarm switch SD plug-in) || 1 overcurrent trip switch SDE plug-in) || 1 voltage release MN or MX plug-in)
Sustainable Offer Status:
Green Premium product
Ip Degree Of Protection:
front cover IP40
Pollution Degree:
3
Communication Interface:
Modbus
Mounting Height:
4.5 in
Suitability For Isolation:
yes IEC 60947-2
Line Rated Current:
200-200 A
Tightening Torque:
25-25 N.m 95-185 mm² (AWG 3/0...350 kcmil)
Phase Connection:
BC
Operating Altitude:
< 6561.68 ft (2000 m) without derating || 5000 m with derating
Magnetic Tripping Current:
2000-2000 A
Trip Unit Technology:
thermal-magnetic
Product Or Component Type:
circuit breaker
China Rohs Regulation:
Product out of China RoHS scope. Substance declaration for your information.
[Uimp] Rated Impulse Withstand Voltage:
8 kV IEC 60947-2
Mounting Mode:
I-Line bracket)
Control Type:
toggle
Ambient Air Temperature For Operation:
-2-70 °C
Standards:
UL || CSA || NEMA || NOM-003-SCFI-2000 || IEC 60947-2
Local Signalling:
switched off (OFF) 1 trip indicator green)
