Schneider Electric JDA262501 Molded Case Circuit Breaker 600V 250A
Schneider Electric
$4,707.00
(No reviews yet)
Write a Review
Write a Review
Schneider Electric

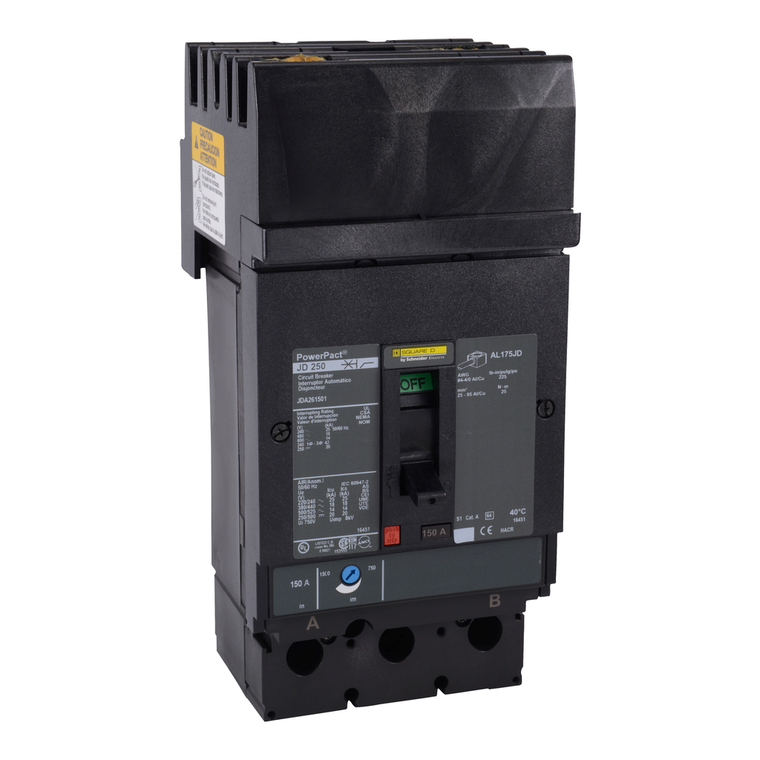

Schneider Electric JDA262501 Molded Case Circuit Breaker 600V 250A
PowerPacT J-Frame circuit breakers are designed to protect electrical systems from damage caused by overloads and short circuits. PowerPacT J-Frame circuit breakers are available with either thermal magnetic or MicroLogic electronic trip protection units. This PowerPacT J-Frame circuit breaker provides thermal magnetic circuit protection with a breaking capacity of 14kA at 600VAC. All PowerPacT J-Frame circuit breakers are equipped with dual-break rotating contacts that reduce the amount of peak current during a short circuit fault. All PowerPacT circuit breakers have an integral push-to-trip button in the cover to manually trip the circuit breaker. PowerPacT J circuit breakers are available in 2 and 3-pole unit mount and I-Line constructions. PowerPacT J I-Line circuit breakers are available in I-Line construction for easy installation and removal in I-Line applications. This unit has I-Line terminations on the line side and mechanical lugs on the load side. This PowerPacT J, 250A, 2 pole, circuit breaker has a breaking capacity of 14kA at 600VAC. This circuit breaker has a continuous current rating of 80% with an AB phase connection. PowerPacT J circuit breakers comply to UL, CSA, NOM, and IEC standards and are CE marked.
- Protection Type:
- overload protection || short-circuit protection
- Quality Labels:
- CE
- Ip Degree Of Protection:
- front cover IP40
- Standards:
- UL || CSA || NEMA || NOM-003-SCFI-2000 || IEC 60947-2
- Ambient Air Temperature For Operation:
- -2-70 °C
- Terminal Identifier:
- AL250JD
- Environmental Disclosure:
- ENVPEP2206031EN
- Product Or Component Type:
- circuit breaker
- Width:
- 104 mm
- Poles Description:
- 2P
- Product Certifications:
- UL || CSA || NOM
- Circularity Profile:
- ENVEOLI2206031EN
- Local Signalling:
- switched off (OFF) 1 trip indicator green)
- Reach Regulation:
- Reference contains Substances of Very High Concern above the threshold
- Ambient Air Temperature For Storage:
- -50-85 °C
- Depth:
- 86 mm
- Warranty:
- 18 months
- Net Weight:
- 2.4 kg
- Operating Altitude:
- < 6561.68 ft (2000 m) without derating || 5000 m with derating
- California Proposition 65:
- WARNING: This product can expose you to chemicals including: DINP, which is known to the State of California to cause cancer, and DIDP, which is known to the State of California to cause birth defects or other reproductive harm. For more information
- Pollution Degree:
- 3
- Mercury Free:
- Yes
- Continuous Current Rating:
- 0.8
- Control Type:
- toggle
- Circuit Breaker Application:
- HACR rated
- Breaking Capacity:
- 25 kA 240 V AC 50/60 Hz UL 489 || 18 kA 480 V AC 50/60 Hz || 14 kA 600 V AC 50/60 Hz || 20 kA 250 V DC
- Mounting Height:
- 4.5 in
- Network Frequency:
- 50/60 Hz
- Wire Stripping Length:
- 25 mm
- Sustainable Offer Status:
- Green Premium product
- Suitability For Isolation:
- yes IEC 60947-2
- Breaking Capacity Code:
- D
- Magnetic Tripping Current:
- 2500-2500 A
- Tightening Torque:
- 25-25 N.m 95-185 mm² (AWG 3/0...350 kcmil)
- Height:
- 191 mm
- China Rohs Regulation:
- Product out of China RoHS scope. Substance declaration for your information.
- Communication Interface:
- Modbus
- Eu Rohs Directive:
- Compliant with Exemptions
- Rohs Exemption Information:
- Yes
- Electrical Connection:
- I-Line connection, line || lugs, load
- Line Rated Current:
- 250-250 A
- [Uimp] Rated Impulse Withstand Voltage:
- 8 kV IEC 60947-2
- [Ics] Rated Service Breaking Capacity:
- 25 kA 220/240 V AC 50/60 Hz IEC 60947-2 || 18 kA 380/440/415 V AC 50/60 Hz IEC 60947-2 || 14 kA 500/525 V AC 50/60 Hz IEC 60947-2 || 20 kA 250 V DC IEC 60947-2 || 20 kA 500 V DC IEC 60947-2
- Mounting Mode:
- I-Line bracket)
- Number Of Slots:
- 2 auxiliary switch OF plug-in) || 1 alarm switch SD plug-in) || 1 overcurrent trip switch SDE plug-in) || 1 voltage release MN or MX plug-in)
- Long Time Pick-Up Adjustment Range:
- 0.25...1 x In
- Trip Unit Technology:
- thermal-magnetic
- [Ue] Rated Operational Voltage:
- 600 V AC 50/60 Hz IEC 60947-3
- Awg Gauge:
- AWG 3/0...350 kcmil aluminium/copper terminals
- [Ui] Rated Insulation Voltage:
- 750 V IEC 60947-2
- Mounting Support:
- bracket
- Phase Connection:
- AB
- Utilisation Category:
- category A
- Magnetic Hold Current:
- 1250 A
- Pvc Free:
- Yes
