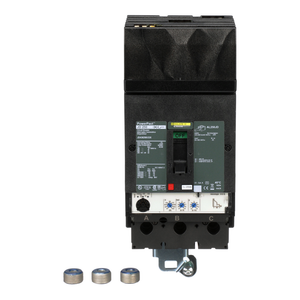

Schneider Electric JDA36250 Molded Case Circuit Breaker 600V 250A

Schneider Electric JDA36250 Molded Case Circuit Breaker 600V 250A

Schneider Electric
SKU:
JDA36250
|
UPC:
7.85902E+11
Availability:
Contact us to confirm availability and lead times.
$3,936.00
Condition:
New
$1200 Minimum Order for Non-stock Items or $60 Addl Schneider Handling Fee Applies
Current Stock:
Description
PowerPacT J-Frame circuit breakers are designed to protect electrical systems from damage caused by overloads and short circuits. PowerPacT J-Frame circuit breakers are available with either thermal magnetic or MicroLogic electronic trip protection units. This PowerPacT J-Frame circuit breaker provides thermal magnetic circuit protection with a breaking capacity of 14kA at 600VAC. All PowerPacT J-Frame circuit breakers are equipped with dual-break rotating contacts that reduce the amount of peak current during a short circuit fault. All PowerPacT circuit breakers have an integral push-to-trip button in the cover to manually trip the circuit breaker. PowerPacT J circuit breakers are available in 2 and 3-pole unit mount and I-Line constructions. PowerPacT J I-Line circuit breakers are available in I-Line construction for easy installation and removal in I-Line applications. This unit has I-Line terminations on the line side and mechanical lugs on the load side. This PowerPacT J, 250A, 3 pole, circuit breaker has a breaking capacity of 14kA at 600VAC. This circuit breaker has a continuous current rating of 80% with an ABC phase connection. PowerPacT J circuit breakers comply to UL, CSA, NOM, and IEC standards and are CE marked.
Additional Information
Circularity Profile:
ENVEOLI2206031EN
Line Rated Current:
250-250 A
Phase Connection:
ABC
Local Signalling:
switched off (OFF) 1 trip indicator green)
Trip Unit Technology:
thermal-magnetic
Height:
191 mm
Environmental Disclosure:
ENVPEP2206031EN
Protection Type:
overload protection || short-circuit protection
Mercury Free:
Yes
Width:
104 mm
Depth:
86 mm
Pollution Degree:
3 IEC 60947-1
Product Or Component Type:
circuit breaker
Device Application:
distribution
Wire Stripping Length:
25 mm
Sustainable Offer Status:
Green Premium product
Network Frequency:
50/60 Hz
Mounting Support:
bracket
Breaking Capacity:
25 kA 240 V AC 50/60 Hz UL 489 || 18 kA 480 V AC 50/60 Hz || 14 kA 600 V AC 50/60 Hz || 20 kA 250 V DC
Utilisation Category:
category A
Reach Regulation:
Reference contains Substances of Very High Concern above the threshold
Control Type:
toggle
Communication Interface:
Modbus || Ethernet
Magnetic Hold Current:
1250 A
Continuous Current Rating:
0.8
Circuit Breaker Application:
HACR rated
[Ue] Rated Operational Voltage:
600 V AC 50/60 Hz IEC 60947-3
Terminal Identifier:
AL250JD
Net Weight:
2.4 kg
Mounting Height:
4.5 in
Ambient Air Temperature For Operation:
-2-70 °C
Mounting Mode:
I-Line bracket)
Tightening Torque:
25-25 N.m 95-185 mm² (AWG 3/0...350 kcmil)
Range:
PowerPact
Rohs Exemption Information:
Yes
Awg Gauge:
AWG 3/0...350 kcmil aluminium/copper terminals
Standards:
UL || CSA || NEMA || NOM-003-SCFI-2000 || IEC 60947-2
Warranty:
18 months
Breaking Capacity Code:
D
China Rohs Regulation:
Product out of China RoHS scope. Substance declaration for your information.
Pvc Free:
Yes
Electrical Connection:
I-Line connection, line || lugs, load
Magnetic Tripping Current:
2500-2500 A
Ip Degree Of Protection:
front cover IP40
Number Of Slots:
2 auxiliary switch OF plug-in) || 1 alarm switch SD plug-in) || 1 overcurrent trip switch SDE plug-in) || 1 voltage release MN or MX plug-in)
Poles Description:
3P
[Ics] Rated Service Breaking Capacity:
25 kA 220/240 V AC 50/60 Hz IEC 60947-2 || 18 kA 380/440/415 V AC 50/60 Hz IEC 60947-2 || 14 kA 500/525 V AC 50/60 Hz IEC 60947-2 || 20 kA 250 V DC IEC 60947-2 || 20 kA 500 V DC IEC 60947-2
Product Name:
PowerPact J
California Proposition 65:
WARNING: This product can expose you to chemicals including: DINP, which is known to the State of California to cause cancer, and DIDP, which is known to the State of California to cause birth defects or other reproductive harm. For more information
[Ui] Rated Insulation Voltage:
750 V IEC 60947-2
[Uimp] Rated Impulse Withstand Voltage:
8 kV IEC 60947-2
Suitability For Isolation:
yes IEC 60947-2
Eu Rohs Directive:
Compliant with Exemptions
Product Certifications:
UL || CSA || NOM
Quality Labels:
CE
Ambient Air Temperature For Storage:
-50-85 °C
Operating Altitude:
< 6561.68 ft (2000 m) without derating || 5000 m with derating
Long Time Pick-Up Adjustment Range:
0.25...1 x In
Brochure:
View
