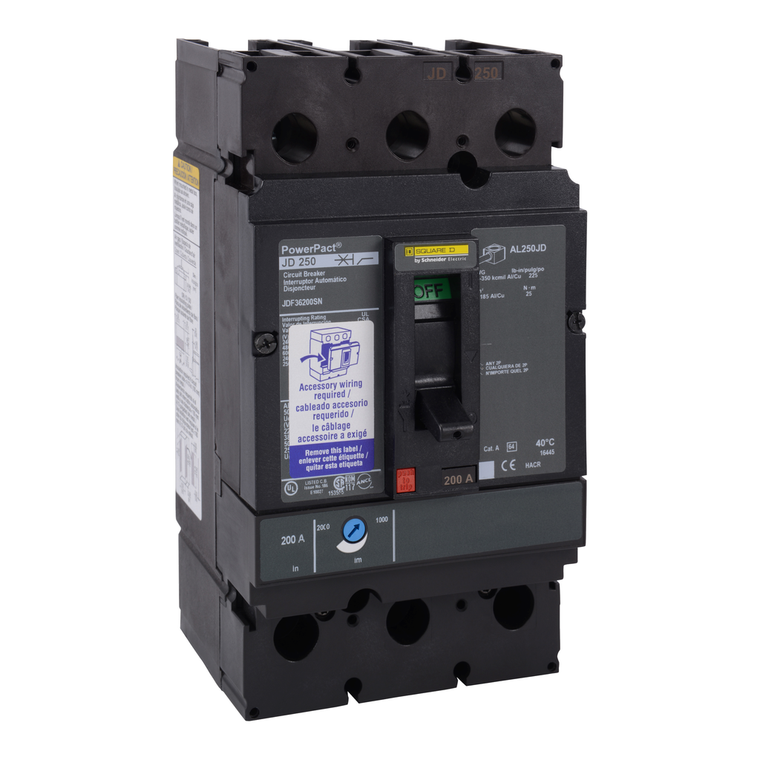

Schneider Electric JDF36200SN Molded Case Circuit Breaker 600V 200A

Schneider Electric JDF36200SN Molded Case Circuit Breaker 600V 200A

Schneider Electric
SKU:
JDF36200SN
|
UPC:
785901948803
Availability:
Factory stock
$2,221.17
Condition:
New
$1200 Minimum Order for Non-stock Items or $60 Addl Schneider Handling Fee Applies
Current Stock:
Description
PowerPacT J-Frame circuit breakers are designed to protect electrical systems from damage caused by overloads and short circuits. PowerPacT J-Frame circuit breakers are available with either thermal magnetic or MicroLogic electronic trip protection units. This PowerPacT J-Frame circuit breaker provides thermal magnetic circuit protection with a breaking capacity of 14kA at 600VAC. All PowerPacT J-Frame circuit breakers are equipped with dual-break rotating contacts that reduce the amount of peak current during a short circuit fault. All PowerPacT circuit breakers have an integral push-to-trip button in the cover to manually trip the circuit breaker. PowerPacT J circuit breakers are available in 2 and 3-pole unit mount and I-Line constructions. This breaker has a busbar connection. This PowerPacT J, 200A, 3 pole, circuit breaker has a breaking capacity of 14kA at 600VAC. This circuit breaker has a continuous current rating of 80%. This unit includes a factory installed 12VDC shunt trip. PowerPacT J circuit breakers comply to UL, CSA, NOM, and IEC standards and are CE marked.
Additional Information
Breaking Capacity Code:
D
Rohs Exemption Information:
Yes
Operating Altitude:
< 6561.68 ft (2000 m) without derating || 5000 m with derating
Device Application:
distribution
Line Rated Current:
200-200 A
Electrical Connection:
busbar connection, line || busbar connection, load
Poles Description:
3P
Eu Rohs Directive:
Compliant with Exemptions
Sustainable Offer Status:
Green Premium product
Standards:
UL || CSA || NEMA || NOM-003-SCFI-2000 || IEC 60947-2
Circuit Breaker Application:
HACR rated
Number Of Slots:
2 auxiliary switch OF plug-in) || 1 alarm switch SD plug-in) || 1 overcurrent trip switch SDE plug-in) || 1 voltage release MN or MX plug-in)
Continuous Current Rating:
0.8
Magnetic Tripping Current:
2000-2000 A
Height:
191 mm
Quality Labels:
CE
Control Type:
toggle
Width:
104 mm
Ambient Air Temperature For Storage:
-50-85 °C
[Uimp] Rated Impulse Withstand Voltage:
8 kV IEC 60947-2
Terminal Identifier:
AL250JD
Pollution Degree:
3 IEC 60947-1
Mounting Mode:
unit mount busbar)
Environmental Disclosure:
ENVPEP2206031EN
Long Time Pick-Up Adjustment Range:
0.25...1 x In
Magnetic Hold Current:
1000 A
Wire Stripping Length:
25 mm
Network Frequency:
50/60 Hz
Warranty:
18 months
Depth:
86 mm
Range:
PowerPact
Reach Regulation:
Reference contains Substances of Very High Concern above the threshold
China Rohs Regulation:
Product out of China RoHS scope. Substance declaration for your information.
Pvc Free:
Yes
Local Signalling:
switched off (OFF) 1 trip indicator green)
Mercury Free:
Yes
Mounting Height:
4.5 in
Utilisation Category:
category A
Product Certifications:
UL || CSA || NOM
California Proposition 65:
WARNING: This product can expose you to chemicals including: DINP, which is known to the State of California to cause cancer, and DIDP, which is known to the State of California to cause birth defects or other reproductive harm. For more information
[Ui] Rated Insulation Voltage:
750 V IEC 60947-2
Accessory / Separate Part Type:
shunt trip 12 V DC compartment
Product Or Component Type:
circuit breaker
[Ics] Rated Service Breaking Capacity:
25 kA 220/240 V AC 50/60 Hz IEC 60947-2 || 18 kA 380/440/415 V AC 50/60 Hz IEC 60947-2 || 14 kA 500/525 V AC 50/60 Hz IEC 60947-2 || 20 kA 250 V DC IEC 60947-2 || 20 kA 500 V DC IEC 60947-2
Net Weight:
2.4 kg
Product Name:
PowerPact J
Communication Interface:
Modbus || Ethernet
Circularity Profile:
ENVEOLI2206031EN
Trip Unit Technology:
thermal-magnetic
Ambient Air Temperature For Operation:
-2-70 °C
Mounting Support:
busbar
[Ue] Rated Operational Voltage:
600 V AC 50/60 Hz IEC 60947-3
Phase Connection:
BC
Protection Type:
overload protection || short-circuit protection
Suitability For Isolation:
yes IEC 60947-2
Ip Degree Of Protection:
front cover IP40
Breaking Capacity:
25 kA 240 V AC 50/60 Hz UL 489 || 18 kA 480 V AC 50/60 Hz || 14 kA 600 V AC 50/60 Hz || 20 kA 250 V DC
Tightening Torque:
25-25 N.m 95-185 mm² (AWG 3/0...350 kcmil)
Awg Gauge:
AWG 3/0...350 kcmil aluminium/copper terminals
