Schneider Electric JDF36250U33X Molded Case Circuit Breaker 600V 250A
Schneider Electric
$3,221.00
(No reviews yet)
Write a Review
Write a Review
Schneider Electric

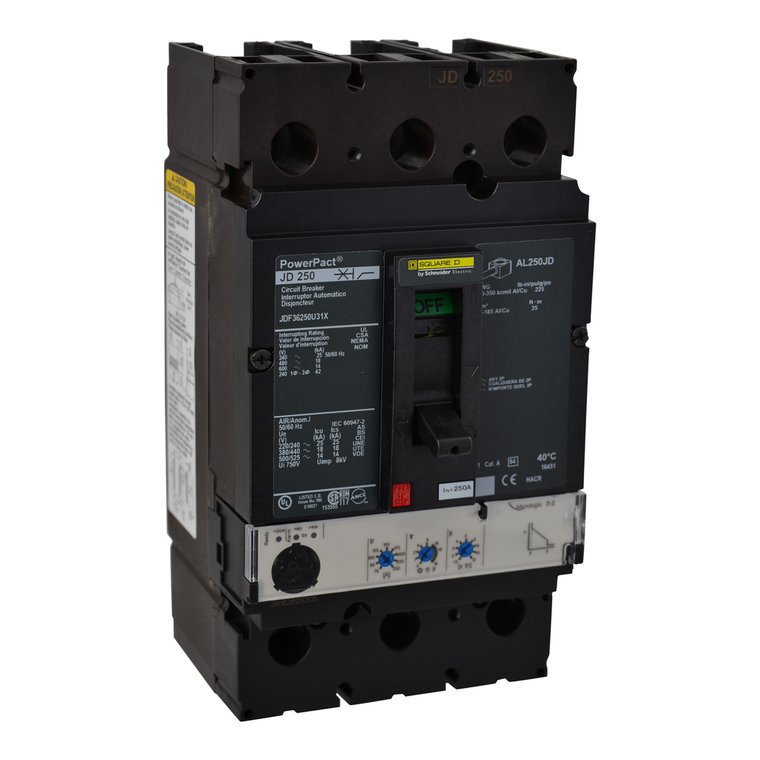

Schneider Electric JDF36250U33X Molded Case Circuit Breaker 600V 250A
PowerPacT J-Frame circuit breakers are designed to protect electrical systems from damage caused by overloads and short circuits. PowerPacT J-Frame circuit breakers are available with either thermal magnetic or MicroLogic electronic trip protection units. This PowerPacT J-Frame circuit breaker provides Micrologic Standard with a 3.2S trip unit and an LSI function with a breaking capacity of 14kA at 600VAC. All PowerPacT J-Frame circuit breakers are equipped with dual-break rotating contacts that reduce the amount of peak current during a short circuit fault. All PowerPacT circuit breakers have an integral push-to-trip button in the cover to manually trip the circuit breaker. PowerPacT J circuit breakers are available in 2 and 3-pole unit mount and I-Line constructions. This breaker has a busbar connection. This PowerPacT J, 250A, 3 pole, circuit breaker has a breaking capacity of 14kA at 600VAC. This circuit breaker has a continuous current rating of 80%. PowerPacT J circuit breakers comply to UL, CSA, NOM, and IEC standards and are CE marked.
- Local Signalling:
- ready 1 LED green) || alarm 1 LED 90 % Ir orange) || alarm 1 LED 105 % Ir red) || switched off (OFF) 1 trip indicator green)
- Width:
- 104 mm
- Environmental Disclosure:
- ENVPEP1311009EN_V2
- Ambient Air Temperature For Operation:
- -2-70 °C
- Standards:
- UL || CSA || NEMA || NOM-003-SCFI-2000 || IEC 60947-2
- Product Certifications:
- UL || CSA || NOM
- [Ui] Rated Insulation Voltage:
- 750 V IEC 60947-2
- Tightening Torque:
- 25-25 N.m 95-185 mm² (AWG 3/0...350 kcmil)
- Network Frequency:
- 50/60 Hz
- Wire Stripping Length:
- 25 mm
- Mercury Free:
- Yes
- Quality Labels:
- CE
- Breaking Capacity Code:
- D
- [Ics] Rated Service Breaking Capacity:
- 25 kA 220/240 V AC 50/60 Hz IEC 60947-2 || 18 kA 380/440/415 V AC 50/60 Hz IEC 60947-2 || 14 kA 500/525 V AC 50/60 Hz IEC 60947-2 || 20 kA 250 V DC IEC 60947-2 || 20 kA 500 V DC IEC 60947-2
- Suitability For Isolation:
- yes IEC 60947-2
- Communication Interface:
- Modbus || Ethernet
- Trip Unit Technology:
- electronic, standard, MicroLogic 3.2 S, LSI
- Sustainable Offer Status:
- Green Premium product
- Trip Unit Name:
- MicroLogic 3.2 S
- Device Application:
- distribution
- Number Of Slots:
- 2 auxiliary switch OF plug-in) || 1 alarm switch SD plug-in) || 1 overcurrent trip switch SDE plug-in) || 1 voltage release MN or MX plug-in)
- Rohs Exemption Information:
- Yes
- Terminal Identifier:
- AL250JD
- Circuit Breaker Application:
- HACR rated
- Ip Degree Of Protection:
- front cover IP40
- Electrical Connection:
- busbar connection, line || busbar connection, load
- California Proposition 65:
- WARNING: This product can expose you to chemicals including: DINP, which is known to the State of California to cause cancer, and DIDP, which is known to the State of California to cause birth defects or other reproductive harm. For more information
- Height:
- 191 mm
- Protection Type:
- overload protection || short-circuit protection
- Pvc Free:
- Yes
- Operating Altitude:
- < 6561.68 ft (2000 m) without derating || 5000 m with derating
- Net Weight:
- 2.4 kg
- Reach Regulation:
- Reference contains Substances of Very High Concern above the threshold
- Eu Rohs Directive:
- Compliant with Exemptions
- [Uimp] Rated Impulse Withstand Voltage:
- 8 kV IEC 60947-2
- Mounting Mode:
- unit mount busbar)
- Breaking Capacity:
- 25 kA 240 V AC 50/60 Hz UL 489 || 18 kA 480 V AC 50/60 Hz || 14 kA 600 V AC 50/60 Hz || 20 kA 250 V DC
- Control Type:
- toggle
- Poles Description:
- 3P
- Circularity Profile:
- ENVEOLI1311009EN
- Product Or Component Type:
- circuit breaker
- China Rohs Regulation:
- Product out of China RoHS scope. Substance declaration for your information.
- Continuous Current Rating:
- 0.8
- Ambient Air Temperature For Storage:
- -50-85 °C
- Range:
- PowerPact
- Pollution Degree:
- 3 IEC 60947-1
- Utilisation Category:
- category A
- Phase Connection:
- BA
- Depth:
- 86 mm
- Product Name:
- PowerPact J
- Awg Gauge:
- AWG 3/0...350 kcmil aluminium/copper terminals
- Line Rated Current:
- 250-250 A
- [Ue] Rated Operational Voltage:
- 600 V AC 50/60 Hz IEC 60947-3
- Mounting Height:
- 4.5 in
- Mounting Support:
- busbar
- Long Time Pick-Up Adjustment Range:
- 0.25...1 x In
