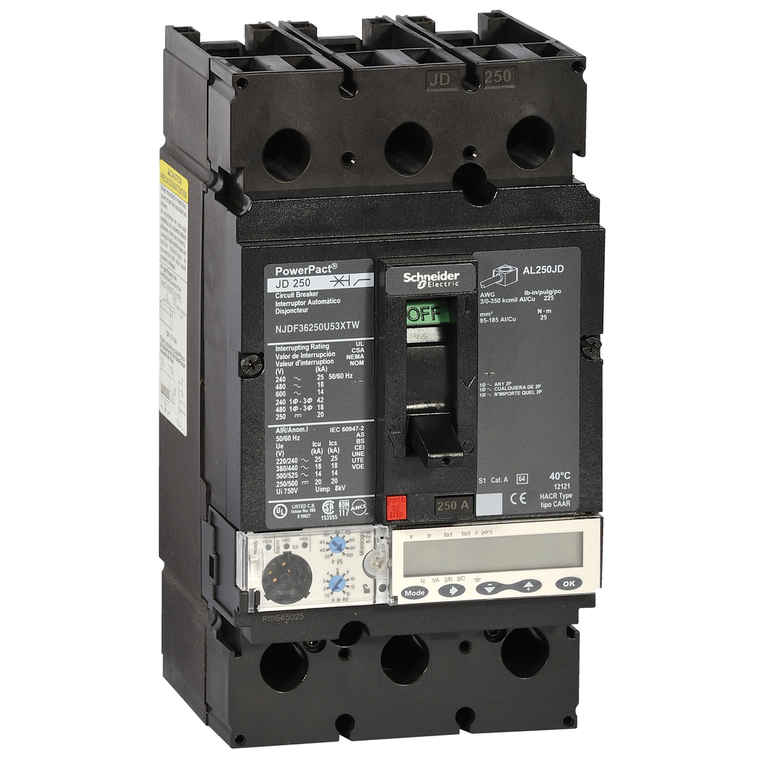

Schneider Electric JDF36250U53X Molded Case Circuit Breaker 600V 250A

Schneider Electric JDF36250U53X Molded Case Circuit Breaker 600V 250A

Schneider Electric
SKU:
JDF36250U53X
|
UPC:
3.60649E+12
Availability:
Factory stock
$4,284.49
Condition:
New
$1200 Minimum Order for Non-stock Items or $60 Addl Schneider Handling Fee Applies
Current Stock:
Description
PowerPacT J-Frame circuit breakers are designed to protect electrical systems from damage caused by overloads and short circuits. PowerPacT J-Frame circuit breakers are available with either thermal magnetic or MicroLogic electronic trip protection units. This PowerPacT J-Frame circuit breaker provides Micrologic Energy with a 5.2E trip unit and an LSI function with a breaking capacity of 14kA at 600VAC. All PowerPacT J-Frame circuit breakers are equipped with dual-break rotating contacts that reduce the amount of peak current during a short circuit fault. All PowerPacT circuit breakers have an integral push-to-trip button in the cover to manually trip the circuit breaker. PowerPacT J circuit breakers are available in 2 and 3-pole unit mount and I-Line constructions. This breaker has a busbar connection. This PowerPacT J, 250A, 3 pole, circuit breaker has a breaking capacity of 14kA at 600VAC. This circuit breaker has a continuous current rating of 80%. PowerPacT J circuit breakers comply to UL, CSA, NOM, and IEC standards and are CE marked.
Additional Information
[Ui] Rated Insulation Voltage:
750 V IEC 60947-2
Product Certifications:
UL || CSA || NOM
Reach Regulation:
Reference contains Substances of Very High Concern above the threshold
Protection Type:
overload protection || short-circuit protection
Circuit Breaker Application:
HACR rated
Device Application:
distribution
Network Frequency:
50/60 Hz
Mounting Mode:
unit mount busbar)
Tightening Torque:
25-25 N.m 95-185 mm² (AWG 3/0...350 kcmil)
Communication Interface:
Modbus || Ethernet
Utilisation Category:
category A
Pollution Degree:
3 IEC 60947-1
Line Rated Current:
250-250 A
Height:
191 mm
Breaking Capacity Code:
D
Range:
PowerPact
California Proposition 65:
WARNING: This product can expose you to chemicals including: DINP, which is known to the State of California to cause cancer, and DIDP, which is known to the State of California to cause birth defects or other reproductive harm. For more information
Standards:
UL || CSA || NEMA || NOM-003-SCFI-2000 || IEC 60947-2
Width:
104 mm
Depth:
86 mm
Long Time Pick-Up Adjustment Range:
0.25...1 x In
Eu Rohs Directive:
Compliant with Exemptions
Sustainable Offer Status:
Green Premium product
Local Signalling:
ready 1 LED green) || alarm 1 LED 90 % Ir orange) || alarm 1 LED 105 % Ir red) || switched off (OFF) 1 trip indicator green)
Net Weight:
2.4 kg
China Rohs Regulation:
Product out of China RoHS scope. Substance declaration for your information.
[Ics] Rated Service Breaking Capacity:
25 kA 220/240 V AC 50/60 Hz IEC 60947-2 || 18 kA 380/440/415 V AC 50/60 Hz IEC 60947-2 || 14 kA 500/525 V AC 50/60 Hz IEC 60947-2 || 20 kA 250 V DC IEC 60947-2 || 20 kA 500 V DC IEC 60947-2
Environmental Disclosure:
ENVPEP1311009EN_V2
Trip Unit Technology:
electronic, energy, MicroLogic 5.2 E, LSI
Quality Labels:
CE
Ip Degree Of Protection:
front cover IP40
Control Type:
toggle
Number Of Slots:
2 auxiliary switch OF plug-in) || 1 alarm switch SD plug-in) || 1 overcurrent trip switch SDE plug-in) || 1 voltage release MN or MX plug-in)
Mounting Support:
busbar
Product Name:
PowerPact J
Ambient Air Temperature For Storage:
-50-85 °C
Poles Description:
3P
[Uimp] Rated Impulse Withstand Voltage:
8 kV IEC 60947-2
Mounting Height:
4.5 in
Awg Gauge:
AWG 3/0...350 kcmil aluminium/copper terminals
Suitability For Isolation:
yes IEC 60947-2
Product Or Component Type:
circuit breaker
Ambient Air Temperature For Operation:
-2-70 °C
Continuous Current Rating:
0.8
Circularity Profile:
ENVEOLI1311009EN
Electrical Connection:
busbar connection, line || busbar connection, load
Phase Connection:
CA
Trip Unit Name:
MicroLogic 5.2 E
Rohs Exemption Information:
Yes
Pvc Free:
Yes
Mercury Free:
Yes
Operating Altitude:
< 6561.68 ft (2000 m) without derating || 5000 m with derating
Wire Stripping Length:
25 mm
Terminal Identifier:
AL250JD
[Ue] Rated Operational Voltage:
600 V AC 50/60 Hz IEC 60947-3
Breaking Capacity:
25 kA 240 V AC 50/60 Hz UL 489 || 18 kA 480 V AC 50/60 Hz || 14 kA 600 V AC 50/60 Hz || 20 kA 250 V DC
