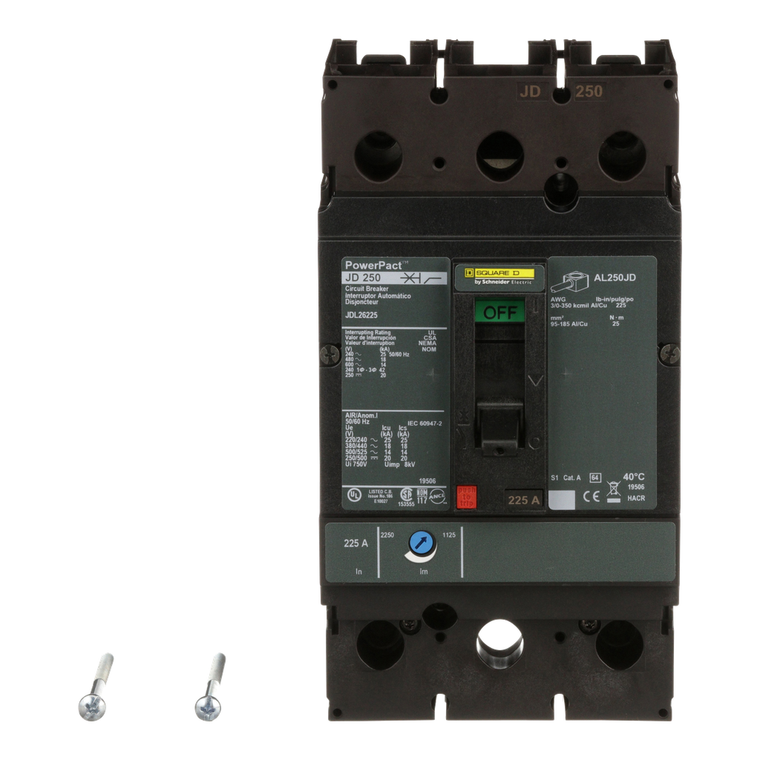

Schneider Electric JDL26225 Molded Case Circuit Breaker 600V 225A

Schneider Electric JDL26225 Molded Case Circuit Breaker 600V 225A

Schneider Electric
SKU:
JDL26225
|
UPC:
785901623182
Availability:
Factory stock
$1,386.24
Condition:
New
$1200 Minimum Order for Non-stock Items or $60 Addl Schneider Handling Fee Applies
Current Stock:
Description
PowerPacT J-Frame circuit breakers are designed to protect electrical systems from damage caused by overloads and short circuits. PowerPacT J-Frame circuit breakers are available with either thermal magnetic or MicroLogic electronic trip protection units. This PowerPacT J-Frame circuit breaker provides thermal magnetic circuit protection with a breaking capacity of 14kA at 600VAC. All PowerPacT J-Frame circuit breakers are equipped with dual-break rotating contacts that reduce the amount of peak current during a short circuit fault. All PowerPacT circuit breakers have an integral push-to-trip button in the cover to manually trip the circuit breaker. PowerPacT J circuit breakers are available in 2 and 3-pole unit mount and I-Line constructions. This breaker has lugs on both the line and load sides. This PowerPacT J, 225A, 2 pole, circuit breaker has a breaking capacity of 14kA at 600VAC. This circuit breaker has a continuous current rating of 80%. PowerPacT J circuit breakers comply to UL, CSA, NOM, and IEC standards and are CE marked.
Additional Information
Protection Type:
overload protection || short-circuit protection
Pvc Free:
Yes
Mercury Free:
Yes
Rohs Exemption Information:
Yes
Ambient Air Temperature For Operation:
-2-70 °C
Suitability For Isolation:
yes IEC 60947-2
Trip Unit Technology:
thermal-magnetic
Net Weight:
2.4 kg
Mounting Support:
lug
Height:
191 mm
Depth:
86 mm
Ip Degree Of Protection:
front cover IP40
Standards:
UL || CSA || NEMA || NOM-003-SCFI-2000 || IEC 60947-2
[Ui] Rated Insulation Voltage:
750 V IEC 60947-2
Breaking Capacity:
25 kA 240 V AC 50/60 Hz UL 489 || 18 kA 480 V AC 50/60 Hz || 14 kA 600 V AC 50/60 Hz || 20 kA 250 V DC
Breaking Capacity Code:
D
Product Name:
PowerPact J
Range:
PowerPact
Warranty:
18 months
China Rohs Regulation:
Product out of China RoHS scope. Substance declaration for your information.
Circuit Breaker Application:
HACR rated
Utilisation Category:
category A
Local Signalling:
switched off (OFF) 1 trip indicator green)
Electrical Connection:
lugs, line || lugs, load
Wire Stripping Length:
25 mm
Environmental Disclosure:
ENVPEP2206031EN
Circularity Profile:
ENVEOLI2206031EN
Quality Labels:
CE
Awg Gauge:
AWG 3/0...350 kcmil aluminium/copper terminals
Number Of Slots:
2 auxiliary switch OF plug-in) || 1 alarm switch SD plug-in) || 1 overcurrent trip switch SDE plug-in) || 1 voltage release MN or MX plug-in)
Poles Description:
2P
Mounting Mode:
unit mount lug)
Pollution Degree:
3 IEC 60947-1
Width:
104 mm
Control Type:
toggle
[Ics] Rated Service Breaking Capacity:
25 kA 220/240 V AC 50/60 Hz IEC 60947-2 || 18 kA 380/440/415 V AC 50/60 Hz IEC 60947-2 || 14 kA 500/525 V AC 50/60 Hz IEC 60947-2 || 20 kA 250 V DC IEC 60947-2 || 20 kA 500 V DC IEC 60947-2
Continuous Current Rating:
0.8
[Ue] Rated Operational Voltage:
600 V AC 50/60 Hz IEC 60947-3
Terminal Identifier:
AL250JD
California Proposition 65:
WARNING: This product can expose you to chemicals including: DINP, which is known to the State of California to cause cancer, and DIDP, which is known to the State of California to cause birth defects or other reproductive harm. For more information
Product Certifications:
UL || CSA || NOM
Ambient Air Temperature For Storage:
-50-85 °C
Network Frequency:
50/60 Hz
Line Rated Current:
225-225 A
Tightening Torque:
25-25 N.m 95-185 mm² (AWG 3/0...350 kcmil)
Sustainable Offer Status:
Green Premium product
Device Application:
distribution
Operating Altitude:
< 6561.68 ft (2000 m) without derating || 5000 m with derating
Product Or Component Type:
circuit breaker
Communication Interface:
Modbus || Ethernet
[Uimp] Rated Impulse Withstand Voltage:
8 kV IEC 60947-2
Eu Rohs Directive:
Compliant with Exemptions
Long Time Pick-Up Adjustment Range:
0.25...1 x In
Magnetic Hold Current:
1125 A
Magnetic Tripping Current:
2250-2250 A
Reach Regulation:
Reference contains Substances of Very High Concern above the threshold
