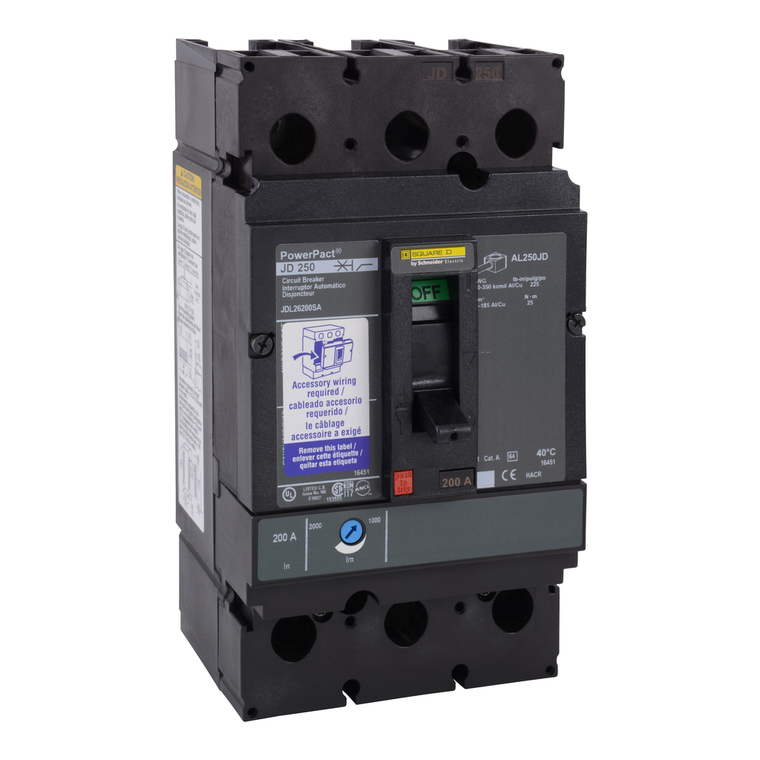

Schneider Electric JDL26250LC Molded Case Circuit Breaker 600V 250A
Schneider Electric
$1200 Minimum Order for Non-stock Items or $60 Addl Schneider Handling Fee Applies
PowerPacT J-Frame circuit breakers are designed to protect electrical systems from damage caused by overloads and short circuits. PowerPacT J-Frame circuit breakers are available with either thermal magnetic or MicroLogic electronic trip protection units. This PowerPacT J-Frame circuit breaker provides thermal magnetic circuit protection with a breaking capacity of 14kA at 600VAC. All PowerPacT J-Frame circuit breakers are equipped with dual-break rotating contacts that reduce the amount of peak current during a short circuit fault. All PowerPacT circuit breakers have an integral push-to-trip button in the cover to manually trip the circuit breaker. PowerPacT J circuit breakers are available in 2 and 3-pole unit mount and I-Line constructions. This breaker has lugs on both the line and load sides. This PowerPacT J, 250A, 2 pole, circuit breaker has a breaking capacity of 14kA at 600VAC. This circuit breaker has a continuous current rating of 80%. This unit includes copper lugs. PowerPacT J circuit breakers comply to UL, CSA, NOM, and IEC standards and are CE marked.
- Height:
- 191 mm
- Range:
- PowerPact
- Width:
- 104 mm
- Communication Interface:
- Modbus || Ethernet
- [Ics] Rated Service Breaking Capacity:
- 25 kA 220/240 V AC 50/60 Hz IEC 60947-2 || 18 kA 380/440/415 V AC 50/60 Hz IEC 60947-2 || 14 kA 500/525 V AC 50/60 Hz IEC 60947-2 || 20 kA 250 V DC IEC 60947-2 || 20 kA 500 V DC IEC 60947-2
- Product Name:
- PowerPact J
- Magnetic Hold Current:
- 1250 A
- Mounting Mode:
- unit mount lug)
- Product Or Component Type:
- circuit breaker
- Electrical Connection:
- lugs, line || lugs, load
- Depth:
- 86 mm
- Circularity Profile:
- ENVEOLI2206031EN
- Tightening Torque:
- 25-25 N.m 95-185 mm² (AWG 3/0...350 kcmil)
- Mercury Free:
- Yes
- Sustainable Offer Status:
- Green Premium product
- Product Certifications:
- UL || CSA || NOM
- China Rohs Regulation:
- Product out of China RoHS scope. Substance declaration for your information.
- Continuous Current Rating:
- 0.8
- Line Rated Current:
- 250-250 A
- Local Signalling:
- switched off (OFF) 1 trip indicator green)
- Net Weight:
- 2.4 kg
- Device Application:
- distribution
- Quality Labels:
- CE
- Breaking Capacity:
- 25 kA 240 V AC 50/60 Hz UL 489 || 18 kA 480 V AC 50/60 Hz || 14 kA 600 V AC 50/60 Hz || 20 kA 250 V DC
- Circuit Breaker Application:
- HACR rated
- Operating Altitude:
- < 6561.68 ft (2000 m) without derating || 5000 m with derating
- Suitability For Isolation:
- yes IEC 60947-2
- Mounting Support:
- lug
- Network Frequency:
- 50/60 Hz
- Wire Stripping Length:
- 25 mm
- California Proposition 65:
- WARNING: This product can expose you to chemicals including: DINP, which is known to the State of California to cause cancer, and DIDP, which is known to the State of California to cause birth defects or other reproductive harm. For more information
- [Ue] Rated Operational Voltage:
- 600 V AC 50/60 Hz IEC 60947-3
- Number Of Slots:
- 2 auxiliary switch OF plug-in) || 1 alarm switch SD plug-in) || 1 overcurrent trip switch SDE plug-in) || 1 voltage release MN or MX plug-in)
- Magnetic Tripping Current:
- 2500-2500 A
- Control Type:
- toggle
- Breaking Capacity Code:
- D
- [Ui] Rated Insulation Voltage:
- 750 V IEC 60947-2
- Protection Type:
- overload protection || short-circuit protection
- [Uimp] Rated Impulse Withstand Voltage:
- 8 kV IEC 60947-2
- Poles Description:
- 2P
- Ambient Air Temperature For Storage:
- -50-85 °C
- Trip Unit Technology:
- thermal-magnetic
- Warranty:
- 18 months
- Environmental Disclosure:
- ENVPEP2206031EN
- Ip Degree Of Protection:
- front cover IP40
- Long Time Pick-Up Adjustment Range:
- 0.25...1 x In
- Eu Rohs Directive:
- Compliant with Exemptions
- Ambient Air Temperature For Operation:
- -2-70 °C
- Pollution Degree:
- 3 IEC 60947-1
- Awg Gauge:
- AWG 3/0...350 kcmil aluminium/copper terminals
- Reach Regulation:
- Reference contains Substances of Very High Concern above the threshold
- Utilisation Category:
- category A
- Pvc Free:
- Yes
- Rohs Exemption Information:
- Yes
- Accessory / Separate Part Type:
- copper lug
- Standards:
- UL || CSA || NEMA || NOM-003-SCFI-2000 || IEC 60947-2
- Terminal Identifier:
- AL250JD
- Brochure:
- View
- Catalog:
- View
- Datasheet:
- View
