Schneider Electric JDL36175AAUO Molded Case Circuit Breaker 600V 175A
Schneider Electric
$5,616.00
(No reviews yet)
Write a Review
Write a Review
Schneider Electric

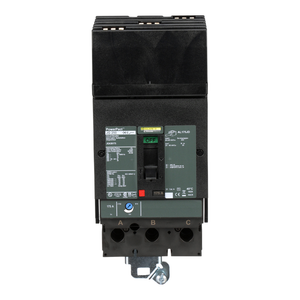

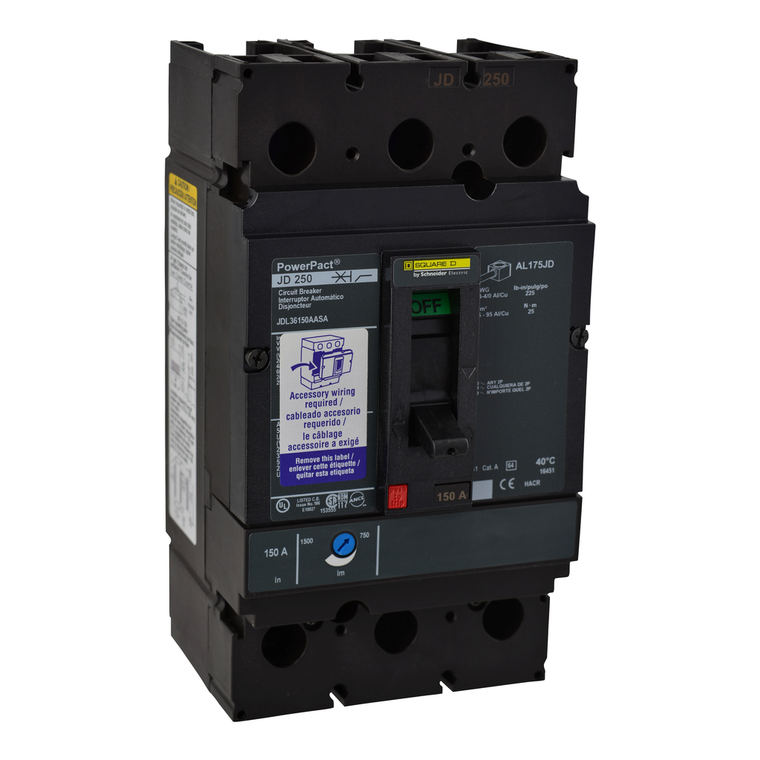

Schneider Electric JDL36175AAUO Molded Case Circuit Breaker 600V 175A
PowerPacT J-Frame circuit breakers are designed to protect electrical systems from damage caused by overloads and short circuits. PowerPacT J-Frame circuit breakers are available with either thermal magnetic or MicroLogic electronic trip protection units. This PowerPacT J-Frame circuit breaker provides thermal magnetic circuit protection with a breaking capacity of 14kA at 600VAC. All PowerPacT J-Frame circuit breakers are equipped with dual-break rotating contacts that reduce the amount of peak current during a short circuit fault. All PowerPacT circuit breakers have an integral push-to-trip button in the cover to manually trip the circuit breaker. PowerPacT J circuit breakers are available in 2 and 3-pole unit mount and I-Line constructions. This breaker has lugs on both the line and load sides. This PowerPacT J, 175A, 3 pole, circuit breaker has a breaking capacity of 14kA at 600VAC. This circuit breaker has a continuous current rating of 80%. This unit includes a factory installed 1A/1B auxiliary switch and 24VDC undervoltage trip. PowerPacT J circuit breakers comply to UL, CSA, NOM, and IEC standards and are CE marked.
- Awg Gauge:
- AWG 4...AWG 4/0 aluminium/copper terminal
- Breaking Capacity Code:
- D
- Long Time Pick-Up Adjustment Range:
- 0.25...1 x In
- [Ue] Rated Operational Voltage:
- 600 V AC 50/60 Hz IEC 60947-3
- Ambient Air Temperature For Storage:
- -50-85 °C
- Mounting Mode:
- unit mount lug)
- Device Application:
- distribution
- Product Or Component Type:
- circuit breaker
- Continuous Current Rating:
- 0.8
- [Uimp] Rated Impulse Withstand Voltage:
- 8 kV IEC 60947-2
- Tightening Torque:
- 25-25 N.m 25-95 mm² (AWG 4...AWG 4/0)
- Mercury Free:
- Yes
- Terminal Identifier:
- AL175JD
- Trip Unit Technology:
- thermal-magnetic
- Reach Regulation:
- Reference contains Substances of Very High Concern above the threshold
- [Ics] Rated Service Breaking Capacity:
- 25 kA 220/240 V AC 50/60 Hz IEC 60947-2 || 18 kA 380/440/415 V AC 50/60 Hz IEC 60947-2 || 14 kA 500/525 V AC 50/60 Hz IEC 60947-2 || 20 kA 250 V DC IEC 60947-2 || 20 kA 500 V DC IEC 60947-2
- Standards:
- UL || CSA || NEMA || NOM-003-SCFI-2000 || IEC 60947-2
- Net Weight:
- 2.4 kg
- Local Signalling:
- switched off (OFF) 1 trip indicator green)
- Height:
- 191 mm
- Ip Degree Of Protection:
- front cover IP40
- Electrical Connection:
- lugs, line || lugs, load
- Product Name:
- PowerPact J
- Control Type:
- toggle
- Communication Interface:
- Modbus || Ethernet
- California Proposition 65:
- WARNING: This product can expose you to chemicals including: DINP, which is known to the State of California to cause cancer, and DIDP, which is known to the State of California to cause birth defects or other reproductive harm. For more information
- Environmental Disclosure:
- ENVPEP2206031EN
- Poles Description:
- 3P
- Wire Stripping Length:
- 25 mm
- Network Frequency:
- 50/60 Hz
- Depth:
- 86 mm
- Circuit Breaker Application:
- HACR rated
- Ambient Air Temperature For Operation:
- -2-70 °C
- Line Rated Current:
- 175-175 A
- Protection Type:
- overload protection || short-circuit protection
- Sustainable Offer Status:
- Green Premium product
- China Rohs Regulation:
- Product out of China RoHS scope. Substance declaration for your information.
- [Ui] Rated Insulation Voltage:
- 750 V IEC 60947-2
- Magnetic Tripping Current:
- 1750-1750 A
- Pollution Degree:
- 3 IEC 60947-1
- Accessory / Separate Part Type:
- auxiliary switch 24 V AC/DC 1 NO + 1 NC cover frame || voltage release 24 V DC compartment
- Utilisation Category:
- category A
- Product Certifications:
- UL || CSA || NOM
- Circularity Profile:
- ENVEOLI2206031EN
- Warranty:
- 18 months
- Pvc Free:
- Yes
- Width:
- 104 mm
- Mounting Support:
- lug
- Magnetic Hold Current:
- 875 A
- Quality Labels:
- CE
- Eu Rohs Directive:
- Compliant with Exemptions
- Suitability For Isolation:
- yes IEC 60947-2
- Number Of Slots:
- 2 auxiliary switch OF plug-in) || 1 alarm switch SD plug-in) || 1 overcurrent trip switch SDE plug-in) || 1 voltage release MN or MX plug-in)
- Rohs Exemption Information:
- Yes
- Range:
- PowerPact
- Breaking Capacity:
- 25 kA 240 V AC 50/60 Hz UL 489 || 18 kA 480 V AC 50/60 Hz || 14 kA 600 V AC 50/60 Hz || 20 kA 250 V DC
- Operating Altitude:
- < 6561.68 ft (2000 m) without derating || 5000 m with derating
