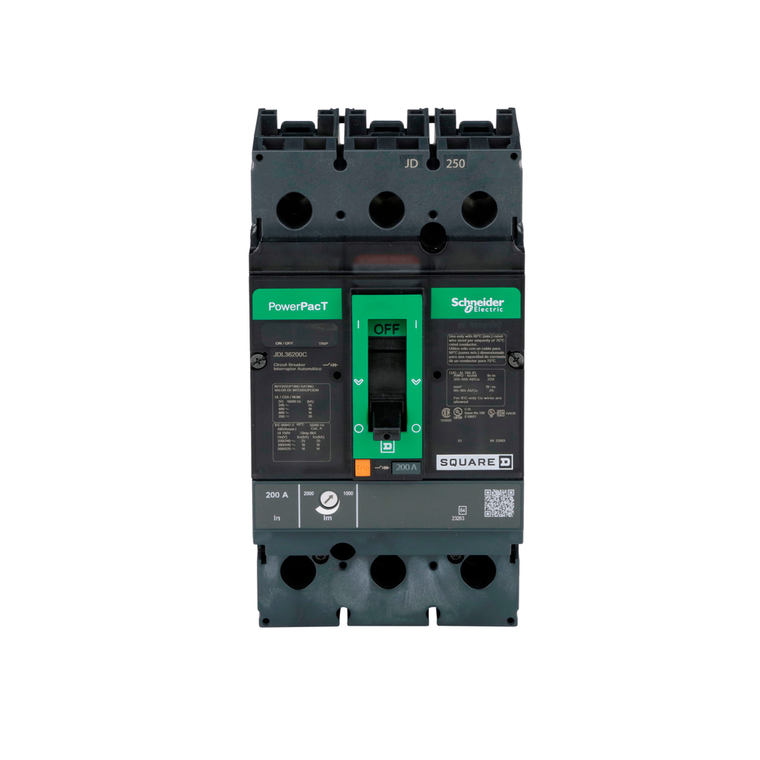

Schneider Electric JDL36200C Molded Case Circuit Breaker 600V 200A
Schneider Electric
$1200 Minimum Order for Non-stock Items or $60 Addl Schneider Handling Fee Applies
PowerPacT J-Frame circuit breakers are designed to protect electrical systems from damage caused by overloads and short circuits. PowerPacT J-Frame circuit breakers are available with either thermal magnetic or MicroLogic electronic trip protection units. This PowerPacT J-Frame circuit breaker provides thermal magnetic circuit protection with a breaking capacity of 14kA at 600VAC. All PowerPacT J-Frame circuit breakers are equipped with dual-break rotating contacts that reduce the amount of peak current during a short circuit fault. All PowerPacT circuit breakers have an integral push-to-trip button in the cover to manually trip the circuit breaker. PowerPacT J circuit breakers are available in 2 and 3-pole unit mount and I-Line constructions. This breaker has lugs on both the line and load sides. This PowerPacT J, 200A, 3 pole, circuit breaker has a breaking capacity of 14kA at 600VAC. This circuit breaker has a continuous current rating of 100%. PowerPacT J circuit breakers comply to UL, CSA, NOM, and IEC standards and are CE marked.
- Pollution Degree:
- 3 IEC 60947-1
- Protection Type:
- overload protection || short-circuit protection
- California Proposition 65:
- WARNING: This product can expose you to chemicals including: DINP, which is known to the State of California to cause cancer, and DIDP, which is known to the State of California to cause birth defects or other reproductive harm. For more information
- Communication Interface:
- Modbus || Ethernet
- Ip Degree Of Protection:
- front cover IP40
- [Ics] Rated Service Breaking Capacity:
- 25 kA 220/240 V AC 50/60 Hz IEC 60947-2 || 18 kA 380/440/415 V AC 50/60 Hz IEC 60947-2 || 14 kA 500/525 V AC 50/60 Hz IEC 60947-2 || 20 kA 250 V DC IEC 60947-2 || 20 kA 500 V DC IEC 60947-2
- China Rohs Regulation:
- Product out of China RoHS scope. Substance declaration for your information.
- Awg Gauge:
- AWG 3/0...350 kcmil aluminium/copper terminals
- Ambient Air Temperature For Operation:
- -2-70 °C
- Number Of Slots:
- 2 auxiliary switch OF plug-in) || 1 alarm switch SD plug-in) || 1 overcurrent trip switch SDE plug-in) || 1 voltage release MN or MX plug-in)
- Warranty:
- 18 months
- Suitability For Isolation:
- yes IEC 60947-2
- [Ui] Rated Insulation Voltage:
- 750 V IEC 60947-2
- Pvc Free:
- Yes
- Product Name:
- PowerPact J
- Net Weight:
- 2.4 kg
- Depth:
- 86 mm
- Terminal Identifier:
- AL250JD
- Line Rated Current:
- 200-200 A
- [Ue] Rated Operational Voltage:
- 600 V AC 50/60 Hz IEC 60947-3
- Device Application:
- distribution
- Long Time Pick-Up Adjustment Range:
- 0.25...1 x In
- Height:
- 191 mm
- Operating Altitude:
- < 6561.68 ft (2000 m) without derating || 5000 m with derating
- Continuous Current Rating:
- 1
- Quality Labels:
- CE
- Breaking Capacity:
- 25 kA 240 V AC 50/60 Hz UL 489 || 18 kA 480 V AC 50/60 Hz || 14 kA 600 V AC 50/60 Hz || 20 kA 250 V DC
- Product Or Component Type:
- circuit breaker
- Control Type:
- toggle
- Range:
- PowerPact
- Standards:
- UL || CSA || NEMA || NOM-003-SCFI-2000 || IEC 60947-2
- Reach Regulation:
- Reference contains Substances of Very High Concern above the threshold
- Product Certifications:
- UL || CSA || NOM
- Electrical Connection:
- lugs, line || lugs, load
- Wire Stripping Length:
- 25 mm
- Environmental Disclosure:
- ENVPEP2206031EN
- Network Frequency:
- 50/60 Hz
- Magnetic Hold Current:
- 1000 A
- Sustainable Offer Status:
- Green Premium product
- Magnetic Tripping Current:
- 2000-2000 A
- Circuit Breaker Application:
- HACR rated
- Tightening Torque:
- 25-25 N.m 95-185 mm² (AWG 3/0...350 kcmil)
- Width:
- 104 mm
- Ambient Air Temperature For Storage:
- -50-85 °C
- Poles Description:
- 3P
- Mounting Mode:
- unit mount lug)
- Trip Unit Technology:
- thermal-magnetic
- Circularity Profile:
- ENVEOLI2206031EN
- Rohs Exemption Information:
- Yes
- Breaking Capacity Code:
- D
- Eu Rohs Directive:
- Compliant with Exemptions
- Local Signalling:
- switched off (OFF) 1 trip indicator green)
- Utilisation Category:
- category A
- Mounting Support:
- lug
- Mercury Free:
- Yes
- [Uimp] Rated Impulse Withstand Voltage:
- 8 kV IEC 60947-2
- Brochure:
- View
- Catalog:
- View
- Datasheet:
- View
