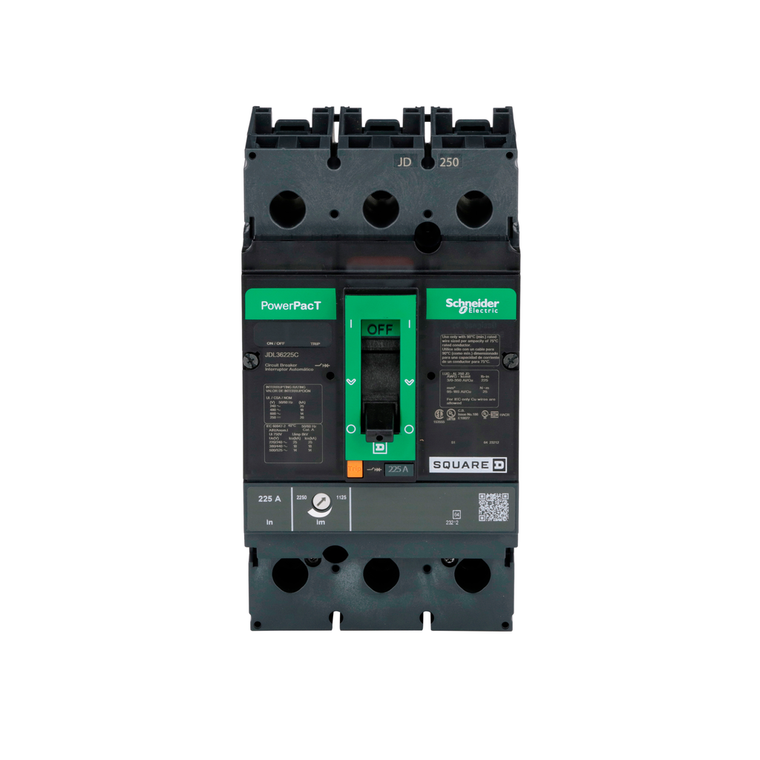

Schneider Electric JDL36225C Molded Case Circuit Breaker 600V 225A

Schneider Electric JDL36225C Molded Case Circuit Breaker 600V 225A

Schneider Electric
SKU:
JDL36225C
|
UPC:
785901637233
Availability:
Contact us to confirm availability and lead times.
$3,276.00
Condition:
New
$1200 Minimum Order for Non-stock Items or $60 Addl Schneider Handling Fee Applies
Current Stock:
Description
PowerPacT J-Frame circuit breakers are designed to protect electrical systems from damage caused by overloads and short circuits. PowerPacT J-Frame circuit breakers are available with either thermal magnetic or MicroLogic electronic trip protection units. This PowerPacT J-Frame circuit breaker provides thermal magnetic circuit protection with a breaking capacity of 14kA at 600VAC. All PowerPacT J-Frame circuit breakers are equipped with dual-break rotating contacts that reduce the amount of peak current during a short circuit fault. All PowerPacT circuit breakers have an integral push-to-trip button in the cover to manually trip the circuit breaker. PowerPacT J circuit breakers are available in 2 and 3-pole unit mount and I-Line constructions. This breaker has lugs on both the line and load sides. This PowerPacT J, 225A, 3 pole, circuit breaker has a breaking capacity of 14kA at 600VAC. This circuit breaker has a continuous current rating of 100%. PowerPacT J circuit breakers comply to UL, CSA, NOM, and IEC standards and are CE marked.
Additional Information
Mounting Support:
lug
Tightening Torque:
25-25 N.m 95-185 mm² (AWG 3/0...350 kcmil)
Sustainable Offer Status:
Green Premium product
Wire Stripping Length:
25 mm
Pvc Free:
Yes
China Rohs Regulation:
Product out of China RoHS scope. Substance declaration for your information.
Control Type:
toggle
Circuit Breaker Application:
HACR rated
Suitability For Isolation:
yes IEC 60947-2
Height:
191 mm
Utilisation Category:
category A
Environmental Disclosure:
ENVPEP2206031EN
Warranty:
18 months
Line Rated Current:
225-225 A
Quality Labels:
CE
Trip Unit Technology:
thermal-magnetic
[Ue] Rated Operational Voltage:
600 V AC 50/60 Hz IEC 60947-3
Reach Regulation:
Reference contains Substances of Very High Concern above the threshold
Circularity Profile:
ENVEOLI2206031EN
[Ics] Rated Service Breaking Capacity:
25 kA 220/240 V AC 50/60 Hz IEC 60947-2 || 18 kA 380/440/415 V AC 50/60 Hz IEC 60947-2 || 14 kA 500/525 V AC 50/60 Hz IEC 60947-2 || 20 kA 250 V DC IEC 60947-2 || 20 kA 500 V DC IEC 60947-2
Long Time Pick-Up Adjustment Range:
0.25...1 x In
Communication Interface:
Modbus || Ethernet
Width:
104 mm
Product Certifications:
UL || CSA || NOM
Eu Rohs Directive:
Compliant with Exemptions
Magnetic Tripping Current:
2250-2250 A
Ambient Air Temperature For Operation:
-2-70 °C
Local Signalling:
switched off (OFF) 1 trip indicator green)
Network Frequency:
50/60 Hz
Poles Description:
3P
Product Or Component Type:
circuit breaker
Electrical Connection:
lugs, line || lugs, load
Product Name:
PowerPact J
Standards:
UL || CSA || NEMA || NOM-003-SCFI-2000 || IEC 60947-2
Depth:
86 mm
Mercury Free:
Yes
Pollution Degree:
3 IEC 60947-1
California Proposition 65:
WARNING: This product can expose you to chemicals including: DINP, which is known to the State of California to cause cancer, and DIDP, which is known to the State of California to cause birth defects or other reproductive harm. For more information
Continuous Current Rating:
1
Net Weight:
2.4 kg
Rohs Exemption Information:
Yes
[Uimp] Rated Impulse Withstand Voltage:
8 kV IEC 60947-2
Mounting Height:
4.5 in
Device Application:
distribution
Breaking Capacity:
25 kA 240 V AC 50/60 Hz UL 489 || 18 kA 480 V AC 50/60 Hz || 14 kA 600 V AC 50/60 Hz || 20 kA 250 V DC
Phase Connection:
ABC
Number Of Slots:
2 auxiliary switch OF plug-in) || 1 alarm switch SD plug-in) || 1 overcurrent trip switch SDE plug-in) || 1 voltage release MN or MX plug-in)
Terminal Identifier:
AL250JD
Breaking Capacity Code:
D
Mounting Mode:
unit mount lug)
Protection Type:
overload protection || short-circuit protection
Ip Degree Of Protection:
front cover IP40
Range:
PowerPact
Ambient Air Temperature For Storage:
-50-85 °C
[Ui] Rated Insulation Voltage:
750 V IEC 60947-2
Awg Gauge:
AWG 3/0...350 kcmil aluminium/copper terminals
Magnetic Hold Current:
1125 A
Operating Altitude:
< 6561.68 ft (2000 m) without derating || 5000 m with derating
