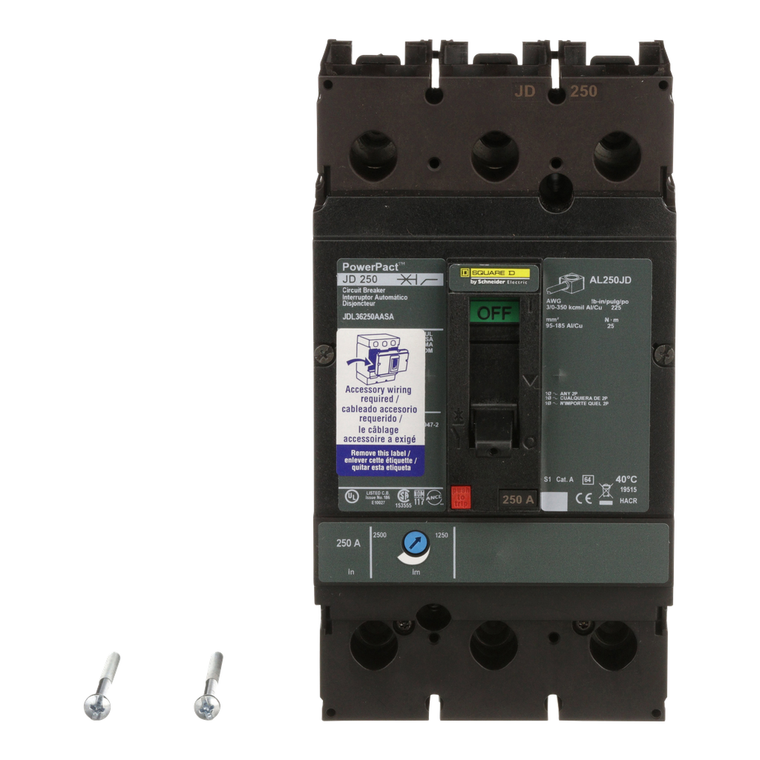

Schneider Electric JDL36250AASA Molded Case Circuit Breaker 600V 250A

Schneider Electric JDL36250AASA Molded Case Circuit Breaker 600V 250A

Schneider Electric
SKU:
JDL36250AASA
|
UPC:
785901946830
Availability:
Contact us to confirm availability and lead times.
$4,763.00
Condition:
New
$1200 Minimum Order for Non-stock Items or $60 Addl Schneider Handling Fee Applies
Current Stock:
Description
PowerPacT J-Frame circuit breakers are designed to protect electrical systems from damage caused by overloads and short circuits. PowerPacT J-Frame circuit breakers are available with either thermal magnetic or MicroLogic electronic trip protection units. This PowerPacT J-Frame circuit breaker provides thermal magnetic circuit protection with a breaking capacity of 14kA at 600VAC. All PowerPacT J-Frame circuit breakers are equipped with dual-break rotating contacts that reduce the amount of peak current during a short circuit fault. All PowerPacT circuit breakers have an integral push-to-trip button in the cover to manually trip the circuit breaker. PowerPacT J circuit breakers are available in 2 and 3-pole unit mount and I-Line constructions. This breaker has lugs on both the line and load sides. This PowerPacT J, 250A, 3 pole, circuit breaker has a breaking capacity of 14kA at 600VAC. This circuit breaker has a continuous current rating of 80%. This unit includes a factory installed 1A/1B auxiliary switch and 120VAC shunt trip. PowerPacT J circuit breakers comply to UL, CSA, NOM, and IEC standards and are CE marked.
Additional Information
Communication Interface:
Modbus || Ethernet
Sustainable Offer Status:
Green Premium product
Continuous Current Rating:
0.8
Magnetic Hold Current:
1250 A
Ip Degree Of Protection:
front cover IP40
Height:
191 mm
Circularity Profile:
ENVEOLI2206031EN
Net Weight:
2.4 kg
[Ui] Rated Insulation Voltage:
750 V IEC 60947-2
Electrical Connection:
lugs, line || lugs, load
Protection Type:
overload protection || short-circuit protection
Number Of Slots:
2 auxiliary switch OF plug-in) || 1 alarm switch SD plug-in) || 1 overcurrent trip switch SDE plug-in) || 1 voltage release MN or MX plug-in)
Mounting Mode:
unit mount lug)
[Ue] Rated Operational Voltage:
600 V AC 50/60 Hz IEC 60947-3
Range:
PowerPact
Warranty:
18 months
Standards:
UL || CSA || NEMA || NOM-003-SCFI-2000 || IEC 60947-2
Mercury Free:
Yes
Device Application:
distribution
Product Certifications:
UL || CSA || NOM
Local Signalling:
switched off (OFF) 1 trip indicator green)
Mounting Support:
lug
Utilisation Category:
category A
Tightening Torque:
25-25 N.m 95-185 mm² (AWG 3/0...350 kcmil)
Ambient Air Temperature For Operation:
-2-70 °C
[Uimp] Rated Impulse Withstand Voltage:
8 kV IEC 60947-2
Accessory / Separate Part Type:
auxiliary switch 24 V AC/DC 1 NO + 1 NC cover frame || shunt trip 110...130 V AC compartment
Poles Description:
3P
Wire Stripping Length:
25 mm
Reach Regulation:
Reference contains Substances of Very High Concern above the threshold
Breaking Capacity Code:
D
Terminal Identifier:
AL250JD
Pollution Degree:
3 IEC 60947-1
Quality Labels:
CE
Network Frequency:
50/60 Hz
Magnetic Tripping Current:
2500-2500 A
Operating Altitude:
< 6561.68 ft (2000 m) without derating || 5000 m with derating
Trip Unit Technology:
thermal-magnetic
Suitability For Isolation:
yes IEC 60947-2
Breaking Capacity:
25 kA 240 V AC 50/60 Hz UL 489 || 18 kA 480 V AC 50/60 Hz || 14 kA 600 V AC 50/60 Hz || 20 kA 250 V DC
Product Or Component Type:
circuit breaker
Awg Gauge:
AWG 3/0...350 kcmil aluminium/copper terminals
Environmental Disclosure:
ENVPEP2206031EN
Depth:
86 mm
Rohs Exemption Information:
Yes
Pvc Free:
Yes
[Ics] Rated Service Breaking Capacity:
25 kA 220/240 V AC 50/60 Hz IEC 60947-2 || 18 kA 380/440/415 V AC 50/60 Hz IEC 60947-2 || 14 kA 500/525 V AC 50/60 Hz IEC 60947-2 || 20 kA 250 V DC IEC 60947-2 || 20 kA 500 V DC IEC 60947-2
Width:
104 mm
Ambient Air Temperature For Storage:
-50-85 °C
Long Time Pick-Up Adjustment Range:
0.25...1 x In
Product Name:
PowerPact J
California Proposition 65:
WARNING: This product can expose you to chemicals including: DINP, which is known to the State of California to cause cancer, and DIDP, which is known to the State of California to cause birth defects or other reproductive harm. For more information
Control Type:
toggle
Circuit Breaker Application:
HACR rated
China Rohs Regulation:
Product out of China RoHS scope. Substance declaration for your information.
Line Rated Current:
250-250 A
Eu Rohs Directive:
Compliant with Exemptions
