Schneider Electric JDL36250CU33X Molded Case Circuit Breaker 600V 250A
Schneider Electric
$3,715.00
(No reviews yet)
Write a Review
Write a Review
Schneider Electric

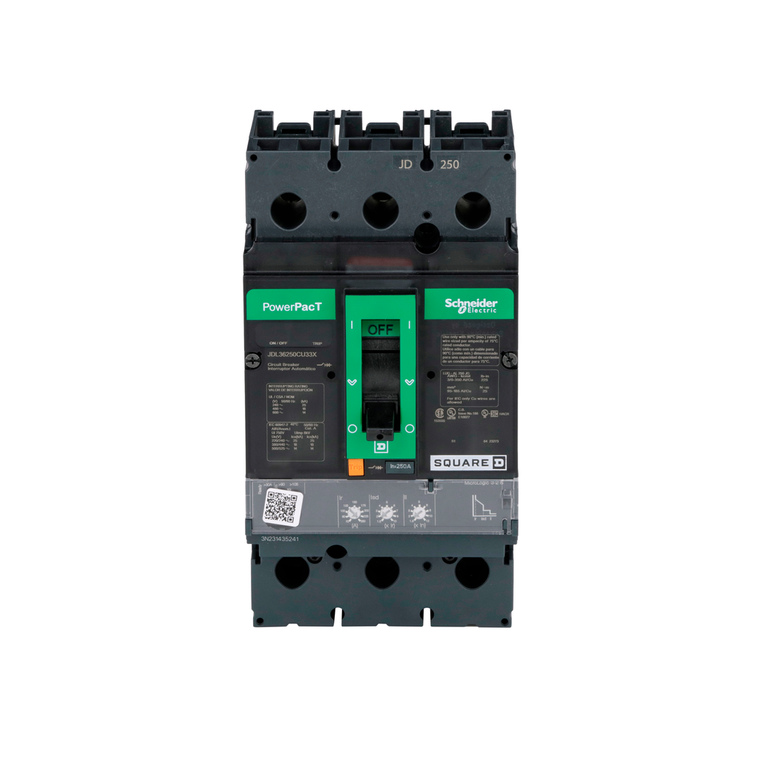

Schneider Electric JDL36250CU33X Molded Case Circuit Breaker 600V 250A
PowerPacT J-Frame circuit breakers are designed to protect electrical systems from damage caused by overloads and short circuits. PowerPacT J-Frame circuit breakers are available with either thermal magnetic or MicroLogic electronic trip protection units. This PowerPacT J-Frame circuit breaker provides Micrologic Standard with a 3.2S trip unit and an LSI function with a breaking capacity of 14kA at 600VAC. All PowerPacT J-Frame circuit breakers are equipped with dual-break rotating contacts that reduce the amount of peak current during a short circuit fault. All PowerPacT circuit breakers have an integral push-to-trip button in the cover to manually trip the circuit breaker. PowerPacT J circuit breakers are available in 2 and 3-pole unit mount and I-Line constructions. This breaker has lugs on both the line and load sides. This PowerPacT J, 250A, 3 pole, circuit breaker has a breaking capacity of 14kA at 600VAC. This circuit breaker has a continuous current rating of 100%. PowerPacT J circuit breakers comply to UL, CSA, NOM, and IEC standards and are CE marked.
- Range:
- PowerPact
- Mounting Support:
- lug
- Terminal Identifier:
- AL250JD
- Warranty:
- 18 months
- Mercury Free:
- Yes
- [Ue] Rated Operational Voltage:
- 600 V AC 50/60 Hz IEC 60947-3
- Suitability For Isolation:
- yes IEC 60947-2
- Utilisation Category:
- category A
- Ambient Air Temperature For Storage:
- -50-85 °C
- Product Certifications:
- UL || CSA || NOM
- Electrical Connection:
- lugs, line || lugs, load
- Network Frequency:
- 50/60 Hz
- China Rohs Regulation:
- Product out of China RoHS scope. Substance declaration for your information.
- Protection Type:
- overload protection || short-circuit protection
- Circularity Profile:
- ENVEOLI2206032EN
- Ip Degree Of Protection:
- front cover IP40
- Net Weight:
- 2.4 kg
- Pvc Free:
- Yes
- Long Time Pick-Up Adjustment Range:
- 0.25...1 x In
- Device Application:
- distribution
- Reach Regulation:
- Reference contains Substances of Very High Concern above the threshold
- Circuit Breaker Application:
- HACR rated
- Pollution Degree:
- 3 IEC 60947-1
- Communication Interface:
- Modbus || Ethernet
- Ambient Air Temperature For Operation:
- -2-70 °C
- Number Of Slots:
- 2 auxiliary switch OF plug-in) || 1 alarm switch SD plug-in) || 1 overcurrent trip switch SDE plug-in) || 1 voltage release MN or MX plug-in)
- Control Type:
- toggle
- Trip Unit Technology:
- electronic, standard, MicroLogic 3.2 S, LSI
- Mounting Mode:
- unit mount lug)
- Environmental Disclosure:
- ENVPEP2206032EN
- Continuous Current Rating:
- 1
- Height:
- 191 mm
- Rohs Exemption Information:
- Yes
- Tightening Torque:
- 25-25 N.m 95-185 mm² (AWG 3/0...350 kcmil)
- Trip Unit Name:
- MicroLogic 3.2 S
- Sustainable Offer Status:
- Green Premium product
- Quality Labels:
- CE
- Depth:
- 86 mm
- Width:
- 104 mm
- [Uimp] Rated Impulse Withstand Voltage:
- 8 kV IEC 60947-2
- California Proposition 65:
- WARNING: This product can expose you to chemicals including: DINP, which is known to the State of California to cause cancer, and DIDP, which is known to the State of California to cause birth defects or other reproductive harm. For more information
- Standards:
- UL || CSA || NEMA || NOM-003-SCFI-2000 || IEC 60947-2
- Poles Description:
- 3P
- Awg Gauge:
- AWG 3/0...350 kcmil aluminium/copper terminals
- Line Rated Current:
- 250-250 A
- [Ics] Rated Service Breaking Capacity:
- 25 kA 220/240 V AC 50/60 Hz IEC 60947-2 || 18 kA 380/440/415 V AC 50/60 Hz IEC 60947-2 || 14 kA 500/525 V AC 50/60 Hz IEC 60947-2 || 20 kA 250 V DC IEC 60947-2 || 20 kA 500 V DC IEC 60947-2
- Wire Stripping Length:
- 25 mm
- Eu Rohs Directive:
- Compliant with Exemptions
- [Ui] Rated Insulation Voltage:
- 750 V IEC 60947-2
- Operating Altitude:
- < 6561.68 ft (2000 m) without derating || 5000 m with derating
- Local Signalling:
- ready 1 LED green) || alarm 1 LED 90 % Ir orange) || alarm 1 LED 105 % Ir red) || switched off (OFF) 1 trip indicator green)
- Product Or Component Type:
- circuit breaker
- Breaking Capacity:
- 25 kA 240 V AC 50/60 Hz UL 489 || 18 kA 480 V AC 50/60 Hz || 14 kA 600 V AC 50/60 Hz || 20 kA 250 V DC
- Product Name:
- PowerPact J
- Breaking Capacity Code:
- D
- Brochure:
- View
- Catalog:
- View
- Datasheet:
- View
