Schneider Electric JDP26200 Molded Case Circuit Breaker 600V 200A
Schneider Electric
$3,262.50
(No reviews yet)
Write a Review
Write a Review
Schneider Electric

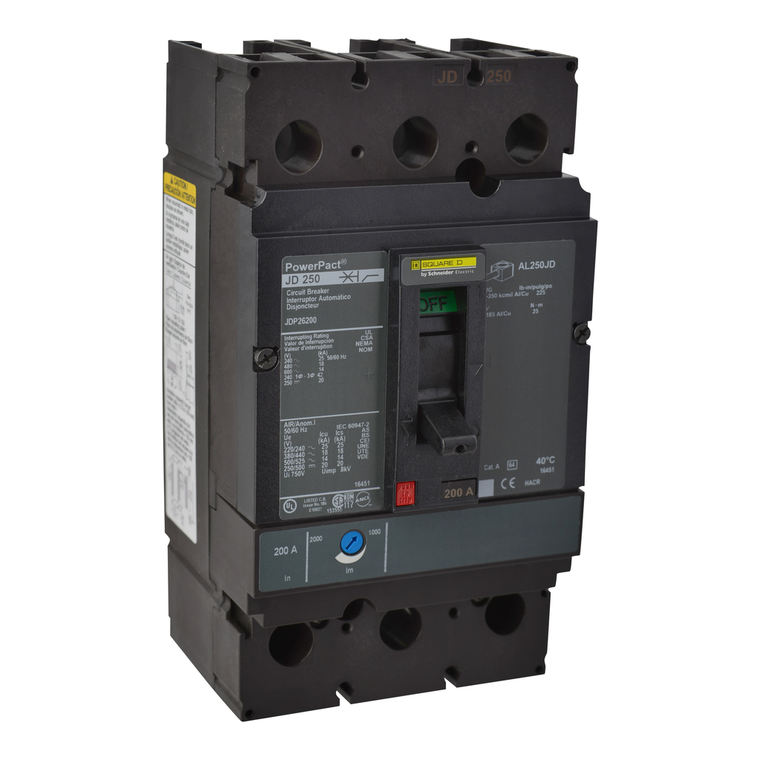

Schneider Electric JDP26200 Molded Case Circuit Breaker 600V 200A
PowerPacT J-Frame circuit breakers are designed to protect electrical systems from damage caused by overloads and short circuits. PowerPacT J-Frame circuit breakers are available with either thermal magnetic or MicroLogic electronic trip protection units. This PowerPacT J-Frame circuit breaker provides thermal magnetic circuit protection with a breaking capacity of 14kA at 600VAC. All PowerPacT J-Frame circuit breakers are equipped with dual-break rotating contacts that reduce the amount of peak current during a short circuit fault. All PowerPacT circuit breakers have an integral push-to-trip button in the cover to manually trip the circuit breaker. PowerPacT J circuit breakers are available in 2 and 3-pole unit mount and I-Line constructions. This unit has terminal nuts on the line side and lugs on the load side. This PowerPacT J, 200A, 2 pole, circuit breaker has a breaking capacity of 14kA at 600VAC. This circuit breaker has a continuous current rating of 80%. PowerPacT J circuit breakers comply to UL, CSA, NOM, and IEC standards and are CE marked.
- Ambient Air Temperature For Operation:
- -2-70 °C
- Trip Unit Technology:
- thermal-magnetic
- [Ics] Rated Service Breaking Capacity:
- 25 kA 220/240 V AC 50/60 Hz IEC 60947-2 || 18 kA 380/440/415 V AC 50/60 Hz IEC 60947-2 || 14 kA 500/525 V AC 50/60 Hz IEC 60947-2 || 20 kA 250 V DC IEC 60947-2 || 20 kA 500 V DC IEC 60947-2
- Height:
- 191 mm
- [Ue] Rated Operational Voltage:
- 600 V AC 50/60 Hz IEC 60947-3
- Sustainable Offer Status:
- Green Premium product
- Pollution Degree:
- 3 IEC 60947-1
- Poles Description:
- 2P
- Suitability For Isolation:
- yes IEC 60947-2
- Mounting Height:
- 4.5 in
- Control Type:
- toggle
- Product Certifications:
- UL || CSA || NOM
- Quality Labels:
- CE
- Product Name:
- PowerPact J
- Ip Degree Of Protection:
- front cover IP40
- [Ui] Rated Insulation Voltage:
- 750 V IEC 60947-2
- Local Signalling:
- switched off (OFF) 1 trip indicator green)
- Utilisation Category:
- category A
- Wire Stripping Length:
- 25 mm
- Phase Connection:
- ABC
- Environmental Disclosure:
- ENVPEP1311008EN
- Mounting Mode:
- unit mount lug)
- Product Or Component Type:
- circuit breaker
- Net Weight:
- 2.4 kg
- Circuit Breaker Application:
- HACR rated
- Communication Interface:
- Modbus || Ethernet
- Ambient Air Temperature For Storage:
- -50-85 °C
- Device Application:
- distribution
- Breaking Capacity Code:
- D
- Width:
- 104 mm
- Standards:
- UL || CSA || NEMA || NOM-003-SCFI-2000 || IEC 60947-2
- Magnetic Tripping Current:
- 2000-2000 A
- Mounting Support:
- lug
- Rohs Exemption Information:
- Yes
- Eu Rohs Directive:
- Compliant
- Magnetic Hold Current:
- 1000 A
- Mercury Free:
- Yes
- Line Rated Current:
- 200-200 A
- Pvc Free:
- Yes
- Depth:
- 86 mm
- Long Time Pick-Up Adjustment Range:
- 0.25...1 x In
- Number Of Slots:
- 2 auxiliary switch OF plug-in) || 1 alarm switch SD plug-in) || 1 overcurrent trip switch SDE plug-in) || 1 voltage release MN or MX plug-in)
- Terminal Identifier:
- AL250JD
- Awg Gauge:
- AWG 3/0...350 kcmil aluminium/copper terminals
- Electrical Connection:
- terminal nut, line || lugs, load
- Circularity Profile:
- ENVEOLI1311008
- Network Frequency:
- 50/60 Hz
- China Rohs Regulation:
- Product out of China RoHS scope. Substance declaration for your information.
- Warranty:
- 18 months
- California Proposition 65:
- WARNING: This product can expose you to chemicals including: DINP, which is known to the State of California to cause cancer, and DIDP, which is known to the State of California to cause birth defects or other reproductive harm. For more information
- Breaking Capacity:
- 25 kA 240 V AC 50/60 Hz UL 489 || 18 kA 480 V AC 50/60 Hz || 14 kA 600 V AC 50/60 Hz || 20 kA 250 V DC
- Tightening Torque:
- 25-25 N.m 95-185 mm² (AWG 3/0...350 kcmil)
- Range:
- PowerPact
- Operating Altitude:
- < 6561.68 ft (2000 m) without derating || 5000 m with derating
- [Uimp] Rated Impulse Withstand Voltage:
- 8 kV IEC 60947-2
- Continuous Current Rating:
- 0.8
- Protection Type:
- overload protection || short-circuit protection
- Brochure:
- View
- Catalog:
- View
- Datasheet:
- View
