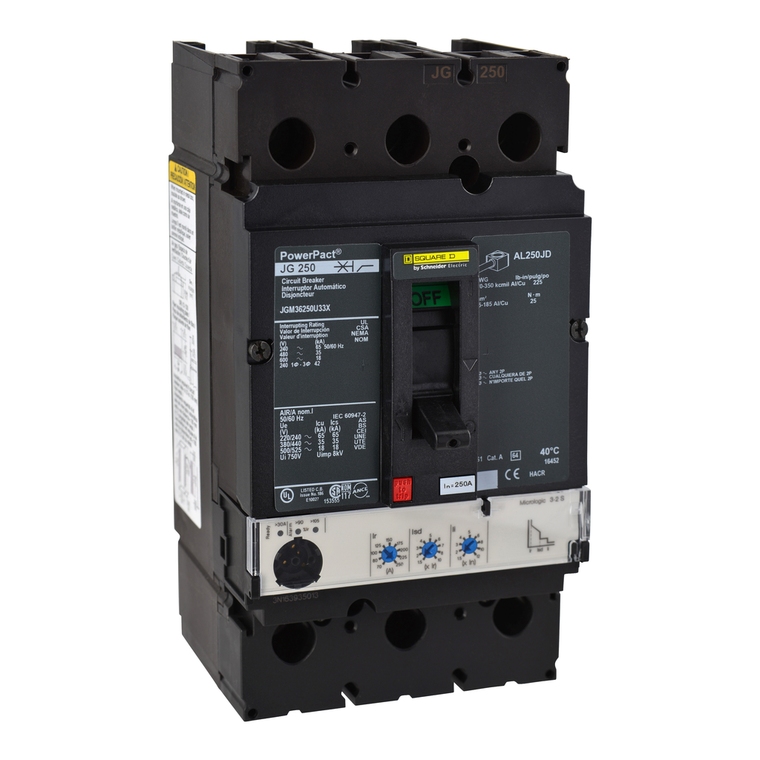

Schneider Electric JDP36250U31X Molded Case Circuit Breaker 600V 250A

Schneider Electric JDP36250U31X Molded Case Circuit Breaker 600V 250A

Schneider Electric
SKU:
JDP36250U31X
|
UPC:
3606486283226
Availability:
Contact us to confirm availability and lead times.
$2,957.00
Condition:
New
$1200 Minimum Order for Non-stock Items or $60 Addl Schneider Handling Fee Applies
Current Stock:
Description
PowerPacT J-Frame circuit breakers are designed to protect electrical systems from damage caused by overloads and short circuits. PowerPacT J-Frame circuit breakers are available with either thermal magnetic or MicroLogic electronic trip protection units. This PowerPacT J-Frame circuit breaker provides Micrologic Standard with a 3.2 trip unit and an LI function with a breaking capacity of 14kA at 600VAC. All PowerPacT J-Frame circuit breakers are equipped with dual-break rotating contacts that reduce the amount of peak current during a short circuit fault. All PowerPacT circuit breakers have an integral push-to-trip button in the cover to manually trip the circuit breaker. PowerPacT J circuit breakers are available in 2 and 3-pole unit mount and I-Line constructions. This unit has terminal nuts on the line side and lugs on the load side. This PowerPacT J, 250A, 3 pole, circuit breaker has a breaking capacity of 14kA at 600VAC. This circuit breaker has a continuous current rating of 80%. PowerPacT J circuit breakers comply to UL, CSA, NOM, and IEC standards and are CE marked.
Additional Information
Continuous Current Rating:
0.8
Standards:
UL || CSA || NEMA || NOM-003-SCFI-2000 || IEC 60947-2
Trip Unit Technology:
electronic, standard, MicroLogic 3.2, LI
Network Frequency:
50/60 Hz
Circuit Breaker Application:
HACR rated
Trip Unit Name:
MicroLogic 3.2
Mounting Mode:
unit mount lug)
California Proposition 65:
WARNING: This product can expose you to chemicals including: DINP, which is known to the State of California to cause cancer, and DIDP, which is known to the State of California to cause birth defects or other reproductive harm. For more information
Environmental Disclosure:
ENVPEP2206032EN
Rohs Exemption Information:
Yes
Eu Rohs Directive:
Compliant with Exemptions
Wire Stripping Length:
25 mm
Product Or Component Type:
circuit breaker
[Ui] Rated Insulation Voltage:
750 V IEC 60947-2
Height:
191 mm
Terminal Identifier:
AL250JD
Mercury Free:
Yes
Device Application:
distribution
Communication Interface:
Modbus || Ethernet
Reach Regulation:
Reference contains Substances of Very High Concern above the threshold
[Ics] Rated Service Breaking Capacity:
25 kA 220/240 V AC 50/60 Hz IEC 60947-2 || 18 kA 380/440/415 V AC 50/60 Hz IEC 60947-2 || 14 kA 500/525 V AC 50/60 Hz IEC 60947-2 || 20 kA 250 V DC IEC 60947-2 || 20 kA 500 V DC IEC 60947-2
Line Rated Current:
250-250 A
Range:
PowerPact
Sustainable Offer Status:
Green Premium product
Circularity Profile:
ENVEOLI2206032EN
Long Time Pick-Up Adjustment Range:
0.25...1 x In
Quality Labels:
CE
Depth:
86 mm
Control Type:
toggle
Local Signalling:
ready 1 LED green) || alarm 1 LED 90 % Ir orange) || alarm 1 LED 105 % Ir red) || switched off (OFF) 1 trip indicator green)
Product Certifications:
UL || CSA || NOM
Ip Degree Of Protection:
front cover IP40
Suitability For Isolation:
yes IEC 60947-2
Awg Gauge:
AWG 3/0...350 kcmil aluminium/copper terminals
Protection Type:
overload protection || short-circuit protection
Mounting Support:
lug
[Ue] Rated Operational Voltage:
600 V AC 50/60 Hz IEC 60947-3
Ambient Air Temperature For Storage:
-50-85 °C
Utilisation Category:
category A
Pvc Free:
Yes
Operating Altitude:
< 6561.68 ft (2000 m) without derating || 5000 m with derating
Product Name:
PowerPact J
China Rohs Regulation:
Product out of China RoHS scope. Substance declaration for your information.
Breaking Capacity:
25 kA 240 V AC 50/60 Hz UL 489 || 18 kA 480 V AC 50/60 Hz || 14 kA 600 V AC 50/60 Hz || 20 kA 250 V DC
Net Weight:
2.4 kg
Pollution Degree:
3 IEC 60947-1
Ambient Air Temperature For Operation:
-2-70 °C
Poles Description:
3P
Number Of Slots:
2 auxiliary switch OF plug-in) || 1 alarm switch SD plug-in) || 1 overcurrent trip switch SDE plug-in) || 1 voltage release MN or MX plug-in)
[Uimp] Rated Impulse Withstand Voltage:
8 kV IEC 60947-2
Breaking Capacity Code:
D
Electrical Connection:
terminal nut, line || lugs, load
Width:
104 mm
Tightening Torque:
25-25 N.m 95-185 mm² (AWG 3/0...350 kcmil)
Brochure:
View
Catalog:
View
Datasheet:
View
