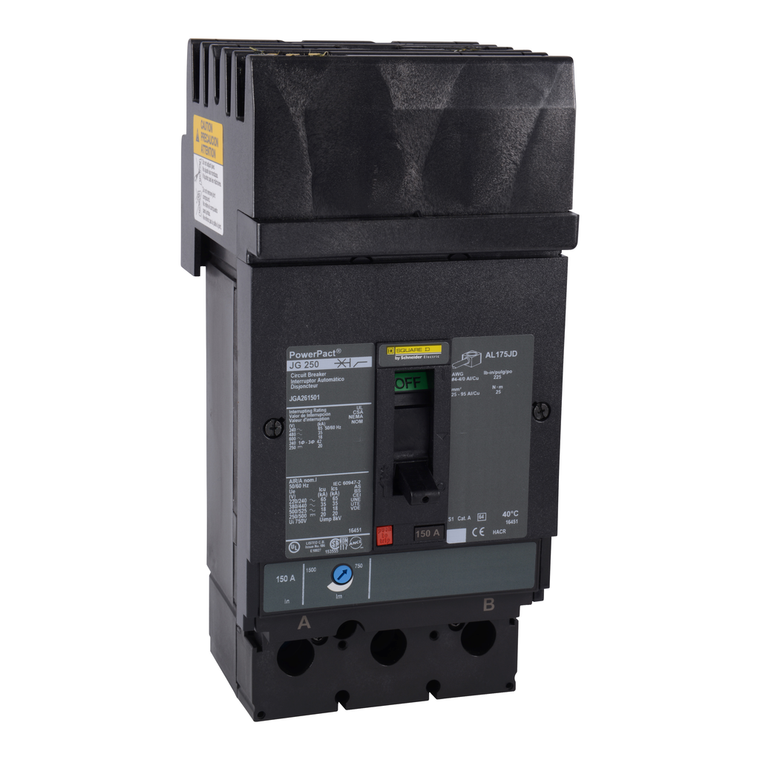

Schneider Electric JGA261502 Molded Case Circuit Breaker 600V 150A

Schneider Electric JGA261502 Molded Case Circuit Breaker 600V 150A

Schneider Electric
SKU:
JGA261502
|
UPC:
7.85901E+11
Availability:
Factory stock
$4,835.58
Condition:
New
$1200 Minimum Order for Non-stock Items or $60 Addl Schneider Handling Fee Applies
Current Stock:
Description
PowerPacT J-Frame circuit breakers are designed to protect electrical systems from damage caused by overloads and short circuits. PowerPacT J-Frame circuit breakers are available with either thermal magnetic or MicroLogic electronic trip protection units. This PowerPacT J-Frame circuit breaker provides thermal magnetic circuit protection with a breaking capacity of 18kA at 600VAC. All PowerPacT J-Frame circuit breakers are equipped with dual-break rotating contacts that reduce the amount of peak current during a short circuit fault. All PowerPacT circuit breakers have an integral push-to-trip button in the cover to manually trip the circuit breaker. PowerPacT J circuit breakers are available in 2 and 3-pole unit mount and I-Line constructions. PowerPacT J I-Line circuit breakers are available in I-Line construction for easy installation and removal in I-Line applications. This unit has I-Line terminations on the line side and mechanical lugs on the load side. This PowerPacT J, 150A, 2 pole, circuit breaker has a breaking capacity of 18kA at 600VAC. This circuit breaker has a continuous current rating of 80% with an AC phase connection. PowerPacT J circuit breakers comply to UL, CSA, NOM, and IEC standards and are CE marked.
Additional Information
[Ui] Rated Insulation Voltage:
750 V IEC 60947-2
Product Or Component Type:
circuit breaker
Magnetic Hold Current:
750 A
Pvc Free:
Yes
Ip Degree Of Protection:
front cover IP40
Range:
PowerPact
Circularity Profile:
ENVEOLI2206031EN
Number Of Slots:
2 auxiliary switch OF plug-in) || 1 alarm switch SD plug-in) || 1 overcurrent trip switch SDE plug-in) || 1 voltage release MN or MX plug-in)
Rohs Exemption Information:
Yes
Terminal Identifier:
AL175JD
Communication Interface:
Modbus || Ethernet
Local Signalling:
switched off (OFF) 1 trip indicator green)
Utilisation Category:
category A
Mounting Height:
4.5 in
Phase Connection:
AC
Environmental Disclosure:
ENVPEP2206031EN
[Ue] Rated Operational Voltage:
600 V AC 50/60 Hz IEC 60947-3
Pollution Degree:
3 IEC 60947-1
Control Type:
toggle
Awg Gauge:
AWG 4...AWG 4/0 aluminium/copper terminal
Continuous Current Rating:
0.8
China Rohs Regulation:
Product out of China RoHS scope. Substance declaration for your information.
Breaking Capacity Code:
G
Electrical Connection:
I-Line connection, line || lugs, load
Line Rated Current:
150-150 A
Mercury Free:
Yes
Trip Unit Technology:
thermal-magnetic
Network Frequency:
50/60 Hz
Tightening Torque:
25-25 N.m 25-95 mm² (AWG 4...AWG 4/0)
Ambient Air Temperature For Operation:
-2-70 °C
Wire Stripping Length:
25 mm
Magnetic Tripping Current:
1750-1750 A
Product Certifications:
UL || CSA || NOM
[Ics] Rated Service Breaking Capacity:
65 kA 220/240 V AC 50/60 Hz IEC 60947-2 || 35 kA 380/440/415 V AC 50/60 Hz IEC 60947-2 || 18 kA 500/525 V AC 50/60 Hz IEC 60947-2 || 20 kA 250 V DC IEC 60947-2 || 20 kA 500 V DC IEC 60947-2
[Uimp] Rated Impulse Withstand Voltage:
8 kV IEC 60947-2
Warranty:
18 months
Reach Regulation:
Reference contains Substances of Very High Concern above the threshold
Width:
104 mm
Eu Rohs Directive:
Compliant with Exemptions
Suitability For Isolation:
yes IEC 60947-2
Standards:
UL || CSA || NEMA || NOM-003-SCFI-2000 || IEC 60947-2
California Proposition 65:
WARNING: This product can expose you to chemicals including: DINP, which is known to the State of California to cause cancer, and DIDP, which is known to the State of California to cause birth defects or other reproductive harm. For more information
Ambient Air Temperature For Storage:
-50-85 °C
Poles Description:
2P
Product Name:
PowerPact J
Operating Altitude:
< 6561.68 ft (2000 m) without derating || 5000 m with derating
Long Time Pick-Up Adjustment Range:
0.25...1 x In
Sustainable Offer Status:
Green Premium product
Height:
191 mm
Breaking Capacity:
65 kA 240 V AC 50/60 Hz UL 489 || 35 kA 480 V AC 50/60 Hz UL 489 || 18 kA 600 V AC 50/60 Hz UL 489 || 20 kA 250 V DC UL 489 || 20 kA 500 V DC UL 489
Mounting Mode:
I-Line bracket)
Mounting Support:
bracket
Depth:
86 mm
Protection Type:
overload protection || short-circuit protection
Quality Labels:
CE
Device Application:
distribution
Net Weight:
2.4 kg
Circuit Breaker Application:
HACR rated
Brochure:
View
Catalog:
View
Datasheet:
View
