Schneider Electric JGA262502 Molded Case Circuit Breaker 600V 250A
Schneider Electric
$4,463.00
(No reviews yet)
Write a Review
Write a Review
Schneider Electric

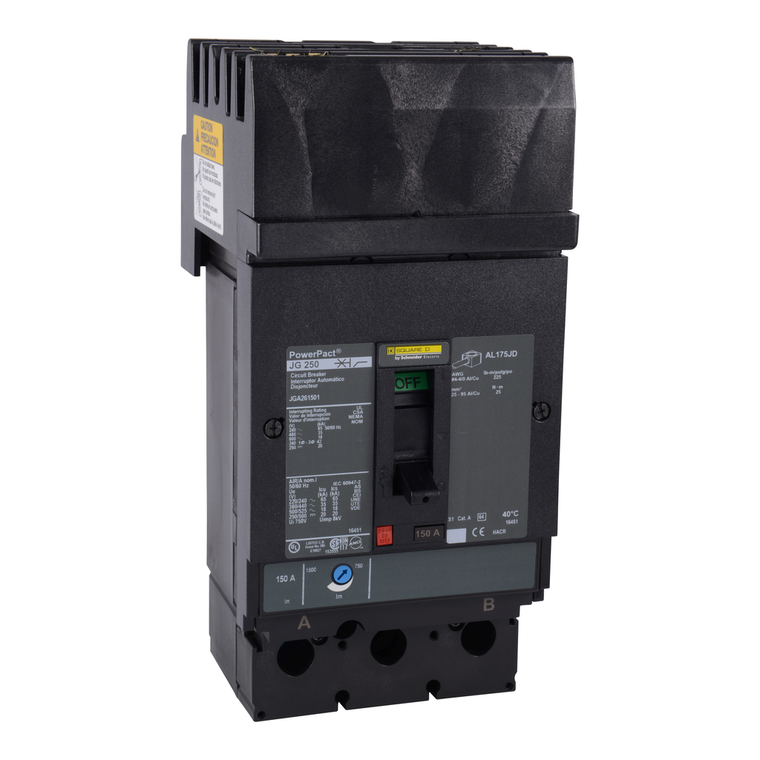

Schneider Electric JGA262502 Molded Case Circuit Breaker 600V 250A
$1200 Minimum Order for Non-stock Items or $60 Addl Schneider Handling Fee Applies
PowerPacT J-Frame circuit breakers are designed to protect electrical systems from damage caused by overloads and short circuits. PowerPacT J-Frame circuit breakers are available with either thermal magnetic or MicroLogic electronic trip protection units. This PowerPacT J-Frame circuit breaker provides thermal magnetic circuit protection with a breaking capacity of 18kA at 600VAC. All PowerPacT J-Frame circuit breakers are equipped with dual-break rotating contacts that reduce the amount of peak current during a short circuit fault. All PowerPacT circuit breakers have an integral push-to-trip button in the cover to manually trip the circuit breaker. PowerPacT J circuit breakers are available in 2 and 3-pole unit mount and I-Line constructions. PowerPacT J I-Line circuit breakers are available in I-Line construction for easy installation and removal in I-Line applications. This unit has I-Line terminations on the line side and mechanical lugs on the load side. This PowerPacT J, 250A, 2 pole, circuit breaker has a breaking capacity of 18kA at 600VAC. This circuit breaker has a continuous current rating of 80% with an AC phase connection. PowerPacT J circuit breakers comply to UL, CSA, NOM, and IEC standards and are CE marked.
- Tightening Torque:
- 25-25 N.m 95-185 mm² (AWG 3/0...350 kcmil)
- Phase Connection:
- AC
- Magnetic Tripping Current:
- 2500-2500 A
- Line Rated Current:
- 250-250 A
- Utilisation Category:
- category A
- Awg Gauge:
- AWG 3/0...350 kcmil aluminium/copper terminals
- Ambient Air Temperature For Operation:
- -2-70 °C
- Mounting Height:
- 4.5 in
- Operating Altitude:
- < 6561.68 ft (2000 m) without derating || 5000 m with derating
- [Ics] Rated Service Breaking Capacity:
- 65 kA 220/240 V AC 50/60 Hz IEC 60947-2 || 35 kA 380/440/415 V AC 50/60 Hz IEC 60947-2 || 18 kA 500/525 V AC 50/60 Hz IEC 60947-2 || 20 kA 250 V DC IEC 60947-2 || 20 kA 500 V DC IEC 60947-2
- Wire Stripping Length:
- 25 mm
- Mounting Support:
- bracket
- Product Name:
- PowerPact J
- [Uimp] Rated Impulse Withstand Voltage:
- 8 kV IEC 60947-2
- Protection Type:
- overload protection || short-circuit protection
- Ip Degree Of Protection:
- front cover IP40
- Product Or Component Type:
- circuit breaker
- Trip Unit Technology:
- thermal-magnetic
- Warranty:
- 18 months
- Ambient Air Temperature For Storage:
- -50-85 °C
- Depth:
- 86 mm
- Circularity Profile:
- ENVEOLI2206031EN
- Suitability For Isolation:
- yes IEC 60947-2
- Network Frequency:
- 50/60 Hz
- Standards:
- UL || CSA || NEMA || NOM-003-SCFI-2000 || IEC 60947-2
- Magnetic Hold Current:
- 1250 A
- Width:
- 104 mm
- California Proposition 65:
- WARNING: This product can expose you to chemicals including: DINP, which is known to the State of California to cause cancer, and DIDP, which is known to the State of California to cause birth defects or other reproductive harm. For more information
- Continuous Current Rating:
- 0.8
- [Ui] Rated Insulation Voltage:
- 750 V IEC 60947-2
- Mercury Free:
- Yes
- Reach Regulation:
- Reference contains Substances of Very High Concern above the threshold
- Pollution Degree:
- 3 IEC 60947-1
- China Rohs Regulation:
- Product out of China RoHS scope. Substance declaration for your information.
- Mounting Mode:
- I-Line bracket)
- Product Certifications:
- UL || CSA || NOM
- Terminal Identifier:
- AL250JD
- Breaking Capacity Code:
- G
- Device Application:
- distribution
- Circuit Breaker Application:
- HACR rated
- Long Time Pick-Up Adjustment Range:
- 0.25...1 x In
- Range:
- PowerPact
- Eu Rohs Directive:
- Compliant with Exemptions
- Number Of Slots:
- 2 auxiliary switch OF plug-in) || 1 alarm switch SD plug-in) || 1 overcurrent trip switch SDE plug-in) || 1 voltage release MN or MX plug-in)
- Environmental Disclosure:
- ENVPEP2206031EN
- Local Signalling:
- switched off (OFF) 1 trip indicator green)
- Control Type:
- toggle
- [Ue] Rated Operational Voltage:
- 600 V AC 50/60 Hz IEC 60947-3
- Communication Interface:
- Modbus || Ethernet
- Pvc Free:
- Yes
- Net Weight:
- 2.4 kg
- Rohs Exemption Information:
- Yes
- Quality Labels:
- CE
- Sustainable Offer Status:
- Green Premium product
- Electrical Connection:
- I-Line connection, line || lugs, load
- Poles Description:
- 2P
- Height:
- 191 mm
- Breaking Capacity:
- 65 kA 240 V AC 50/60 Hz UL 489 || 35 kA 480 V AC 50/60 Hz UL 489 || 18 kA 600 V AC 50/60 Hz UL 489 || 20 kA 250 V DC UL 489 || 20 kA 500 V DC UL 489
- Brochure:
- View
