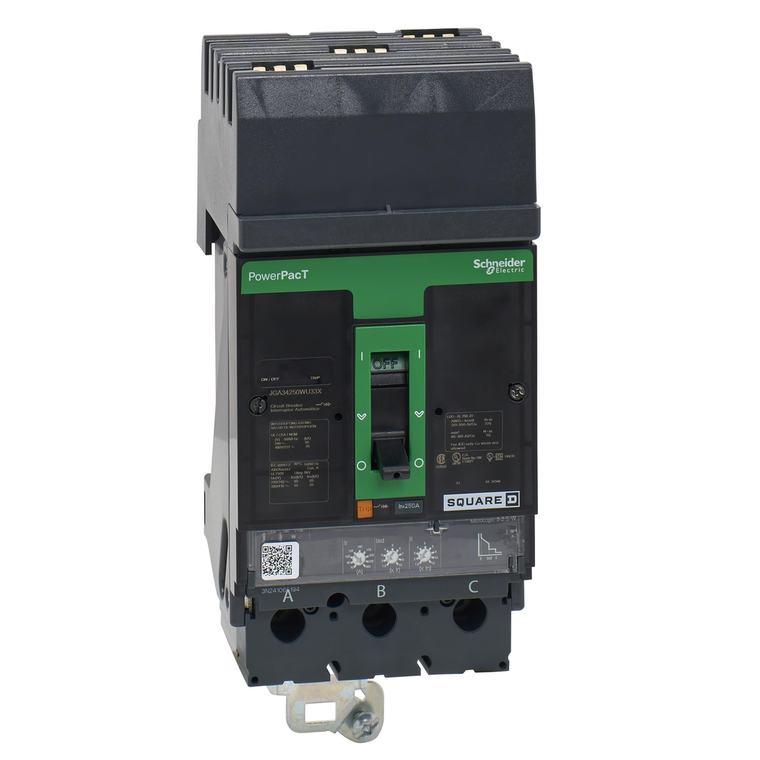

Schneider Electric JGA34250WU33X Molded Case Circuit Breaker 480V 250A

Schneider Electric JGA34250WU33X Molded Case Circuit Breaker 480V 250A

Schneider Electric
SKU:
JGA34250WU33X
|
UPC:
785901952374
Availability:
Contact us to confirm availability and lead times.
$5,169.00
Condition:
New
$1200 Minimum Order for Non-stock Items or $60 Addl Schneider Handling Fee Applies
Current Stock:
Description
PowerPacT J-Frame circuit breakers are designed to protect electrical systems from damage caused by overloads and short circuits. PowerPacT J-Frame circuit breakers are available with either thermal magnetic or MicroLogic electronic trip protection units. This PowerPacT J-Frame circuit breaker provides Micrologic Standard with a 3.2S trip unit and an LSI function with a breaking capacity of 35kA at 480VAC. All PowerPacT J-Frame circuit breakers are equipped with dual-break rotating contacts that reduce the amount of peak current during a short circuit fault. All PowerPacT circuit breakers have an integral push-to-trip button in the cover to manually trip the circuit breaker. PowerPacT J circuit breakers are available in 2 and 3-pole unit mount and I-Line constructions. PowerPacT J I-Line circuit breakers are available in I-Line construction for easy installation and removal in I-Line applications. This unit has I-Line terminations on the line side and mechanical lugs on the load side. This PowerPacT J, 250A, 3 pole, circuit breaker has a breaking capacity of 35kA at 480VAC. This circuit breaker has a continuous current rating of 80% with an ABC phase connection. PowerPacT J circuit breakers comply to UL, CSA, NOM, and IEC standards and are CE marked.
Additional Information
Local Signalling:
ready 1 LED green) || alarm 1 LED 90 % Ir orange) || alarm 1 LED 105 % Ir red) || switched off (OFF) 1 trip indicator green)
Breaking Capacity:
65 kA 240 V AC 50/60 Hz UL 489 || 35 kA 480 V AC 50/60 Hz UL 489 || 18 kA 600 V AC 50/60 Hz UL 489 || 20 kA 250 V DC UL 489 || 20 kA 500 V DC UL 489
Range:
PowerPact
China Rohs Regulation:
Product out of China RoHS scope. Substance declaration for your information.
Mounting Mode:
I-Line bracket)
Width:
104 mm
Mounting Support:
bracket
Mounting Height:
4.5 in
California Proposition 65:
WARNING: This product can expose you to chemicals including: DINP, which is known to the State of California to cause cancer, and DIDP, which is known to the State of California to cause birth defects or other reproductive harm. For more information
Standards:
UL || CSA || NEMA || NOM-003-SCFI-2000 || IEC 60947-2
[Ue] Rated Operational Voltage:
480/277 V AC 50/60 Hz IEC 60947-3
Device Application:
distribution
Breaking Capacity Code:
G
Electrical Connection:
I-Line connection, line || lugs, load
Network Frequency:
50/60 Hz
Height:
191 mm
Circularity Profile:
ENVEOLI1311009EN
Net Weight:
2.4 kg
Product Certifications:
UL || CSA || NOM
Rohs Exemption Information:
Yes
Suitability For Isolation:
yes IEC 60947-2
Long Time Pick-Up Adjustment Range:
0.25...1 x In
Protection Type:
overload protection || short-circuit protection
[Ui] Rated Insulation Voltage:
750 V IEC 60947-2
[Uimp] Rated Impulse Withstand Voltage:
8 kV IEC 60947-2
Poles Description:
3P
Environmental Disclosure:
ENVPEP1311009EN_V2
Line Rated Current:
250-250 A
Communication Interface:
Modbus || Ethernet
Pollution Degree:
3 IEC 60947-1
Sustainable Offer Status:
Green Premium product
Operating Altitude:
< 6561.68 ft (2000 m) without derating || 5000 m with derating
Pvc Free:
Yes
Product Name:
PowerPact J
Mercury Free:
Yes
Product Or Component Type:
circuit breaker
Control Type:
toggle
Quality Labels:
CE
Continuous Current Rating:
0.8
Ip Degree Of Protection:
front cover IP40
Eu Rohs Directive:
Compliant
[Ics] Rated Service Breaking Capacity:
65 kA 220/240 V AC 50/60 Hz IEC 60947-2 || 35 kA 380/440/415 V AC 50/60 Hz IEC 60947-2 || 18 kA 500/525 V AC 50/60 Hz IEC 60947-2 || 20 kA 250 V DC IEC 60947-2 || 20 kA 500 V DC IEC 60947-2
Circuit Breaker Application:
HACR rated
Terminal Identifier:
AL250JD
Wire Stripping Length:
25 mm
Ambient Air Temperature For Operation:
-2-70 °C
Depth:
86 mm
Trip Unit Technology:
electronic, standard, MicroLogic 3.2 S, LSI
Awg Gauge:
AWG 3/0...350 kcmil aluminium/copper terminals
Number Of Slots:
2 auxiliary switch OF plug-in) || 1 alarm switch SD plug-in) || 1 overcurrent trip switch SDE plug-in) || 1 voltage release MN or MX plug-in)
Ambient Air Temperature For Storage:
-50-85 °C
Tightening Torque:
25-25 N.m 95-185 mm² (AWG 3/0...350 kcmil)
Trip Unit Name:
MicroLogic 3.2 S
Utilisation Category:
category A
