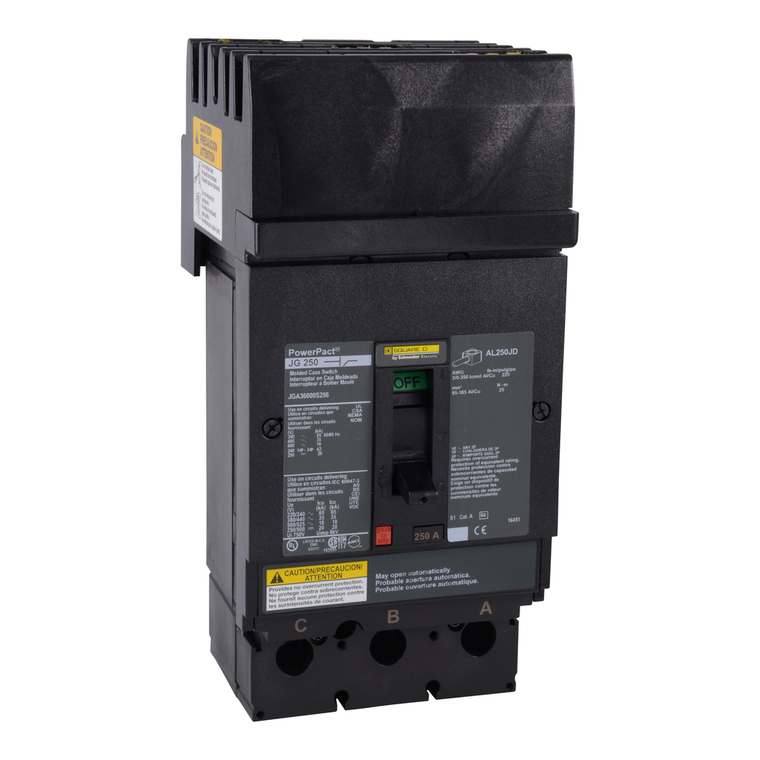

Schneider Electric JGA36000S25 Automatic Molded Case Switch 600V 250A

Schneider Electric JGA36000S25 Automatic Molded Case Switch 600V 250A

Schneider Electric
SKU:
JGA36000S25
|
UPC:
785901686927
Availability:
Contact us to confirm availability and lead times.
$3,600.00
Condition:
New
$1200 Minimum Order for Non-stock Items or $60 Addl Schneider Handling Fee Applies
Current Stock:
Description
PowerPacT J-Frame automatic switches are a disconnect device and can be used to open and close a circuit under normal operating conditions. The automatic switches are similar in construction, use the same accessories, and offer the same connection possibilities as the J-Frame circuit breaker version. The switches have a factory set, nonadjustable trip point calibrated to protect the molded case switch. The automatic switch can make and break its rated current. For an overload or a short circuit, it must be protected by an upstream device. PowerPacT J-Frame switches are available in unit mount, I-Line, plug-in, or drawout versions. This switch has I-Line terminations on the line side and mechanical lugs on the load side. This PowerPacT J, 250A, 3 pole, automatic switch has a short circuit withstand current rating of 18kA at 600VAC. It has an ABC phase connection. PowerPacT J automatic switches comply to UL and CSA standards.
Additional Information
Warranty:
18 months
Electrical Connection:
lugs, load || I-Line connection, line
Circularity Profile:
ENVEOLI2206031EN
Trip Unit Technology:
magnetic
Environmental Disclosure:
ENVPEP2206031EN
Depth:
5 in
Poles Description:
3P
California Proposition 65:
WARNING: This product can expose you to chemicals including: DINP, which is known to the State of California to cause cancer, and DIDP, which is known to the State of California to cause birth defects or other reproductive harm. For more information
Breaking Capacity Code:
G
Mounting Mode:
I-Line
Range Of Product:
PowerPact J
Height:
9.25 in
Line Rated Current:
250 A
Rohs Exemption Information:
Yes
Mercury Free:
Yes
Terminal Identifier:
AL250JD
Eu Rohs Directive:
Compliant with Exemptions
Awg Gauge:
x AWG 3/0...350 kcmil ( aluminium/copper )
Pvc Free:
Yes
Product Certifications:
CSA || CCC || UL Listed || IEC || NMX || CE
Magnetic Tripping Current:
3125-3125 A
China Rohs Regulation:
Product out of China RoHS scope. Substance declaration for your information.
Width:
4.5 in
Reach Regulation:
Reference contains Substances of Very High Concern above the threshold
Tightening Torque:
26-26 N.m 95-185 mm² (AWG 3/0...350 kcmil)
Sustainable Offer Status:
Green Premium product
Product Or Component Type:
automatic switch
Short-Circuit Withstand:
65 kA 240 V UL 489 || 35 kA 480 V UL 489 || 18 kA 600 V UL 489
[Ue] Rated Operational Voltage:
600 V AC || 250 V DC
