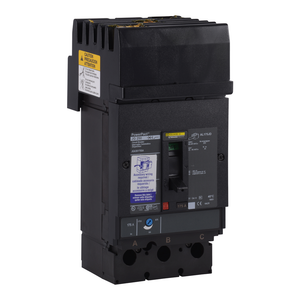

Schneider Electric JGA36225 Molded Case Circuit Breaker 600V 225A

Schneider Electric JGA36225 Molded Case Circuit Breaker 600V 225A

Schneider Electric
SKU:
JGA36225
|
UPC:
785901795841
Availability:
Contact us to confirm availability and lead times.
$3,968.00
Condition:
New
$1200 Minimum Order for Non-stock Items or $60 Addl Schneider Handling Fee Applies
Current Stock:
Description
PowerPacT J-Frame circuit breakers are designed to protect electrical systems from damage caused by overloads and short circuits. PowerPacT J-Frame circuit breakers are available with either thermal magnetic or MicroLogic electronic trip protection units. This PowerPacT J-Frame circuit breaker provides thermal magnetic circuit protection with a breaking capacity of 18kA at 600VAC. All PowerPacT J-Frame circuit breakers are equipped with dual-break rotating contacts that reduce the amount of peak current during a short circuit fault. All PowerPacT circuit breakers have an integral push-to-trip button in the cover to manually trip the circuit breaker. PowerPacT J circuit breakers are available in 2 and 3-pole unit mount and I-Line constructions. PowerPacT J I-Line circuit breakers are available in I-Line construction for easy installation and removal in I-Line applications. This unit has I-Line terminations on the line side and mechanical lugs on the load side. This PowerPacT J, 225A, 3 pole, circuit breaker has a breaking capacity of 18kA at 600VAC. This circuit breaker has a continuous current rating of 80% with an ABC phase connection. PowerPacT J circuit breakers comply to UL, CSA, NOM, and IEC standards and are CE marked.
Additional Information
[Ue] Rated Operational Voltage:
600 V AC 50/60 Hz IEC 60947-3
Mounting Support:
bracket
Electrical Connection:
I-Line connection, line || lugs, load
Magnetic Hold Current:
1125 A
Phase Connection:
ABC
Device Application:
distribution
[Uimp] Rated Impulse Withstand Voltage:
8 kV IEC 60947-2
Tightening Torque:
25-25 N.m 95-185 mm² (AWG 3/0...350 kcmil)
Quality Labels:
CE
Breaking Capacity Code:
G
Protection Type:
overload protection || short-circuit protection
Poles Description:
3P
Magnetic Tripping Current:
2250-2250 A
China Rohs Regulation:
Product out of China RoHS scope. Substance declaration for your information.
Mercury Free:
Yes
Long Time Pick-Up Adjustment Range:
0.25...1 x In
Net Weight:
2.4 kg
Mounting Height:
4.5 in
Pollution Degree:
3 IEC 60947-1
Product Name:
PowerPact J
[Ics] Rated Service Breaking Capacity:
65 kA 220/240 V AC 50/60 Hz IEC 60947-2 || 35 kA 380/440/415 V AC 50/60 Hz IEC 60947-2 || 18 kA 500/525 V AC 50/60 Hz IEC 60947-2 || 20 kA 250 V DC IEC 60947-2 || 20 kA 500 V DC IEC 60947-2
Standards:
UL || CSA || NEMA || NOM-003-SCFI-2000 || IEC 60947-2
Breaking Capacity:
65 kA 240 V AC 50/60 Hz UL 489 || 35 kA 480 V AC 50/60 Hz UL 489 || 18 kA 600 V AC 50/60 Hz UL 489 || 20 kA 250 V DC UL 489 || 20 kA 500 V DC UL 489
[Ui] Rated Insulation Voltage:
750 V IEC 60947-2
Reach Regulation:
Reference contains Substances of Very High Concern above the threshold
Suitability For Isolation:
yes IEC 60947-2
Ambient Air Temperature For Operation:
-2-70 °C
Range:
PowerPact
Pvc Free:
Yes
Sustainable Offer Status:
Green Premium product
Rohs Exemption Information:
Yes
Mounting Mode:
I-Line bracket)
Circuit Breaker Application:
HACR rated
Awg Gauge:
AWG 3/0...350 kcmil aluminium/copper terminals
Ambient Air Temperature For Storage:
-50-85 °C
Number Of Slots:
2 auxiliary switch OF plug-in) || 1 alarm switch SD plug-in) || 1 overcurrent trip switch SDE plug-in) || 1 voltage release MN or MX plug-in)
Control Type:
toggle
Utilisation Category:
category A
Communication Interface:
Modbus || Ethernet
Product Certifications:
UL || CSA || NOM
California Proposition 65:
WARNING: This product can expose you to chemicals including: DINP, which is known to the State of California to cause cancer, and DIDP, which is known to the State of California to cause birth defects or other reproductive harm. For more information
Operating Altitude:
< 6561.68 ft (2000 m) without derating || 5000 m with derating
Ip Degree Of Protection:
front cover IP40
Network Frequency:
50/60 Hz
Circularity Profile:
ENVEOLI2206031EN
Warranty:
18 months
Depth:
86 mm
Height:
191 mm
Continuous Current Rating:
0.8
Wire Stripping Length:
25 mm
Environmental Disclosure:
ENVPEP2206031EN
Product Or Component Type:
circuit breaker
Eu Rohs Directive:
Compliant with Exemptions
Terminal Identifier:
AL250JD
Local Signalling:
switched off (OFF) 1 trip indicator green)
Line Rated Current:
225-225 A
Trip Unit Technology:
thermal-magnetic
Width:
104 mm
