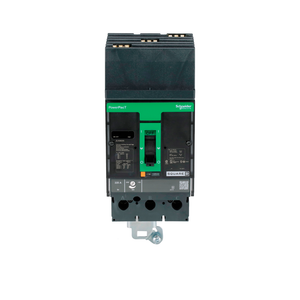

Schneider Electric JGA36225SA Molded Case Circuit Breaker 600V 225A

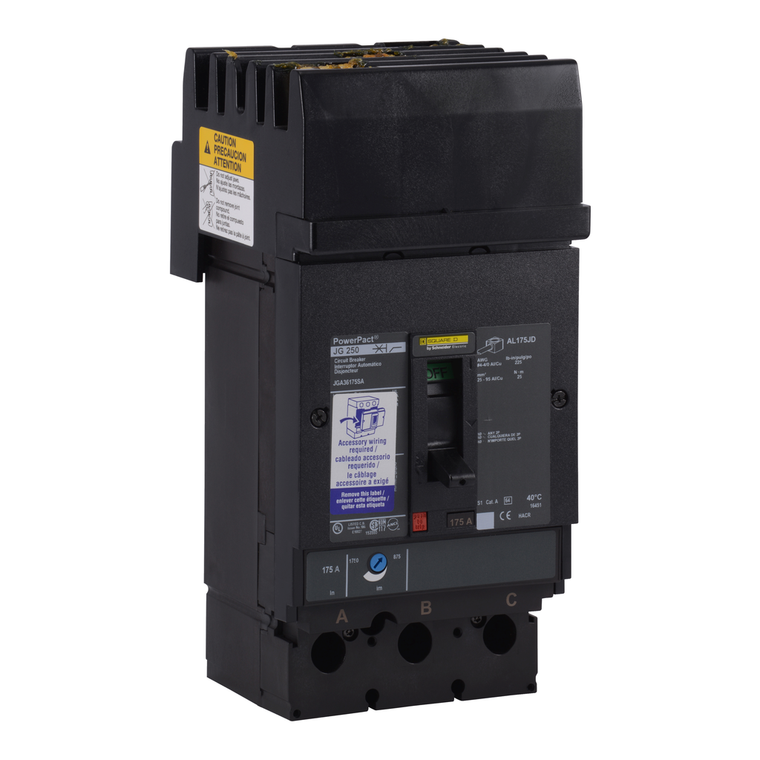

Schneider Electric JGA36225SA Molded Case Circuit Breaker 600V 225A

Schneider Electric
SKU:
JGA36225SA
|
UPC:
785901947172
Availability:
Factory stock
$2,985.99
Condition:
New
$1200 Minimum Order for Non-stock Items or $60 Addl Schneider Handling Fee Applies
Current Stock:
Description
PowerPacT J-Frame circuit breakers are designed to protect electrical systems from damage caused by overloads and short circuits. PowerPacT J-Frame circuit breakers are available with either thermal magnetic or MicroLogic electronic trip protection units. This PowerPacT J-Frame circuit breaker provides thermal magnetic circuit protection with a breaking capacity of 18kA at 600VAC. All PowerPacT J-Frame circuit breakers are equipped with dual-break rotating contacts that reduce the amount of peak current during a short circuit fault. All PowerPacT circuit breakers have an integral push-to-trip button in the cover to manually trip the circuit breaker. PowerPacT J circuit breakers are available in 2 and 3-pole unit mount and I-Line constructions. PowerPacT J I-Line circuit breakers are available in I-Line construction for easy installation and removal in I-Line applications. This unit has I-Line terminations on the line side and mechanical lugs on the load side. This PowerPacT J, 225A, 3 pole, circuit breaker has a breaking capacity of 18kA at 600VAC. This circuit breaker has a continuous current rating of 80% with an ABC phase connection. This unit includes a factory installed 120VAC shunt trip. PowerPacT J circuit breakers comply to UL, CSA, NOM, and IEC standards and are CE marked.
Additional Information
Terminal Identifier:
AL250JD
Accessory / Separate Part Type:
shunt trip 110...130 V AC compartment
Awg Gauge:
AWG 3/0...350 kcmil aluminium/copper terminals
Mounting Mode:
I-Line bracket)
[Ui] Rated Insulation Voltage:
750 V IEC 60947-2
Height:
191 mm
Range:
PowerPact
Warranty:
18 months
Ip Degree Of Protection:
front cover IP40
Utilisation Category:
category A
Mercury Free:
Yes
Long Time Pick-Up Adjustment Range:
0.25...1 x In
Network Frequency:
50/60 Hz
[Ics] Rated Service Breaking Capacity:
65 kA 220/240 V AC 50/60 Hz IEC 60947-2 || 35 kA 380/440/415 V AC 50/60 Hz IEC 60947-2 || 18 kA 500/525 V AC 50/60 Hz IEC 60947-2 || 20 kA 250 V DC IEC 60947-2 || 20 kA 500 V DC IEC 60947-2
Pollution Degree:
3 IEC 60947-1
China Rohs Regulation:
Product out of China RoHS scope. Substance declaration for your information.
[Uimp] Rated Impulse Withstand Voltage:
8 kV IEC 60947-2
Control Type:
toggle
Product Or Component Type:
circuit breaker
Eu Rohs Directive:
Compliant with Exemptions
Wire Stripping Length:
25 mm
Rohs Exemption Information:
Yes
Suitability For Isolation:
yes IEC 60947-2
Quality Labels:
CE
Mounting Height:
4.5 in
Tightening Torque:
25-25 N.m 95-185 mm² (AWG 3/0...350 kcmil)
Product Name:
PowerPact J
Ambient Air Temperature For Storage:
-50-85 °C
Ambient Air Temperature For Operation:
-2-70 °C
Standards:
UL || CSA || NEMA || NOM-003-SCFI-2000 || IEC 60947-2
Net Weight:
2.4 kg
Magnetic Hold Current:
1125 A
Electrical Connection:
I-Line connection, line || lugs, load
Local Signalling:
switched off (OFF) 1 trip indicator green)
Number Of Slots:
2 auxiliary switch OF plug-in) || 1 alarm switch SD plug-in) || 1 overcurrent trip switch SDE plug-in) || 1 voltage release MN or MX plug-in)
Width:
104 mm
Poles Description:
3P
Pvc Free:
Yes
Continuous Current Rating:
0.8
Reach Regulation:
Reference contains Substances of Very High Concern above the threshold
Communication Interface:
Modbus || Ethernet
Trip Unit Technology:
thermal-magnetic
Magnetic Tripping Current:
2250-2250 A
Line Rated Current:
225-225 A
Breaking Capacity:
65 kA 240 V AC 50/60 Hz UL 489 || 35 kA 480 V AC 50/60 Hz UL 489 || 18 kA 600 V AC 50/60 Hz UL 489 || 20 kA 250 V DC UL 489 || 20 kA 500 V DC UL 489
Operating Altitude:
< 6561.68 ft (2000 m) without derating || 5000 m with derating
Circularity Profile:
ENVEOLI2206031EN
Mounting Support:
bracket
Product Certifications:
UL || CSA || NOM
Depth:
86 mm
California Proposition 65:
WARNING: This product can expose you to chemicals including: DINP, which is known to the State of California to cause cancer, and DIDP, which is known to the State of California to cause birth defects or other reproductive harm. For more information
Breaking Capacity Code:
G
Environmental Disclosure:
ENVPEP2206031EN
Circuit Breaker Application:
HACR rated
Protection Type:
overload protection || short-circuit protection
Sustainable Offer Status:
Green Premium product
Device Application:
distribution
[Ue] Rated Operational Voltage:
600 V AC 50/60 Hz IEC 60947-3
