Schneider Electric JGA36250 Molded Case Circuit Breaker 600V 250A

(No reviews yet) Write a Review

Write a Review

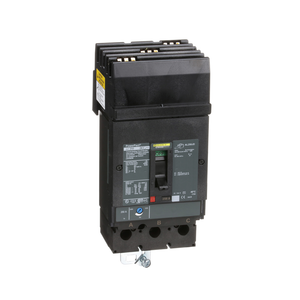

Schneider Electric JGA36250 Molded Case Circuit Breaker 600V 250A

Rating Required Select Rating 1 star (worst) 2 stars 3 stars (average) 4 stars 5 stars (best)

Name

Email Required

Review Subject Required

Comments Required

SKU:

JGA36250

UPC:

785901939139

MPN:

Condition:

New

Awg Gauge:

AWG 3/0...350 kcmil aluminium/copper terminals

[Ith] Conventional Free Air Thermal Current:

114-217 A

Width:

104 mm

Circularity Profile:

ENVEOLI2206031EN

Control Type:

toggle

Suitability For Isolation:

yes IEC 60947-2

Wire Stripping Length:

25 mm

Product Or Component Type:

Motor Circuit Protector

Electrical Connection:

I-Line connection, line || lugs, load

Warranty:

18 months

Weee:

The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.

California Proposition 65:

WARNING: This product can expose you to chemicals including: DINP, which is known to the State of California to cause cancer, and DIDP, which is known to the State of California to cause birth defects or other reproductive harm. For more information

Mercury Free:

Yes

Line Rated Current:

250-250 A

Rohs Exemption Information:

Yes

[Ue] Rated Operational Voltage:

600 V AC 50/60 Hz IEC 60947-3

Product Certifications:

UL || CSA || NOM

Breaking Capacity:

65 kA 240 V AC 50/60 Hz UL 489 || 35 kA 480 V AC 50/60 Hz UL 489 || 18 kA 600 V AC 50/60 Hz UL 489 || 20 kA 250 V DC UL 489 || 20 kA 500 V DC UL 489

Device Application:

distribution

Terminal Identifier:

AL250JD

Operating Altitude:

< 6561.68 ft (2000 m) without derating || 5000 m with derating

Tightening Torque:

25-25 N.m 95-185 mm² (AWG 3/0...350 kcmil)

Pollution Degree:

3 IEC 60947-1

Magnetic Tripping Current:

2500-2500 A

Trip Unit Technology:

thermal-magnetic

Environmental Disclosure:

ENVPEP2206031EN

Standards:

UL || CSA || NEMA || NOM-003-SCFI-2000 || IEC 60947-2

Network Frequency:

50/60 Hz

[Uimp] Rated Impulse Withstand Voltage:

8 kV IEC 60947-2

Communication Interface:

Modbus || Ethernet

Phase Connection:

ABC

[Ics] Rated Service Breaking Capacity:

65 kA 220/240 V AC 50/60 Hz IEC 60947-2 || 35 kA 380/440/415 V AC 50/60 Hz IEC 60947-2 || 18 kA 500/525 V AC 50/60 Hz IEC 60947-2 || 20 kA 250 V DC IEC 60947-2 || 20 kA 500 V DC IEC 60947-2

Ambient Air Temperature For Operation:

-2-70 °C

Eu Rohs Directive:

Compliant with Exemptions

Reach Regulation:

Reference contains Substances of Very High Concern above the threshold

Depth:

86 mm

Sustainable Offer Status:

Green Premium product

Local Signalling:

switched off (OFF) 1 trip indicator green)

Number Of Slots:

2 auxiliary switch OF plug-in) || 1 alarm switch SD plug-in) || 1 overcurrent trip switch SDE plug-in) || 1 voltage release MN or MX plug-in)

Mounting Mode:

I-Line bracket)

Long Time Pick-Up Adjustment Range:

0.25...1 x In

Net Weight:

2.4 kg

Height:

191 mm

Product Name:

PowerPact J

Pvc Free:

Yes

China Rohs Regulation:

Product out of China RoHS scope. Substance declaration for your information.

Protection Type:

overload protection || short-circuit protection

Poles Description:

3P

[Ui] Rated Insulation Voltage:

750 V IEC 60947-2

Range:

PowerPact

Utilisation Category:

category A

Continuous Current Rating:

0.8

Ambient Air Temperature For Storage:

-50-85 °C

Mounting Support:

bracket

Mounting Height:

4.5 in

Magnetic Hold Current:

1250 A

Ip Degree Of Protection:

front cover IP40

Quality Labels:

CE

Breaking Capacity Code:

G
