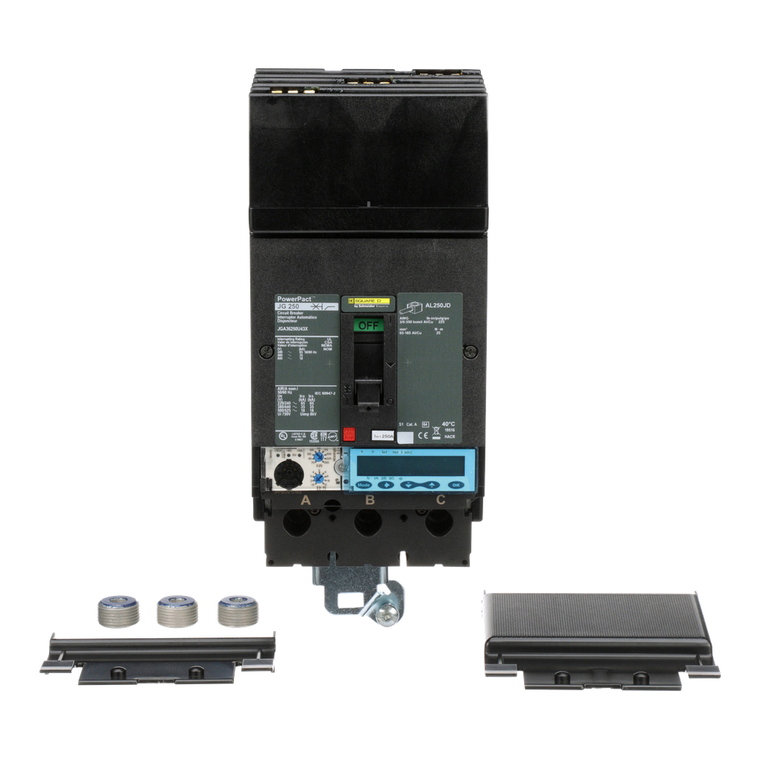

Schneider Electric JGA36250U43X Molded Case Circuit Breaker 600V 250A

Schneider Electric JGA36250U43X Molded Case Circuit Breaker 600V 250A

Schneider Electric
SKU:
JGA36250U43X
|
UPC:
785901147091
Availability:
Factory stock
$3,445.51
Condition:
New
$1200 Minimum Order for Non-stock Items or $60 Addl Schneider Handling Fee Applies
Current Stock:
Description
PowerPacT J-Frame circuit breakers are designed to protect electrical systems from damage caused by overloads and short circuits. PowerPacT J-Frame circuit breakers are available with either thermal magnetic or MicroLogic electronic trip protection units. This PowerPacT J-Frame circuit breaker provides Micrologic Ammeter with a 5.2A trip unit and an LSI function with a breaking capacity of 18kA at 600VAC. All PowerPacT J-Frame circuit breakers are equipped with dual-break rotating contacts that reduce the amount of peak current during a short circuit fault. All PowerPacT circuit breakers have an integral push-to-trip button in the cover to manually trip the circuit breaker. PowerPacT J circuit breakers are available in 2 and 3-pole unit mount and I-Line constructions. PowerPacT J I-Line circuit breakers are available in I-Line construction for easy installation and removal in I-Line applications. This unit has I-Line terminations on the line side and mechanical lugs on the load side. This PowerPacT J, 250A, 3 pole, circuit breaker has a breaking capacity of 18kA at 600VAC. This circuit breaker has a continuous current rating of 80% with an ABC phase connection. PowerPacT J circuit breakers comply to UL, CSA, NOM, and IEC standards and are CE marked.
Additional Information
Device Application:
distribution
Pollution Degree:
3 IEC 60947-1
Eu Rohs Directive:
Compliant with Exemptions
Ambient Air Temperature For Storage:
-50-85 °C
Mounting Support:
bracket
Mounting Mode:
I-Line bracket)
Warranty:
18 months
Electrical Connection:
I-Line connection, line || lugs, load
Long Time Pick-Up Adjustment Range:
0.25...1 x In
Width:
104 mm
Environmental Disclosure:
ENVPEP2206032EN
California Proposition 65:
WARNING: This product can expose you to chemicals including: DINP, which is known to the State of California to cause cancer, and DIDP, which is known to the State of California to cause birth defects or other reproductive harm. For more information
Utilisation Category:
category A
Rohs Exemption Information:
Yes
Depth:
86 mm
Continuous Current Rating:
0.8
Net Weight:
2.4 kg
Tightening Torque:
25-25 N.m 95-185 mm² (AWG 3/0...350 kcmil)
Number Of Slots:
2 auxiliary switch OF plug-in) || 1 alarm switch SD plug-in) || 1 overcurrent trip switch SDE plug-in) || 1 voltage release MN or MX plug-in)
Height:
191 mm
Sustainable Offer Status:
Green Premium product
Ambient Air Temperature For Operation:
-2-70 °C
Line Rated Current:
250-250 A
Trip Unit Technology:
electronic, ammeter, MicroLogic 5.2 A, LSI
Circularity Profile:
ENVEOLI2206032EN
Reach Regulation:
Reference contains Substances of Very High Concern above the threshold
Network Frequency:
50/60 Hz
Product Name:
PowerPact J
Mounting Height:
4.5 in
Protection Type:
overload protection || short-circuit protection
Awg Gauge:
AWG 3/0...350 kcmil aluminium/copper terminals
[Ui] Rated Insulation Voltage:
750 V IEC 60947-2
Local Signalling:
ready 1 LED green) || alarm 1 LED 90 % Ir orange) || alarm 1 LED 105 % Ir red) || switched off (OFF) 1 trip indicator green)
[Ics] Rated Service Breaking Capacity:
65 kA 220/240 V AC 50/60 Hz IEC 60947-2 || 35 kA 380/440/415 V AC 50/60 Hz IEC 60947-2 || 18 kA 500/525 V AC 50/60 Hz IEC 60947-2 || 20 kA 250 V DC IEC 60947-2 || 20 kA 500 V DC IEC 60947-2
[Uimp] Rated Impulse Withstand Voltage:
8 kV IEC 60947-2
Operating Altitude:
< 6561.68 ft (2000 m) without derating || 5000 m with derating
Control Type:
toggle
Breaking Capacity Code:
G
Range:
PowerPact
[Ue] Rated Operational Voltage:
600 V AC 50/60 Hz IEC 60947-3
Product Or Component Type:
Motor Circuit Protector
Mercury Free:
Yes
Pvc Free:
Yes
Poles Description:
3P
Communication Interface:
Modbus || Ethernet
Trip Unit Name:
MicroLogic 5.2 A
Breaking Capacity:
65 kA 240 V AC 50/60 Hz UL 489 || 35 kA 480 V AC 50/60 Hz UL 489 || 18 kA 600 V AC 50/60 Hz UL 489 || 20 kA 250 V DC UL 489 || 20 kA 500 V DC UL 489
China Rohs Regulation:
Product out of China RoHS scope. Substance declaration for your information.
Suitability For Isolation:
yes IEC 60947-2
Standards:
UL || CSA || NEMA || NOM-003-SCFI-2000 || IEC 60947-2
Product Certifications:
UL || CSA || NOM
Quality Labels:
CE
Ip Degree Of Protection:
front cover IP40
Terminal Identifier:
AL250JD
Wire Stripping Length:
25 mm
Brochure:
View
Catalog:
View
Datasheet:
View
