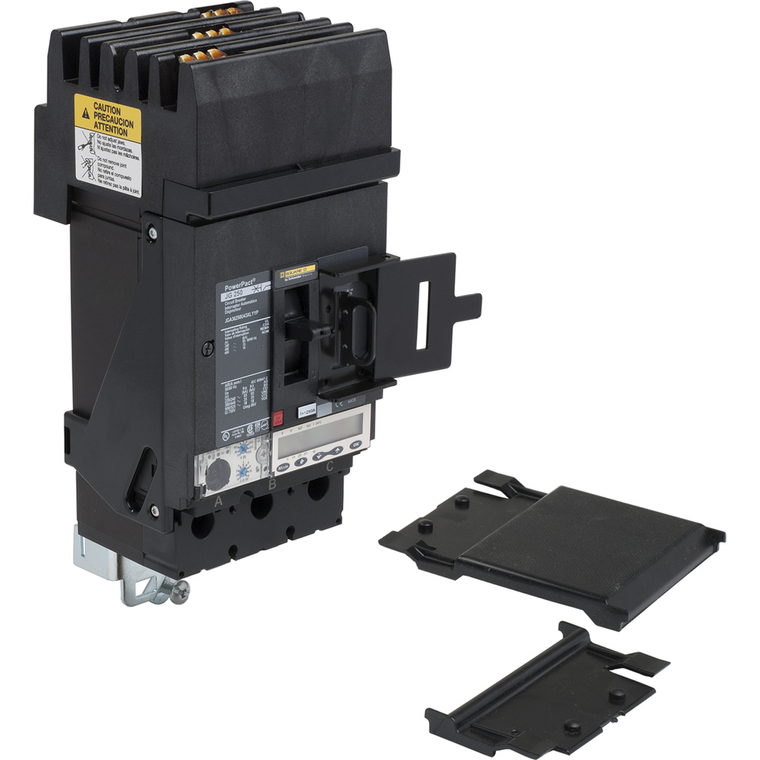

Schneider Electric JGA36250U43XLYYP Molded Case Circuit Breaker 600V 250A

Schneider Electric JGA36250U43XLYYP Molded Case Circuit Breaker 600V 250A

Schneider Electric
SKU:
JGA36250U43XLYYP
|
UPC:
785901087496
Availability:
Factory stock
$3,355.92
Condition:
New
$1200 Minimum Order for Non-stock Items or $60 Addl Schneider Handling Fee Applies
Current Stock:
Description
PowerPacT J-Frame circuit breakers are designed to protect electrical systems from damage caused by overloads and short circuits. PowerPacT J-Frame circuit breakers are available with either thermal magnetic or MicroLogic electronic trip protection units. This PowerPacT J-Frame circuit breaker provides Micrologic Ammeter with a 5.2A trip unit and an LSI function with a breaking capacity of 18kA at 600VAC. All PowerPacT J-Frame circuit breakers are equipped with dual-break rotating contacts that reduce the amount of peak current during a short circuit fault. All PowerPacT circuit breakers have an integral push-to-trip button in the cover to manually trip the circuit breaker. PowerPacT J circuit breakers are available in 2 and 3-pole unit mount and I-Line constructions. PowerPacT J I-Line circuit breakers are available in I-Line construction for easy installation and removal in I-Line applications. This unit has I-Line terminations on the line side and mechanical lugs on the load side. This PowerPacT J, 250A, 3 pole, circuit breaker has a breaking capacity of 18kA at 600VAC. This circuit breaker has a continuous current rating of 80% with an ABC phase connection. This unit has a handle padlock, On or Off. PowerPacT J circuit breakers comply to UL, CSA, NOM, and IEC standards and are CE marked.
Additional Information
Mounting Support:
bracket
[Ui] Rated Insulation Voltage:
750 V IEC 60947-2
Ip Degree Of Protection:
front cover IP40
Accessory / Separate Part Type:
padlocking device ON and OFF end || low amperage lug
Protection Type:
overload protection || short-circuit protection
Control Type:
toggle
Number Of Slots:
2 auxiliary switch OF plug-in) || 1 alarm switch SD plug-in) || 1 overcurrent trip switch SDE plug-in) || 1 voltage release MN or MX plug-in)
Height:
191 mm
Eu Rohs Directive:
Compliant
Local Signalling:
ready 1 LED green) || alarm 1 LED 90 % Ir orange) || alarm 1 LED 105 % Ir red) || switched off (OFF) 1 trip indicator green)
Range:
PowerPact
[Uimp] Rated Impulse Withstand Voltage:
8 kV IEC 60947-2
Standards:
UL || CSA || NEMA || NOM-003-SCFI-2000 || IEC 60947-2
Terminal Identifier:
AL250JD
Product Certifications:
UL || CSA || NOM
Wire Stripping Length:
25 mm
Trip Unit Technology:
electronic, ammeter, MicroLogic 5.2 A, LSI
Long Time Pick-Up Adjustment Range:
0.25...1 x In
Poles Description:
3P
Device Application:
distribution
Pvc Free:
Yes
Pollution Degree:
3 IEC 60947-1
Width:
104 mm
Product Or Component Type:
Motor Circuit Protector
Operating Altitude:
< 6561.68 ft (2000 m) without derating || 5000 m with derating
Product Name:
PowerPact J
Net Weight:
2.4 kg
Circularity Profile:
ENVEOLI1311009EN
Electrical Connection:
I-Line connection, line || lugs, load
Trip Unit Name:
MicroLogic 5.2 A
Network Frequency:
50/60 Hz
Mounting Mode:
I-Line bracket)
California Proposition 65:
WARNING: This product can expose you to chemicals including: DINP, which is known to the State of California to cause cancer, and DIDP, which is known to the State of California to cause birth defects or other reproductive harm. For more information
Utilisation Category:
category A
[Ics] Rated Service Breaking Capacity:
65 kA 220/240 V AC 50/60 Hz IEC 60947-2 || 35 kA 380/440/415 V AC 50/60 Hz IEC 60947-2 || 18 kA 500/525 V AC 50/60 Hz IEC 60947-2 || 20 kA 250 V DC IEC 60947-2 || 20 kA 500 V DC IEC 60947-2
Communication Interface:
Modbus || Ethernet
Ambient Air Temperature For Operation:
-2-70 °C
Quality Labels:
CE
Ambient Air Temperature For Storage:
-50-85 °C
Line Rated Current:
250-250 A
Continuous Current Rating:
0.8
Environmental Disclosure:
ENVPEP1311009EN_V2
[Ue] Rated Operational Voltage:
600 V AC 50/60 Hz IEC 60947-3
Awg Gauge:
AWG 3/0...350 kcmil aluminium/copper terminals
Rohs Exemption Information:
Yes
Breaking Capacity:
65 kA 240 V AC 50/60 Hz UL 489 || 35 kA 480 V AC 50/60 Hz UL 489 || 18 kA 600 V AC 50/60 Hz UL 489 || 20 kA 250 V DC UL 489 || 20 kA 500 V DC UL 489
Warranty:
18 months
Mounting Height:
4.5 in
Depth:
86 mm
Suitability For Isolation:
yes IEC 60947-2
Breaking Capacity Code:
G
China Rohs Regulation:
Product out of China RoHS scope. Substance declaration for your information.
Mercury Free:
Yes
Tightening Torque:
25-25 N.m 95-185 mm² (AWG 3/0...350 kcmil)
Sustainable Offer Status:
Green Premium product
Brochure:
View
Catalog:
View
Datasheet:
View
