Schneider Electric NJGF36150TW Molded Case Circuit Breaker 600V 150A
Schneider Electric

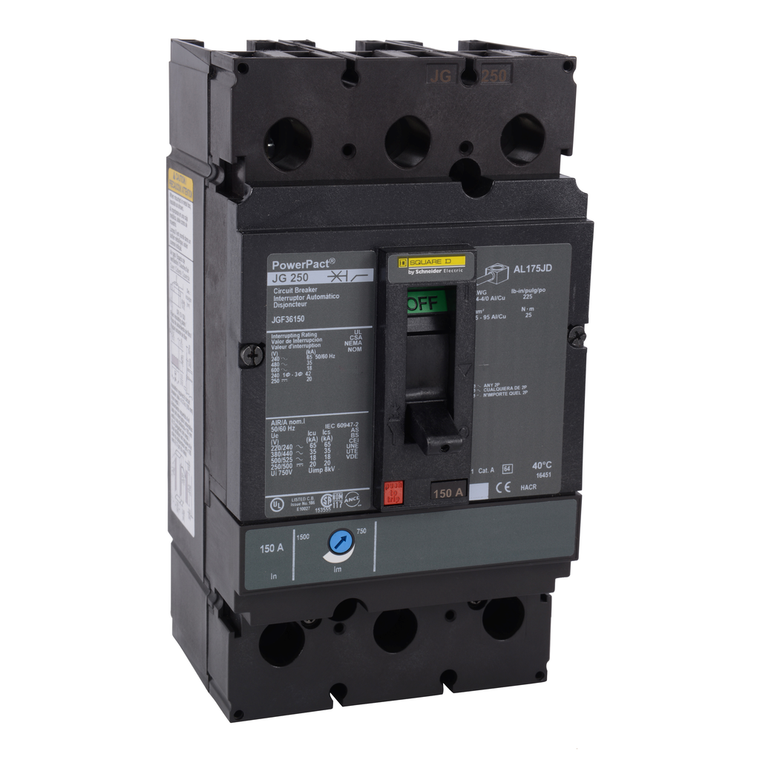

Schneider Electric JGF36150 Molded Case Circuit Breaker 600V 150A
Schneider Electric
$1200 Minimum Order for Non-stock Items or $60 Addl Schneider Handling Fee Applies
PowerPacT J-Frame circuit breakers are designed to protect electrical systems from damage caused by overloads and short circuits. PowerPacT J-Frame circuit breakers are available with either thermal magnetic or MicroLogic electronic trip protection units. This PowerPacT J-Frame circuit breaker provides thermal magnetic circuit protection with a breaking capacity of 18kA at 600VAC. All PowerPacT J-Frame circuit breakers are equipped with dual-break rotating contacts that reduce the amount of peak current during a short circuit fault. All PowerPacT circuit breakers have an integral push-to-trip button in the cover to manually trip the circuit breaker. PowerPacT J circuit breakers are available in 2 and 3-pole unit mount and I-Line constructions. This breaker has a busbar connection. This PowerPacT J, 150A, 3 pole, circuit breaker has a breaking capacity of 18kA at 600VAC. This circuit breaker has a continuous current rating of 80%. PowerPacT J circuit breakers comply to UL, CSA, NOM, and IEC standards and are CE marked.
- California Proposition 65:
- WARNING: This product can expose you to chemicals including: DINP, which is known to the State of California to cause cancer, and DIDP, which is known to the State of California to cause birth defects or other reproductive harm. For more information
- Operating Altitude:
- < 6561.68 ft (2000 m) without derating || 5000 m with derating
- Circuit Breaker Application:
- HACR rated
- Tightening Torque:
- 25-25 N.m 25-95 mm² (AWG 4...AWG 4/0)
- Suitability For Isolation:
- yes IEC 60947-2
- Range:
- PowerPact
- Communication Interface:
- Modbus || Ethernet
- Product Or Component Type:
- circuit breaker
- Awg Gauge:
- AWG 4...AWG 4/0 aluminium/copper terminal
- Control Type:
- toggle
- Ambient Air Temperature For Operation:
- -2-70 °C
- Circularity Profile:
- ENVEOLI2206031EN
- Pollution Degree:
- 3 IEC 60947-1
- Electrical Connection:
- busbar connection, line || busbar connection, load
- Number Of Slots:
- 2 auxiliary switch OF plug-in) || 1 alarm switch SD plug-in) || 1 overcurrent trip switch SDE plug-in) || 1 voltage release MN or MX plug-in)
- Rohs Exemption Information:
- Yes
- Poles Description:
- 3P
- Network Frequency:
- 50/60 Hz
- [Ui] Rated Insulation Voltage:
- 750 V IEC 60947-2
- Utilisation Category:
- category A
- Trip Unit Technology:
- thermal-magnetic
- Ip Degree Of Protection:
- front cover IP40
- [Ue] Rated Operational Voltage:
- 600 V AC 50/60 Hz IEC 60947-3
- [Ics] Rated Service Breaking Capacity:
- 65 kA 220/240 V AC 50/60 Hz IEC 60947-2 || 35 kA 380/440/415 V AC 50/60 Hz IEC 60947-2 || 18 kA 500/525 V AC 50/60 Hz IEC 60947-2 || 20 kA 250 V DC IEC 60947-2 || 20 kA 500 V DC IEC 60947-2
- Breaking Capacity Code:
- G
- Magnetic Hold Current:
- 750 A
- Magnetic Tripping Current:
- 1750-1750 A
- Height:
- 191 mm
- Wire Stripping Length:
- 25 mm
- Sustainable Offer Status:
- Green Premium product
- Environmental Disclosure:
- ENVPEP2206031EN
- Eu Rohs Directive:
- Compliant with Exemptions
- Breaking Capacity:
- 65 kA 240 V AC 50/60 Hz UL 489 || 35 kA 480 V AC 50/60 Hz UL 489 || 18 kA 600 V AC 50/60 Hz UL 489 || 20 kA 250 V DC UL 489 || 20 kA 500 V DC UL 489
- Line Rated Current:
- 150-150 A
- Continuous Current Rating:
- 0.8
- Standards:
- UL || CSA || NEMA || NOM-003-SCFI-2000 || IEC 60947-2
- Long Time Pick-Up Adjustment Range:
- 0.25...1 x In
- Mercury Free:
- Yes
- [Uimp] Rated Impulse Withstand Voltage:
- 8 kV IEC 60947-2
- Pvc Free:
- Yes
- Device Application:
- distribution
- Warranty:
- 18 months
- China Rohs Regulation:
- Product out of China RoHS scope. Substance declaration for your information.
- Local Signalling:
- switched off (OFF) 1 trip indicator green)
- Terminal Identifier:
- AL175JD
- Protection Type:
- overload protection || short-circuit protection
- Product Name:
- PowerPact J
- Mounting Mode:
- unit mount busbar)
- Net Weight:
- 2.4 kg
- Mounting Support:
- busbar
- Depth:
- 86 mm
- Reach Regulation:
- Reference contains Substances of Very High Concern above the threshold
- Product Certifications:
- UL || CSA || NOM
- Width:
- 104 mm
- Quality Labels:
- CE
- Ambient Air Temperature For Storage:
- -50-85 °C
- Brochure:
- View
- Catalog:
- View
- Datasheet:
- View
