Schneider Electric JGF36150UK Molded Case Circuit Breaker 600V 150A
Schneider Electric
$4,496.00
(No reviews yet)
Write a Review
Write a Review
Schneider Electric

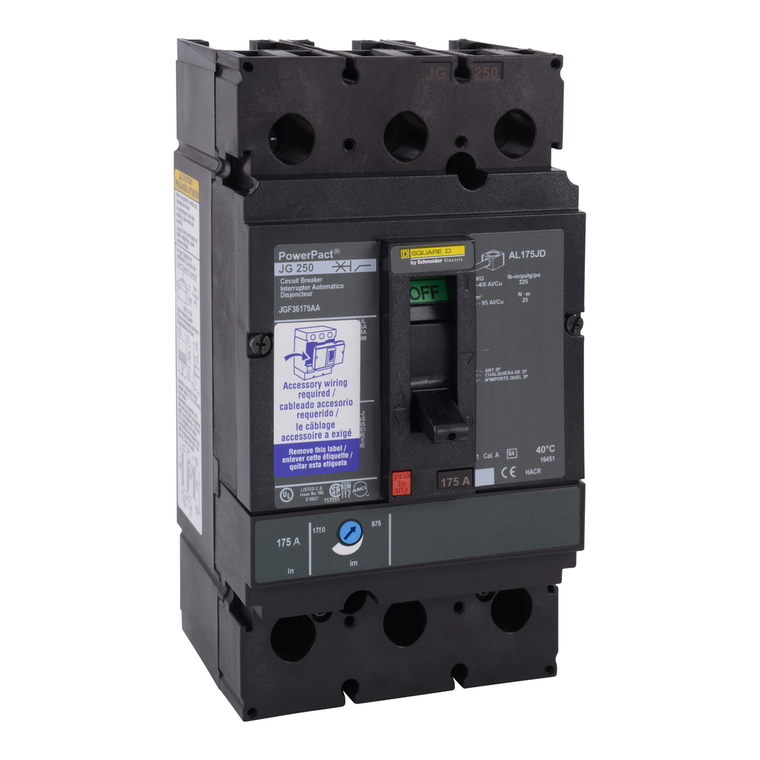

Schneider Electric JGF36150UK Molded Case Circuit Breaker 600V 150A
PowerPacT J-Frame circuit breakers are designed to protect electrical systems from damage caused by overloads and short circuits. PowerPacT J-Frame circuit breakers are available with either thermal magnetic or MicroLogic electronic trip protection units. This PowerPacT J-Frame circuit breaker provides thermal magnetic circuit protection with a breaking capacity of 18kA at 600VAC. All PowerPacT J-Frame circuit breakers are equipped with dual-break rotating contacts that reduce the amount of peak current during a short circuit fault. All PowerPacT circuit breakers have an integral push-to-trip button in the cover to manually trip the circuit breaker. PowerPacT J circuit breakers are available in 2 and 3-pole unit mount and I-Line constructions. This breaker has a busbar connection. This PowerPacT J, 150A, 3 pole, circuit breaker has a breaking capacity of 18kA at 600VAC. This circuit breaker has a continuous current rating of 80%. This unit includes a factory installed 24VAC undervoltage trip. PowerPacT J circuit breakers comply to UL, CSA, NOM, and IEC standards and are CE marked.
- [Ue] Rated Operational Voltage:
- 600 V AC 50/60 Hz IEC 60947-3
- Trip Unit Technology:
- thermal-magnetic
- Line Rated Current:
- 150-150 A
- Quality Labels:
- CE
- Product Name:
- PowerPact J
- Long Time Pick-Up Adjustment Range:
- 0.25...1 x In
- Magnetic Tripping Current:
- 1750-1750 A
- Terminal Identifier:
- AL175JD
- China Rohs Regulation:
- Product out of China RoHS scope. Substance declaration for your information.
- Utilisation Category:
- category A
- Breaking Capacity:
- 65 kA 240 V AC 50/60 Hz UL 489 || 35 kA 480 V AC 50/60 Hz UL 489 || 18 kA 600 V AC 50/60 Hz UL 489 || 20 kA 250 V DC UL 489 || 20 kA 500 V DC UL 489
- Width:
- 104 mm
- Circularity Profile:
- ENVEOLI2206031EN
- [Ui] Rated Insulation Voltage:
- 750 V IEC 60947-2
- Environmental Disclosure:
- ENVPEP2206031EN
- Pollution Degree:
- 3 IEC 60947-1
- Depth:
- 86 mm
- Operating Altitude:
- < 6561.68 ft (2000 m) without derating || 5000 m with derating
- Control Type:
- toggle
- Accessory / Separate Part Type:
- voltage release 24 V AC compartment
- Ambient Air Temperature For Operation:
- -2-70 °C
- Network Frequency:
- 50/60 Hz
- Tightening Torque:
- 25-25 N.m 25-95 mm² (AWG 4...AWG 4/0)
- California Proposition 65:
- WARNING: This product can expose you to chemicals including: DINP, which is known to the State of California to cause cancer, and DIDP, which is known to the State of California to cause birth defects or other reproductive harm. For more information
- Wire Stripping Length:
- 25 mm
- Breaking Capacity Code:
- G
- Awg Gauge:
- AWG 4...AWG 4/0 aluminium/copper terminal
- [Ics] Rated Service Breaking Capacity:
- 65 kA 220/240 V AC 50/60 Hz IEC 60947-2 || 35 kA 380/440/415 V AC 50/60 Hz IEC 60947-2 || 18 kA 500/525 V AC 50/60 Hz IEC 60947-2 || 20 kA 250 V DC IEC 60947-2 || 20 kA 500 V DC IEC 60947-2
- Electrical Connection:
- busbar connection, line || busbar connection, load
- Number Of Slots:
- 2 auxiliary switch OF plug-in) || 1 alarm switch SD plug-in) || 1 overcurrent trip switch SDE plug-in) || 1 voltage release MN or MX plug-in)
- Ip Degree Of Protection:
- front cover IP40
- Reach Regulation:
- Reference contains Substances of Very High Concern above the threshold
- Mounting Mode:
- unit mount busbar)
- Magnetic Hold Current:
- 750 A
- Protection Type:
- overload protection || short-circuit protection
- Product Or Component Type:
- circuit breaker
- Eu Rohs Directive:
- Compliant with Exemptions
- Communication Interface:
- Modbus || Ethernet
- Rohs Exemption Information:
- Yes
- Local Signalling:
- switched off (OFF) 1 trip indicator green)
- Standards:
- UL || CSA || NEMA || NOM-003-SCFI-2000 || IEC 60947-2
- [Uimp] Rated Impulse Withstand Voltage:
- 8 kV IEC 60947-2
- Device Application:
- distribution
- Range:
- PowerPact
- Mercury Free:
- Yes
- Suitability For Isolation:
- yes IEC 60947-2
- Height:
- 191 mm
- Circuit Breaker Application:
- HACR rated
- Mounting Support:
- busbar
- Net Weight:
- 2.4 kg
- Pvc Free:
- Yes
- Continuous Current Rating:
- 0.8
- Product Certifications:
- UL || CSA || NOM
- Poles Description:
- 3P
- Sustainable Offer Status:
- Green Premium product
- Ambient Air Temperature For Storage:
- -50-85 °C
