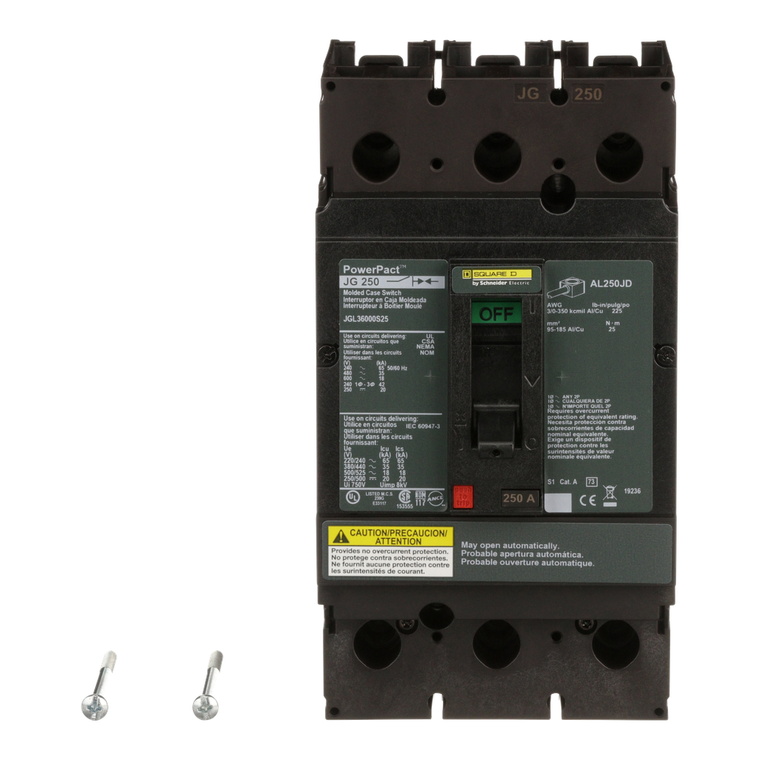

Schneider Electric JGL36000S25 Automatic Molded Case Switch 600V 250A

Schneider Electric JGL36000S25 Automatic Molded Case Switch 600V 250A

Schneider Electric
SKU:
JGL36000S25
|
UPC:
785901598862
Availability:
Contact us to confirm availability and lead times.
$2,286.00
Condition:
New
$1200 Minimum Order for Non-stock Items or $60 Addl Schneider Handling Fee Applies
Current Stock:
Description
PowerPacT J-Frame automatic switches are a disconnect device and can be used to open and close a circuit under normal operating conditions. The automatic switches are similar in construction, use the same accessories, and offer the same connection possibilities as the J-Frame circuit breaker version. The switches have a factory set, nonadjustable trip point calibrated to protect the molded case switch. The automatic switch can make and break its rated current. For an overload or a short circuit, it must be protected by an upstream device. PowerPacT J-Frame switches are available in unit mount, I-Line, plug-in, or drawout versions. This switch has lugs on both the line and load sides. This PowerPacT J, 250A, 3 pole, automatic switch has a short circuit withstand current rating of 18kA at 600VAC. PowerPacT J automatic switches comply to UL and CSA standards.
Additional Information
Trip Unit Technology:
magnetic
Reach Regulation:
Reference contains Substances of Very High Concern above the threshold
Range Of Product:
PowerPact J
Awg Gauge:
x AWG 3/0...350 kcmil ( aluminium/copper )
Depth:
4.5 in
Breaking Capacity Code:
G
Circularity Profile:
ENVEOLI2206031EN
Tightening Torque:
26-26 N.m 95-185 mm² (AWG 3/0...350 kcmil)
Mounting Mode:
unit mount
Eu Rohs Directive:
Compliant with Exemptions
Rohs Exemption Information:
Yes
Magnetic Tripping Current:
3125-3125 A
Sustainable Offer Status:
Green Premium product
Terminal Identifier:
AL250JD
Product Or Component Type:
automatic switch
Warranty:
18 months
Product Certifications:
CSA || UL Listed || CE || IEC || NMX || CCC
Mercury Free:
Yes
Short-Circuit Withstand:
65 kA 240 V UL 489 || 35 kA 480 V UL 489 || 18 kA 600 V UL 489
Pvc Free:
Yes
California Proposition 65:
WARNING: This product can expose you to chemicals including: DINP, which is known to the State of California to cause cancer, and DIDP, which is known to the State of California to cause birth defects or other reproductive harm. For more information
Line Rated Current:
250 A
[Ue] Rated Operational Voltage:
600 V AC || 250 V DC
Poles Description:
3P
China Rohs Regulation:
Product out of China RoHS scope. Substance declaration for your information.
Width:
4.12 in
Height:
7.52 in
Environmental Disclosure:
ENVPEP2206031EN
Electrical Connection:
lugs, line || lugs, load
