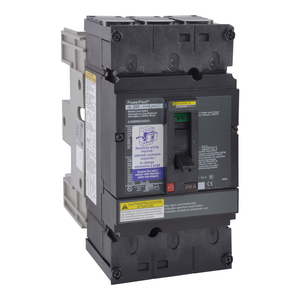

Schneider Electric JGL36000S25SA Automatic Molded Case Switch 600V 250A

Schneider Electric JGL36000S25SA Automatic Molded Case Switch 600V 250A

Schneider Electric
SKU:
JGL36000S25SA
|
UPC:
7.85901E+11
Availability:
Contact us to confirm availability and lead times.
$4,504.50
Condition:
New
$1200 Minimum Order for Non-stock Items or $60 Addl Schneider Handling Fee Applies
Current Stock:
Description
PowerPacT J-Frame automatic switches are a disconnect device and can be used to open and close a circuit under normal operating conditions. The automatic switches are similar in construction, use the same accessories, and offer the same connection possibilities as the J-Frame circuit breaker version. The switches have a factory set, nonadjustable trip point calibrated to protect the molded case switch. The automatic switch can make and break its rated current. For an overload or a short circuit, it must be protected by an upstream device. PowerPacT J-Frame switches are available in unit mount, I-Line, plug-in, or drawout versions. This switch has lugs on both the line and load sides. This PowerPacT J, 250A, 3 pole, automatic switch has a short circuit withstand current rating of 18kA at 600VAC. PowerPacT J automatic switches comply to UL, CSA, NMX, and IEC standards and are CE marked. This unit includes a factory installed 120VAC shunt trip.
Additional Information
Terminal Identifier:
AL250JD
Width:
4.12 in
Depth:
5 in
Breaking Capacity Code:
G
Rohs Exemption Information:
Yes
Product Or Component Type:
automatic switch
Mounting Mode:
unit mount
Warranty:
18 months
Circularity Profile:
ENVEOLI2206031EN
Magnetic Tripping Current:
3125-3125 A
California Proposition 65:
WARNING: This product can expose you to chemicals including: DINP, which is known to the State of California to cause cancer, and DIDP, which is known to the State of California to cause birth defects or other reproductive harm. For more information
Height:
7.52 in
Range Of Product:
PowerPact J
Electrical Connection:
lugs, line || lugs, load
Reach Regulation:
Reference contains Substances of Very High Concern above the threshold
Sustainable Offer Status:
Green Premium product
Pvc Free:
Yes
Trip Unit Technology:
magnetic
Tightening Torque:
26-26 N.m 95-185 mm² (AWG 3/0...350 kcmil)
[Ue] Rated Operational Voltage:
600 V AC || 250 V DC
Line Rated Current:
250 A
Environmental Disclosure:
ENVPEP2206031EN
Mercury Free:
Yes
Short-Circuit Withstand:
65 kA 240 V UL 489 || 35 kA 480 V UL 489 || 18 kA 600 V UL 489
Poles Description:
3P
Eu Rohs Directive:
Compliant with Exemptions
China Rohs Regulation:
Product out of China RoHS scope. Substance declaration for your information.
Product Certifications:
CE || UL Listed || CCC || CSA || NMX || IEC
Awg Gauge:
x AWG 3/0...350 kcmil ( aluminium/copper )
Accessory / Separate Part Type:
shunt trip 120 V DC
