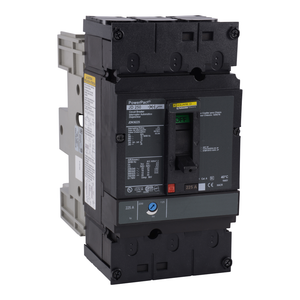

Schneider Electric JGL36225C Molded Case Circuit Breaker 600V 225A

Schneider Electric JGL36225C Molded Case Circuit Breaker 600V 225A

Schneider Electric
SKU:
JGL36225C
|
UPC:
785901668510
Availability:
Contact us to confirm availability and lead times.
$4,535.00
Condition:
New
$1200 Minimum Order for Non-stock Items or $60 Addl Schneider Handling Fee Applies
Current Stock:
Description
PowerPacT J-Frame circuit breakers are designed to protect electrical systems from damage caused by overloads and short circuits. PowerPacT J-Frame circuit breakers are available with either thermal magnetic or MicroLogic electronic trip protection units. This PowerPacT J-Frame circuit breaker provides thermal magnetic circuit protection with a breaking capacity of 18kA at 600VAC. All PowerPacT J-Frame circuit breakers are equipped with dual-break rotating contacts that reduce the amount of peak current during a short circuit fault. All PowerPacT circuit breakers have an integral push-to-trip button in the cover to manually trip the circuit breaker. PowerPacT J circuit breakers are available in 2 and 3-pole unit mount and I-Line constructions. This breaker has lugs on both the line and load sides. This PowerPacT J, 225A, 3 pole, circuit breaker has a breaking capacity of 18kA at 600VAC. This circuit breaker has a continuous current rating of 100%. PowerPacT J circuit breakers comply to UL, CSA, NOM, and IEC standards and are CE marked.
Additional Information
Standards:
UL || CSA || NEMA || NOM-003-SCFI-2000 || IEC 60947-2
Range:
PowerPact
Mounting Support:
lug
Magnetic Hold Current:
1125 A
Control Type:
toggle
Pvc Free:
Yes
Product Name:
PowerPact J
Trip Unit Technology:
thermal-magnetic
Circuit Breaker Application:
HACR rated
Awg Gauge:
AWG 3/0...350 kcmil aluminium/copper terminals
Device Application:
distribution
Product Or Component Type:
circuit breaker
Ip Degree Of Protection:
front cover IP40
California Proposition 65:
WARNING: This product can expose you to chemicals including: DINP, which is known to the State of California to cause cancer, and DIDP, which is known to the State of California to cause birth defects or other reproductive harm. For more information
Number Of Slots:
2 auxiliary switch OF plug-in) || 1 alarm switch SD plug-in) || 1 overcurrent trip switch SDE plug-in) || 1 voltage release MN or MX plug-in)
Utilisation Category:
category A
Height:
191 mm
Suitability For Isolation:
yes IEC 60947-2
Protection Type:
overload protection || short-circuit protection
Operating Altitude:
< 6561.68 ft (2000 m) without derating || 5000 m with derating
Ambient Air Temperature For Operation:
-2-70 °C
China Rohs Regulation:
Product out of China RoHS scope. Substance declaration for your information.
Poles Description:
3P
Depth:
86 mm
Rohs Exemption Information:
Yes
Breaking Capacity:
65 kA 240 V AC 50/60 Hz UL 489 || 35 kA 480 V AC 50/60 Hz UL 489 || 18 kA 600 V AC 50/60 Hz UL 489 || 20 kA 250 V DC UL 489 || 20 kA 500 V DC UL 489
Tightening Torque:
25-25 N.m 95-185 mm² (AWG 3/0...350 kcmil)
Width:
104 mm
Local Signalling:
switched off (OFF) 1 trip indicator green)
Net Weight:
2.4 kg
Electrical Connection:
lugs, line || lugs, load
Sustainable Offer Status:
Green Premium product
Continuous Current Rating:
1
Line Rated Current:
225-225 A
Long Time Pick-Up Adjustment Range:
0.25...1 x In
Ambient Air Temperature For Storage:
-50-85 °C
Eu Rohs Directive:
Compliant with Exemptions
Environmental Disclosure:
ENVPEP2206031EN
Circularity Profile:
ENVEOLI2206031EN
Wire Stripping Length:
25 mm
Mercury Free:
Yes
[Ics] Rated Service Breaking Capacity:
65 kA 220/240 V AC 50/60 Hz IEC 60947-2 || 35 kA 380/440/415 V AC 50/60 Hz IEC 60947-2 || 18 kA 500/525 V AC 50/60 Hz IEC 60947-2 || 20 kA 250 V DC IEC 60947-2 || 20 kA 500 V DC IEC 60947-2
[Ui] Rated Insulation Voltage:
750 V IEC 60947-2
Pollution Degree:
3 IEC 60947-1
[Uimp] Rated Impulse Withstand Voltage:
8 kV IEC 60947-2
Magnetic Tripping Current:
2250-2250 A
[Ue] Rated Operational Voltage:
600 V AC 50/60 Hz IEC 60947-3
Product Certifications:
UL || CSA || NOM
Mounting Mode:
unit mount lug)
Terminal Identifier:
AL250JD
Reach Regulation:
Reference contains Substances of Very High Concern above the threshold
Network Frequency:
50/60 Hz
Communication Interface:
Modbus || Ethernet
Warranty:
18 months
