Schneider Electric JGL37150D81 Molded Case Circuit Breaker 500Vdc 150A

(No reviews yet) Write a Review

Write a Review

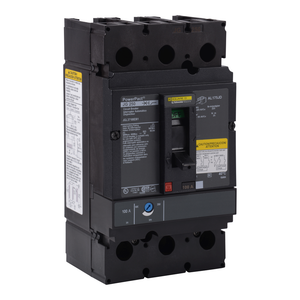

Schneider Electric JGL37150D81 Molded Case Circuit Breaker 500Vdc 150A

Rating Required Select Rating 1 star (worst) 2 stars 3 stars (average) 4 stars 5 stars (best)

Name

Email Required

Review Subject Required

Comments Required

SKU:

JGL37150D81

UPC:

7.85902E+11

MPN:

Condition:

New

Environmental Disclosure:

ENVPEP2206031EN

[Ui] Rated Insulation Voltage:

750 V IEC 60947-2

Ambient Air Temperature For Storage:

-50-85 °C

Product Certifications:

UL || CSA || NOM

Line Rated Current:

150-150 A

Quality Labels:

CE

Electrical Connection:

lugs, line || lugs, load

Mercury Free:

Yes

Tightening Torque:

25-25 N.m 25-95 mm² (AWG 4...AWG 4/0)

Breaking Capacity Code:

G

Local Signalling:

switched off (OFF) 1 trip indicator green)

Ambient Air Temperature For Operation:

-2-70 °C

Long Time Pick-Up Adjustment Range:

0.25...1 x In

Continuous Current Rating:

0.8

Mounting Support:

lug

Weee:

The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.

Suitability For Isolation:

yes IEC 60947-2

Ip Degree Of Protection:

front cover IP40

Standards:

UL || CSA || NEMA || NOM-003-SCFI-2000 || IEC 60947-2

Net Weight:

2.4 kg

[Uimp] Rated Impulse Withstand Voltage:

8 kV IEC 60947-2

[Ue] Rated Operational Voltage:

600 V AC 50/60 Hz IEC 60947-3

Trip Unit Technology:

thermal-magnetic

Warranty:

18 months

Magnetic Tripping Current:

350-600 A

Pvc Free:

Yes

Communication Interface:

Modbus || Ethernet

Width:

104 mm

Control Type:

toggle

Device Application:

distribution

Rohs Exemption Information:

Yes

California Proposition 65:

WARNING: This product can expose you to chemicals including: DINP, which is known to the State of California to cause cancer, and DIDP, which is known to the State of California to cause birth defects or other reproductive harm. For more information

Product Or Component Type:

circuit breaker

Sustainable Offer Status:

Green Premium product

[Ics] Rated Service Breaking Capacity:

65 kA 220/240 V AC 50/60 Hz IEC 60947-2 || 35 kA 380/440/415 V AC 50/60 Hz IEC 60947-2 || 18 kA 500/525 V AC 50/60 Hz IEC 60947-2 || 20 kA 250 V DC IEC 60947-2 || 20 kA 500 V DC IEC 60947-2

Circuit Breaker Application:

HACR rated

Height:

191 mm

Depth:

86 mm

Reach Regulation:

Reference contains Substances of Very High Concern above the threshold

Breaking Capacity:

65 kA 240 V AC 50/60 Hz UL 489 || 35 kA 480 V AC 50/60 Hz UL 489 || 18 kA 600 V AC 50/60 Hz UL 489 || 20 kA 250 V DC UL 489 || 20 kA 500 V DC UL 489

China Rohs Regulation:

Product out of China RoHS scope. Substance declaration for your information.

Protection Type:

overload protection || short-circuit protection

Product Name:

PowerPact J

Network Frequency:

50/60 Hz

Utilisation Category:

category A

Awg Gauge:

AWG 4...AWG 4/0 aluminium/copper terminal

Number Of Slots:

2 auxiliary switch OF plug-in) || 1 alarm switch SD plug-in) || 1 overcurrent trip switch SDE plug-in) || 1 voltage release MN or MX plug-in)

Range:

PowerPact

Wire Stripping Length:

25 mm

Mounting Mode:

unit mount lug)

Pollution Degree:

3 IEC 60947-1

Circularity Profile:

ENVEOLI2206031EN

Terminal Identifier:

AL175JD

Operating Altitude:

< 6561.68 ft (2000 m) without derating || 5000 m with derating

Eu Rohs Directive:

Compliant with Exemptions

Poles Description:

3P
