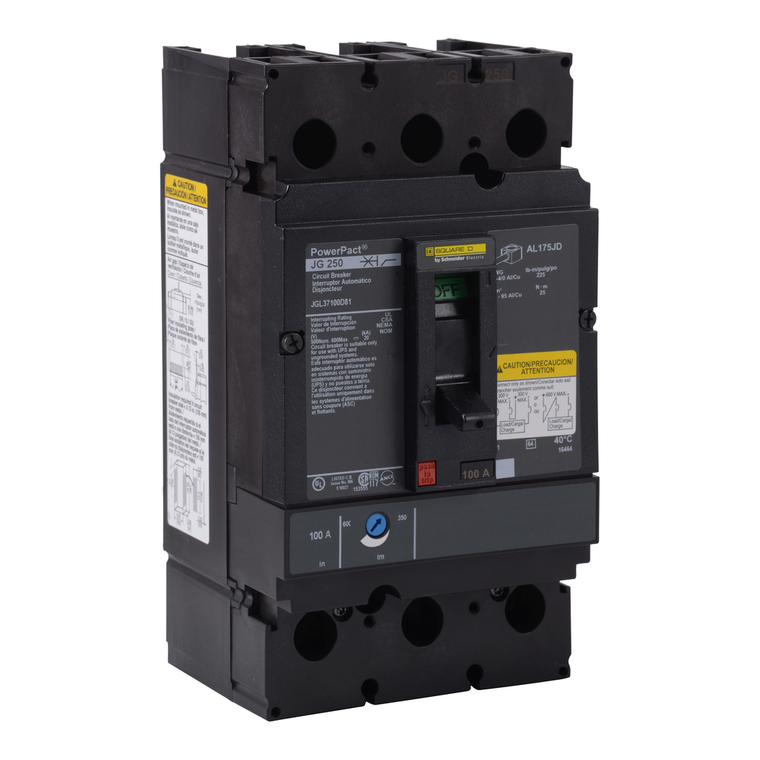

Schneider Electric JGL37200D82 Molded Case Circuit Breaker 500Vdc 200A

Schneider Electric JGL37200D82 Molded Case Circuit Breaker 500Vdc 200A

Schneider Electric
SKU:
JGL37200D82
|
UPC:
7.85901E+11
Availability:
Contact us to confirm availability and lead times.
$3,779.00
Condition:
New
$1200 Minimum Order for Non-stock Items or $60 Addl Schneider Handling Fee Applies
Current Stock:
Description
PowerPacT J-Frame circuit breakers are designed to protect electrical systems from damage caused by overloads and short circuits. PowerPacT J-Frame circuit breakers are available with either thermal magnetic or MicroLogic electronic trip protection units. This PowerPacT J-Frame circuit breaker provides thermal magnetic circuit protection with a breaking capacity of 20kA at 500VDC. All PowerPacT J-Frame circuit breakers are equipped with dual-break rotating contacts that reduce the amount of peak current during a short circuit fault. All PowerPacT circuit breakers have an integral push-to-trip button in the cover to manually trip the circuit breaker. PowerPacT J circuit breakers are available in 2 and 3-pole unit mount and I-Line constructions. This breaker has lugs on both the line and load sides. This PowerPacT J, 200A, 3 pole, circuit breaker has a breaking capacity of 20kA at 500VDC. This circuit breaker has a continuous current rating of 80%. PowerPacT J circuit breakers comply to UL, CSA, NOM, and IEC standards and are CE marked.
Additional Information
Product Name:
PowerPact J
Long Time Pick-Up Adjustment Range:
0.25...1 x In
Height:
191 mm
Local Signalling:
switched off (OFF) 1 trip indicator green)
Quality Labels:
CE
Reach Regulation:
Reference contains Substances of Very High Concern above the threshold
Wire Stripping Length:
25 mm
Trip Unit Technology:
thermal-magnetic
Awg Gauge:
AWG 3/0...350 kcmil aluminium/copper terminals
Accessory / Separate Part Type:
auxiliary switch 24 V AC/DC 1 NO + 1 NC cover frame
China Rohs Regulation:
Product out of China RoHS scope. Substance declaration for your information.
Number Of Slots:
2 auxiliary switch OF plug-in) || 1 alarm switch SD plug-in) || 1 overcurrent trip switch SDE plug-in) || 1 voltage release MN or MX plug-in)
Weee:
The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
Suitability For Isolation:
yes IEC 60947-2
Net Weight:
2.4 kg
California Proposition 65:
WARNING: This product can expose you to chemicals including: DINP, which is known to the State of California to cause cancer, and DIDP, which is known to the State of California to cause birth defects or other reproductive harm. For more information
Width:
104 mm
Ip Degree Of Protection:
front cover IP40
Poles Description:
3P
Mercury Free:
Yes
Terminal Identifier:
AL250JD
Continuous Current Rating:
0.8
Tightening Torque:
25-25 N.m 95-185 mm² (AWG 3/0...350 kcmil)
Mounting Support:
lug
Breaking Capacity Code:
G
Magnetic Tripping Current:
500-850 A
Sustainable Offer Status:
Green Premium product
[Ics] Rated Service Breaking Capacity:
65 kA 220/240 V AC 50/60 Hz IEC 60947-2 || 35 kA 380/440/415 V AC 50/60 Hz IEC 60947-2 || 18 kA 500/525 V AC 50/60 Hz IEC 60947-2 || 20 kA 250 V DC IEC 60947-2 || 20 kA 500 V DC IEC 60947-2
Network Frequency:
50/60 Hz
Ambient Air Temperature For Operation:
-2-70 °C
Rohs Exemption Information:
Yes
Environmental Disclosure:
ENVPEP2206031EN
Protection Type:
overload protection || short-circuit protection
Range:
PowerPact
Circularity Profile:
ENVEOLI2206031EN
[Uimp] Rated Impulse Withstand Voltage:
8 kV IEC 60947-2
Control Type:
toggle
Eu Rohs Directive:
Compliant with Exemptions
Mounting Mode:
unit mount lug)
Product Certifications:
UL || CSA || NOM
Operating Altitude:
< 6561.68 ft (2000 m) without derating || 5000 m with derating
Ambient Air Temperature For Storage:
-50-85 °C
Standards:
UL || CSA || NEMA || NOM-003-SCFI-2000 || IEC 60947-2
Pvc Free:
Yes
Device Application:
distribution
Communication Interface:
Modbus || Ethernet
[Ue] Rated Operational Voltage:
600 V AC 50/60 Hz IEC 60947-3
Depth:
86 mm
Breaking Capacity:
65 kA 240 V AC 50/60 Hz UL 489 || 35 kA 480 V AC 50/60 Hz UL 489 || 18 kA 600 V AC 50/60 Hz UL 489 || 20 kA 250 V DC UL 489 || 20 kA 500 V DC UL 489
Utilisation Category:
category A
Line Rated Current:
200-200 A
[Ui] Rated Insulation Voltage:
750 V IEC 60947-2
Electrical Connection:
lugs, line || lugs, load
Product Or Component Type:
Motor Circuit Protector
Pollution Degree:
3 IEC 60947-1
Warranty:
18 months
Brochure:
View
Catalog:
View
Datasheet:
View
